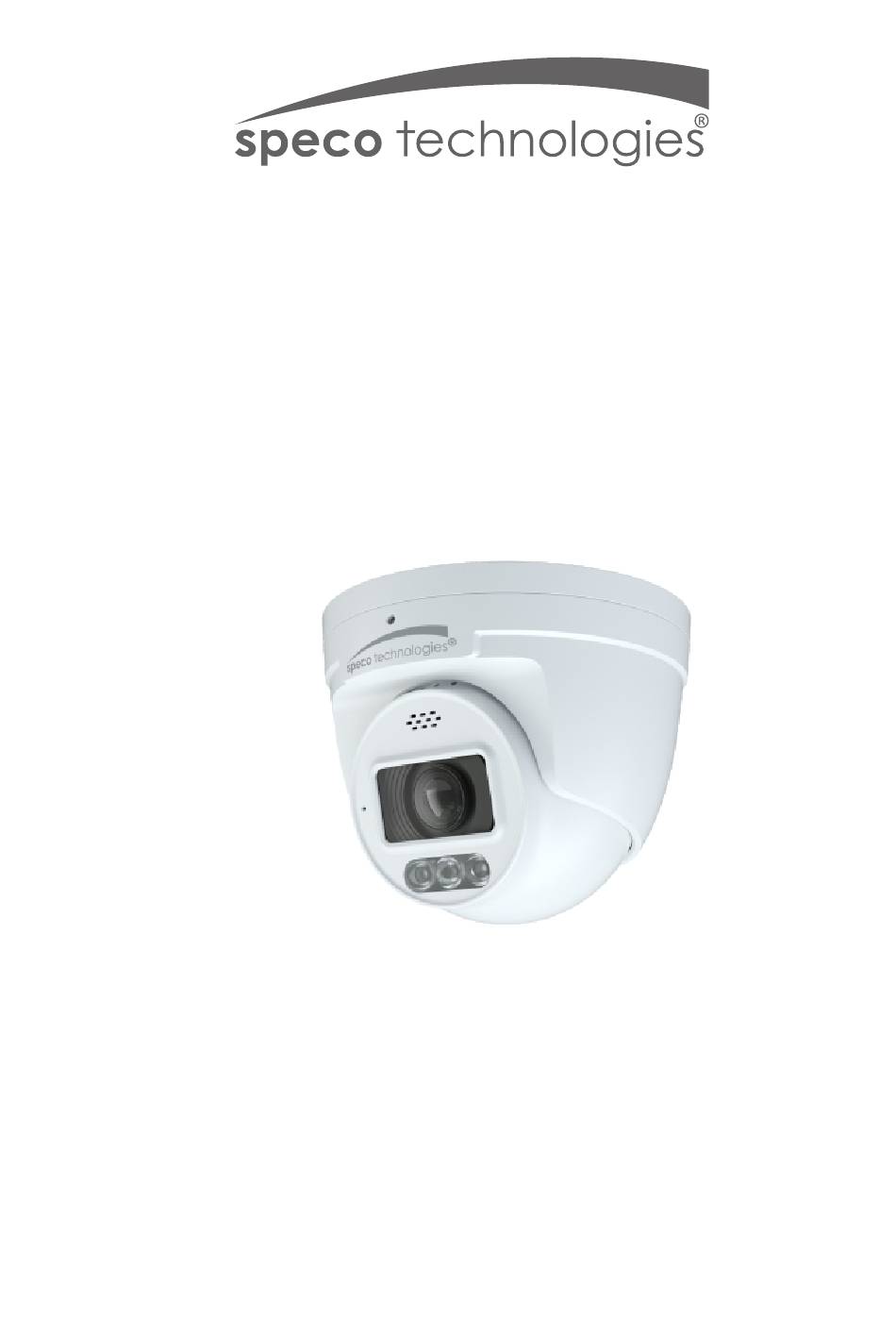

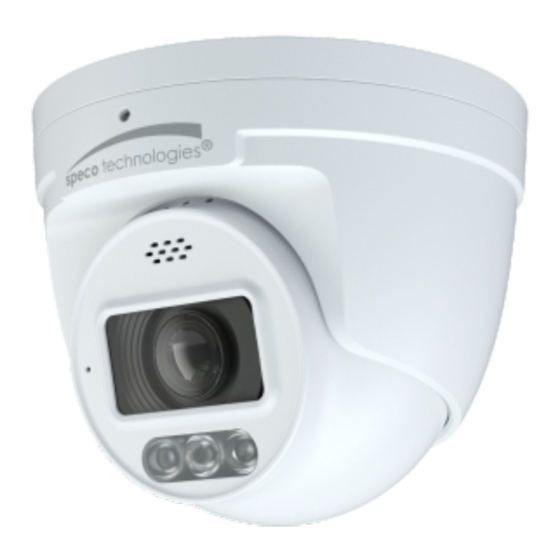

- Page 1 Quick Start Guide O4TDD2M...
- Page 2 This owner's manual is designed to be a reference tool for your system. Please read this manual carefully before operating the unit and retain it for future reference. Should you require any technical assistance, contact Speco Technologies Tech Support at 1-800-645-5516 Important Safeguards and Warning 1.
- Page 3 Technologies reserves the right to modify these without notice and without incurring any obligation. Speco Technologies is not liable for any loss caused by improper operation. Note: Before installation, check the package and make sure that all components are included.
- Page 4 Quick start guide Drill template Camera Screwdriver 3 Screws 4 Screws 3 Screws 4 Rubber o-rings Junction box (6.5×38mm) (PA 4×25mm) (PM 4×10mm) for screws 7 Plastic screw anchors Overview Overview Ethernet connector Audio input connector (MIC) Audio output connector (HP) Alarm input/output Power connector Speaker...
-
Page 5: Connecting Network Cable
External microphone 1--ALARM-COM 2--ALARM_OPEN 3--ALARM_INA 4--ALARM_GND DC12V * It is recommended to install the water-proof connector for outdoor installations. Connecting Network Cable ① Loosen the nut from the main element. ② Run the network cable (without RJ 45 connector) through both elements. -
Page 6: Installation
Installation * Before you start, please make sure that the wall or ceiling is strong enough to withstand three times the weight of the camera and the junction box. ① Open the mounting base and the upper cover of the junction box. Mounting base Upper cover ②... - Page 7 Loosen the set screw to disassemble the camera. Then remove ④ the cover from the camera unit to insert the SD card. After that, install the cover back to the camera unit and fix it firmly with the screws. (Note that the cover should not be installed unevenly .) Set Screw Insert a micro SD card Mounting Base...
- Page 8 ⑦ Adjust the camera to obtain an optimum angle. Before adjustment, preview the image of the camera on a monitor. After that, tighten the set screw to finish the installation. Set screw Web Operation and Login IP Scanner can search for the device on the local network.
- Page 9 ② Install IP Scanner from the CD and run it after installation.Or download from https://www.specotech.com/ip-scanner/ 5C:F2:07:34:68:9A O4TDD2M ③ In the device list, you can view the IP address, model number, and MAC address of each device. Select the applicable device and double click to open up the web viewer.
