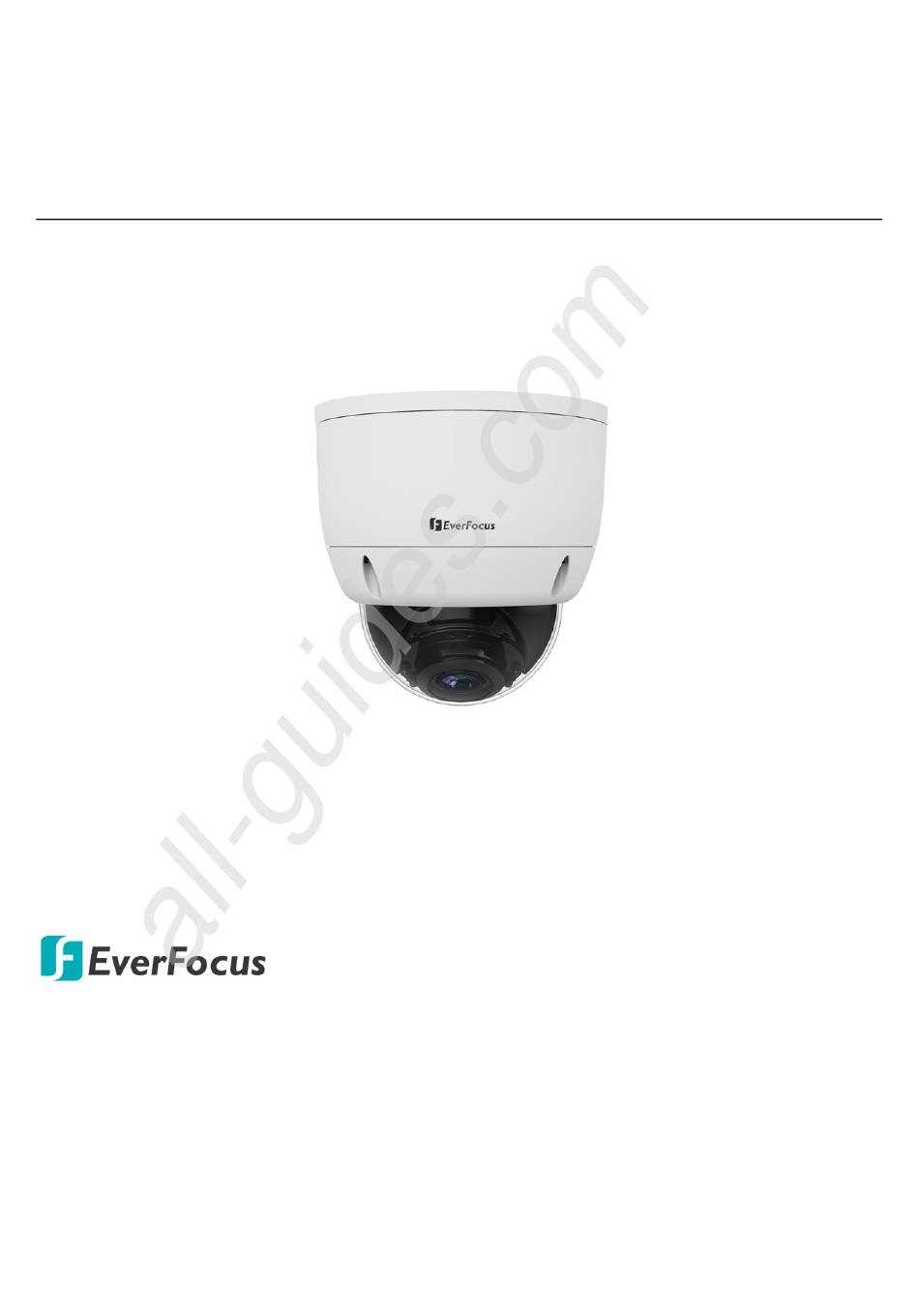

EHA2880 eZ.HD Series
8MP IP66 IR Dome Camera
User's Manual
Copyright © EverFocus Electronics Corp.
Release Date: September, 2019
All the images including product pictures or screen shots in this document are for example
only. The images may vary depending on the product and software version. Information
contained in this document is subject to change without notice.
EverFocus Taiwan:
2F., No.12, Ln. 270, Sec. 3, Beishen Rd., Shenkeng Dist., New Taipei City 222, Taiwan
TEL: +886 2 2662 2338 FAX: +886 2 2662 3632 www.everfocus.com.tw
Advertisement
Table of Contents
Related Manuals for EverFocus EHA2880 eZ.HD Series
Summary of Contents for EverFocus EHA2880 eZ.HD Series
- Page 1 The images may vary depending on the product and software version. Information contained in this document is subject to change without notice. EverFocus Taiwan: 2F., No.12, Ln. 270, Sec. 3, Beishen Rd., Shenkeng Dist., New Taipei City 222, Taiwan TEL: +886 2 2662 2338 FAX: +886 2 2662 3632 www.everfocus.com.tw...

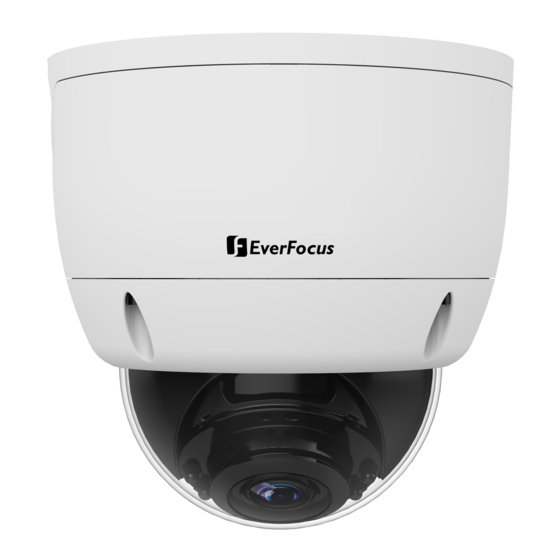

- Page 2 All manuals and user guides at all-guides.com 1. Introduction Equipped with a 8MP CMOS sensor, the EverFocus eZ.HD series cameras – EHA2880 deliver 8MP image quality. The model provides motorized 3.6-11mm lens with ICR. Featured with True Wide Dynamic Range (T-WDR), the camera can provide clear images even under backlight circumstances where intensity of illumination can vary excessively.
- Page 3 All manuals and user guides at all-guides.com 1.4 Optional Accessory Type Wall Mount Bracket Image Model BA-EB45 BA-EB28 BA-EB18 Color White / Metal White / Metal White / Metal Size 245x160x163mm 140x136x233mm 120x207x134mm (WxDxH) 9.65”x6.3”x6.42” 5.51”x5.35”x9.17” 4.72”x8.15”x5.28” Weight 2.1kg / 4.63lb 2.1kg / 4.63lb 1.1kg / 2.43lb Type...
- Page 4 All manuals and user guides at all-guides.com 2. To mount the camera to the surface: a. Remove the Base Plate from the camera. To do so, 1) Remove the Fix Screw 2) Slightly push the Base Plate backward from the Fix Screw side and then pull out the Base Plate.
- Page 5 All manuals and user guides at all-guides.com Base Plate Camera Body Fix Screw 3. Connect the Power Cable to a 12VDCpower source. Connect the Video Output Cable to a monitor or DVR. 4. You can use the Joystick on the cable to configure camera OSD settings. Remove the Protection Cap from the Joystick before using it.
- Page 6 All manuals and user guides at all-guides.com 3. Configuration in the OSD Menu No Main Sub Menu Sub Menu / Function AF Mode One Shot, Manual Motorized D&N Filter Sync On, Sync Off Initial Brightness 0-20 Auto Mode Normal / Deblur 1/30, 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000, Shutter...
- Page 7 All manuals and user guides at all-guides.com N>D Thres 0-20 Delay High, Middle, Low IR LED Adaptive, Off Anti-Sat. 0-20 Extern SW High, Low Extern D>N Thres 0-20 N>D Thres 0-20 Delay High, Middle, Low Auto Autoext Preset Color C-Temp 3000K, 5000K, 8000K Manual R-Gain...
- Page 8 All manuals and user guides at all-guides.com Trans Window Use Window Zone On, Off Det H-POS 0-96 Det Window Det V-POS 0-56 Det H-Size 0-96 Motion Det V-Size 0-56 Sensitivity 0-10 Motion OSD On, Off Text Alarm On, Off Signal Out On, Off Frame Rate 4K/15fps, 4MP/30fps, 1080p/30fps...
