- Page 1 FLYWOO Firefly baby quad VISTA HD V1.0 Firefly baby quad Manual VISTA HD BF Version...

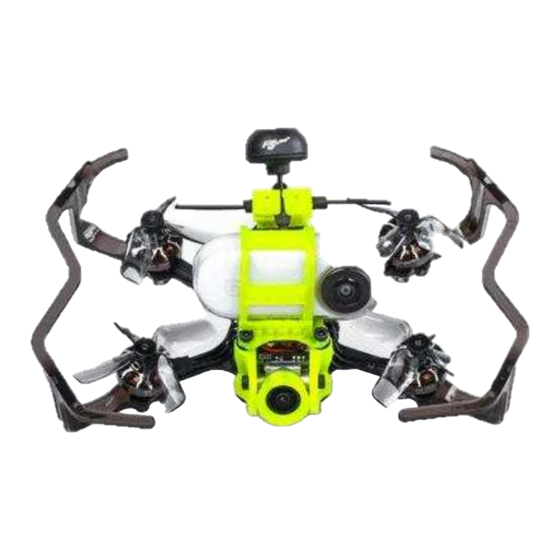

- Page 2 1/ drone introduction Review: Flywoo Baby Quad – Tiny Whoop Sized Drone Carrying GoPro In an effort to push the boundaries of carry the camera on the smallest platform, Flywoo designed the smallest quadcotper possible in their history. Firefly Baby Quad , a nano- sized fpv drone designed to carry Insta 360go ， SMO 4K camera for some action flying.
- Page 3 To keep minimizing weight and optimal performance, we modified Polar HD Nano kit to save 10g weight. Flywoo is exploring more possibilities in the ultralight field. . This kit also can support with DJI goggles. With DJI goggles, Users can choose 25mW/200mW/500mW/700mW from DJI goggle settings.
- Page 4 FLYWOO Firefly baby quad VISTA HD V1.0 PID and filter settings...
- Page 5 FLYWOO Firefly baby quad VISTA HD V1.0 UART1: TBS/R9M/XM+/DSMX/SBUS receiver UART2: NULL UART3: VISTA OSD TX/RX UART4: VISTA SBUS RX (Only use DJI remote control to turn on, and turn off RX1) UART5: NULL UART6: NULL UART7: NULL 3/ Receiver binding...
- Page 6 FLYWOO Firefly baby quad VISTA HD V1.0 for the third time, the LED light will start to double-flash, which means that the RX enters the binding mode - Insert the 2.4G ELRS TX to Radio transmitter, and choose External RF mode to CRSF protocol, then you can find ELRS menu from the Radio systems(Need to copy the ELRS.LUA file to the SD-Card tools first), Enter into ELRS and press [Bind], the LED on the...
- Page 7 FLYWOO Firefly baby quad VISTA HD V1.0 3/ To write the firmware of the R9MM receiver, you need to remove the R9MM receiver, and then write the firmware by connecting to the S.PORT port. 4/ After both R9M TX and R9MM RX are written into the ACCST firmware.
- Page 8 FLYWOO Firefly baby quad VISTA HD V1.0 3-1/ Then set the corresponding serial port and receiver protocol to ensure the normal output of each channel of the receiver. 4/ Mode setting: Set the ARM switch and flight mode switch, AUX* corresponds to the remote control...
- Page 9 FLYWOO Firefly baby quad VISTA HD V1.0 5/ Motor test: Unload the propeller, test the rotation direction of the motor, turn on the safety switch, and test the rotation of the motors one by one. 6/ VISTA activation and binding Tip: For the convenience of use, VISTA has been activated by default at the factory and updated to the latest version of the firmware.
- Page 10 FLYWOO Firefly baby quad VISTA HD V1.0 7/ Flight firmware upgrade and write default CLI 1/ Activate DFU mode 2/ BF Configurator will display to enter DFU mode. If it does not enter DFU mode, it may be that the driver is not installed. The driver can be installed using IMPULSE RC software Driver software: https://impulserc.blob.core.windows.net/utilities/ImpulseRC_Driver_Fixer.exe...
- Page 11 FLYWOO Firefly baby quad VISTA HD V1.0 4/ After the connection is entered, it is a blank interface, you need to write CLI commands, Factory CLI LINK: https://flywoo.net/pages/manual 5/ If the command is not restarted after writing the command, please write SAVE and...
- Page 12 FLYWOO Firefly baby quad VISTA HD V1.0 6/ Then all functions of FC return to normal.
