460 HORIZON DR. SUITE 400 | SUWANEE, GA 30024 | PHONE: 770-614-6101 | FAX: 770-614-6069 | info@omix-ada.com

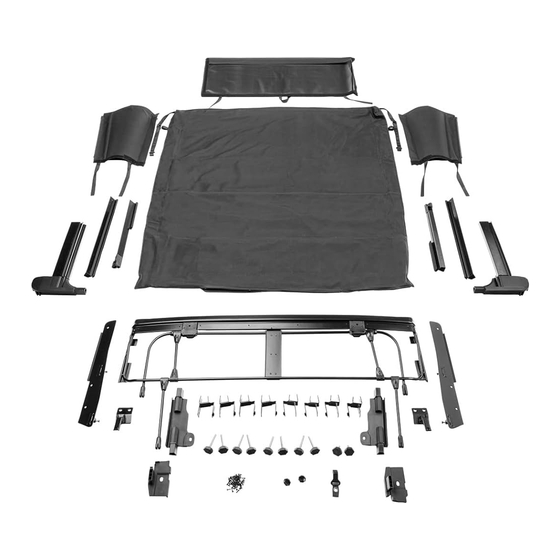

Voyager Top, Gladiator
5
10
9

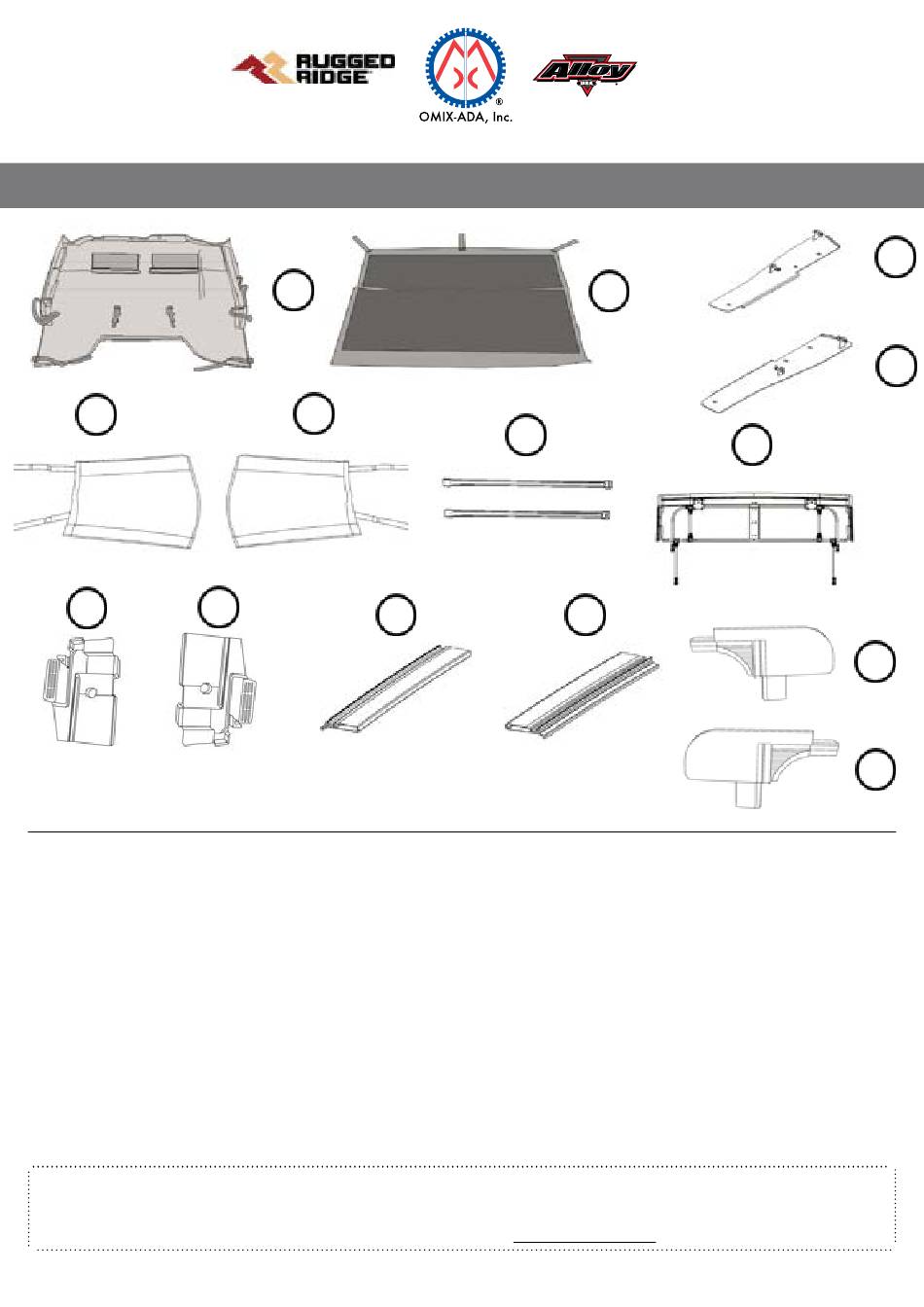

1. Voyager Main Deck..............................(1)
2. Rear Window..........................................(1)
3. LH Door Surround Mounting Plate........(1)
4. RH Door Surround Mounting Plate.......(1)
5. Left Side Panel.......................................(1)
6. Right Side Panel.....................................(1)
7. Anti-Puddle Pole....................................(2)
PHONE: M-F 8am - 5pm EST 1-800-449-6649 | EMAIL: techsupport@omix-ada.com
1
6
11
Components
OMIX-ADA
TECHNICAL SUPPORT
®
FOR WARRANTY INFORMATION VISIT: www.Omix-Ada.com
2
7
12
8. Flip Top Header Assembly.........................(1)
9. LH Upright Lower Plastic............................(1)
10. RH Upright Lower Plastic..........................(1)
11. LH Upright..................................................(1)
12. RH Upright.................................................(1)
13. LH Upper Corner Plastic..........................(1)
14. RH Upper Corner Plastic..........................(1)
Page 1/15
Part # 13595.14
3
4
8
13
14

Advertisement

loading
Need help?

Need help?

Do you have a question about the 13595.14 and is the answer not in the manual?

Questions and answers

Summary of Contents for Rugged Ridge 13595.14

  • Page 1 Page 1/15 Part # 13595.14 460 HORIZON DR. SUITE 400 | SUWANEE, GA 30024 | PHONE: 770-614-6101 | FAX: 770-614-6069 | info@omix-ada.com Voyager Top, Gladiator Components 8. Flip Top Header Assembly......(1) 1. Voyager Main Deck......(1) 9. LH Upright Lower Plastic......(1) 2.
  • Page 2 Page 2/15 Part # 13595.14 460 HORIZON DR. SUITE 400 | SUWANEE, GA 30024 | PHONE: 770-614-6101 | FAX: 770-614-6069 | info@omix-ada.com Voyager Top, Gladiator Components 1. LH Front Plastic Adaptor......(1) 11. Door Surround Knob - Short M8X30....(2) 2. RH Front Plastic Adaptor......(1) 12.
  • Page 3: Important Safety Information

    Page 3/15 Part # 13595.14 460 HORIZON DR. SUITE 400 | SUWANEE, GA 30024 | PHONE: 770-614-6101 | FAX: 770-614-6069 | info@omix-ada.com Voyager Top, Gladiator For proper installation and best possible fit, please read all instructions BEFORE you begin. Important Safety Information Periodically check all components for •...
  • Page 4 Page 4/15 Part # 13595.14 460 HORIZON DR. SUITE 400 | SUWANEE, GA 30024 | PHONE: 770-614-6101 | FAX: 770-614-6069 | info@omix-ada.com Voyager Top, Gladiator 2. Push Front Plastic Adaptor into front door bar. 3. Secure all pieces with 5 self-tap screws.
  • Page 5 Page 5/15 Part # 13595.14 460 HORIZON DR. SUITE 400 | SUWANEE, GA 30024 | PHONE: 770-614-6101 | FAX: 770-614-6069 | info@omix-ada.com Voyager Top, Gladiator 5. Install LH Middle Plastic Adaptor onto front door bar & secure all pieces with 1 self-tap screws.
  • Page 6 Page 6/15 Part # 13595.14 460 HORIZON DR. SUITE 400 | SUWANEE, GA 30024 | PHONE: 770-614-6101 | FAX: 770-614-6069 | info@omix-ada.com Voyager Top, Gladiator 8. Slide Rear Bracket onto LH Rear Door Bar as shown below. 9. Install LH Upper Corner onto LH Rear Door Bar &...
  • Page 7 Page 7/15 Part # 13595.14 460 HORIZON DR. SUITE 400 | SUWANEE, GA 30024 | PHONE: 770-614-6101 | FAX: 770-614-6069 | info@omix-ada.com Voyager Top, Gladiator 11. Install LH Upright Lower Plastic onto LH Upright and secure with 1 self-tap screw.
  • Page 8 Page 8/15 Part # 13595.14 460 HORIZON DR. SUITE 400 | SUWANEE, GA 30024 | PHONE: 770-614-6101 | FAX: 770-614-6069 | info@omix-ada.com Voyager Top, Gladiator 14. Fit LH Door Surround Mounting Plate on top of door surrounds. 15. Secure the mounting plate to the roll cage using turn-knobs in the holes.
  • Page 9 Page 9/15 Part # 13595.14 460 HORIZON DR. SUITE 400 | SUWANEE, GA 30024 | PHONE: 770-614-6101 | FAX: 770-614-6069 | info@omix-ada.com Voyager Top, Gladiator 17. Tighten all door surround knobs into door surround assembly at this time. Repeat steps 13 through 16 on passenger side.
  • Page 10 Page 10/15 Part # 13595.14 460 HORIZON DR. SUITE 400 | SUWANEE, GA 30024 | PHONE: 770-614-6101 | FAX: 770-614-6069 | info@omix-ada.com Voyager Top, Gladiator 20. Fold back the hardware tubes of the header channel assembly then install the main deck fabric.
  • Page 11 Page 11/15 Part # 13595.14 460 HORIZON DR. SUITE 400 | SUWANEE, GA 30024 | PHONE: 770-614-6101 | FAX: 770-614-6069 | info@omix-ada.com Voyager Top, Gladiator 23. Roll up the Soft Top Deck to make installation to the Flip Top Plates more manageable.
  • Page 12 Page 12/15 Part # 13595.14 460 HORIZON DR. SUITE 400 | SUWANEE, GA 30024 | PHONE: 770-614-6101 | FAX: 770-614-6069 | info@omix-ada.com Voyager Top, Gladiator 26. Place pivot tubes over the mount hinge plate. Line up the brackets then secure with the counter-sink Allen head screw and nylon lock-nut.
  • Page 13 Page 13/15 Part # 13595.14 460 HORIZON DR. SUITE 400 | SUWANEE, GA 30024 | PHONE: 770-614-6101 | FAX: 770-614-6069 | info@omix-ada.com Voyager Top, Gladiator 29. With both latches open as shown below, turn each hook until it grabs onto the soft top hoop with slight tension.
  • Page 14 Page 14/15 Part # 13595.14 460 HORIZON DR. SUITE 400 | SUWANEE, GA 30024 | PHONE: 770-614-6101 | FAX: 770-614-6069 | info@omix-ada.com Voyager Top, Gladiator 32. Locate the rear bow and insert into sleeve at rear of main skin, secure with hook and loop tab.
  • Page 15 Page 15/15 Part # 13595.14 460 HORIZON DR. SUITE 400 | SUWANEE, GA 30024 | PHONE: 770-614-6101 | FAX: 770-614-6069 | info@omix-ada.com Voyager Top, Gladiator 35. Locate the sewn-in plastic strip along the front edge of the Left Side Window.
