1. SOFT TOP VEHICLE: Refer to owner's manual for
instructions on lowering factory top. Once open,
unscrew shoulder bolts fastening top to sport bar and
remove soft top.
HARD TOP VEHICLE: Refer to owner's manual for
instruction on removing factory hard top.
2. Orient windbreaker with window on top and vinyl
side facing rear of vehicle. Start with top straps and
thread end of each strap around sport bar and
through each buckle as shown. Loosley tighten each
strap to hold windbreaker in place.
3. Secure windbreaker to seat brackets. Pull down
gently on the gabric and thread straps through back
of seat brackets. Buckle straps and tighten all straps.
If installing with optional tonneau
NOTICE
cover extension proceed to Step 4.
Otherwise, installation is complete

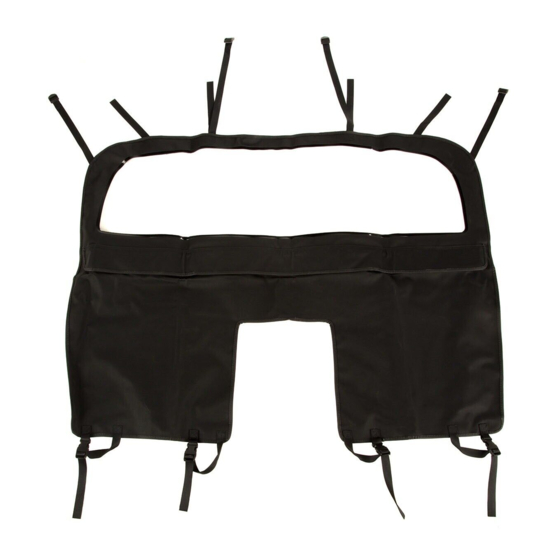

Windbreaker, 4 Door
Page 1/2
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Rugged Ridge 13552.51
Summary of Contents for Rugged Ridge 13552.51
- Page 1 Page 1/2 Windbreaker, 4 Door 1. SOFT TOP VEHICLE: Refer to owner’s manual for instructions on lowering factory top. Once open, unscrew shoulder bolts fastening top to sport bar and remove soft top. HARD TOP VEHICLE: Refer to owner’s manual for instruction on removing factory hard top.
- Page 2 Page 2/2 Windbreaker, 4 Door 4. Zip windbreaker to tonneau cover extension using zipper under flap of windbreaker.
