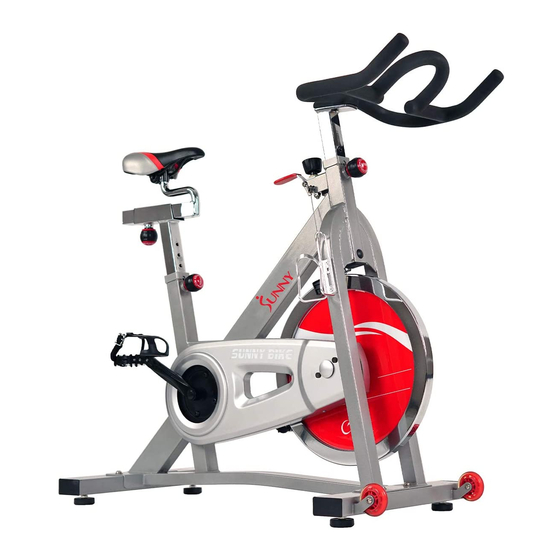

Sunny SF-B901B User Manual

Belt drive pro indoor cycling bike
Hide thumbs Also See for SF-B901B:
Table of Contents

Advertisement

Quick Links

Download this manual

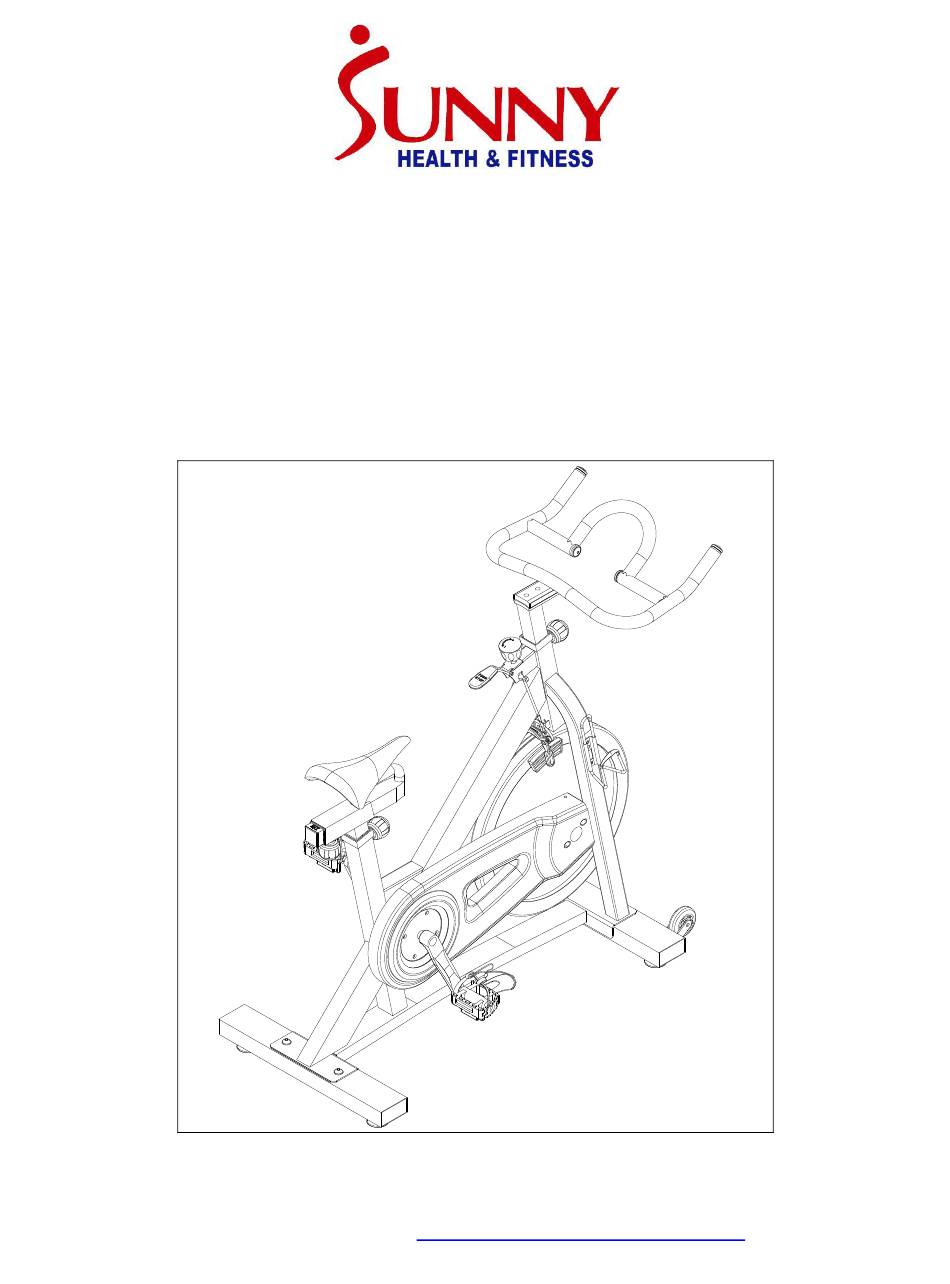

BELT DRIVE PRO INDOOR
CYCLING BIKE
SF-B901B
USER MANUAL
IMPORTANT! Please retain owner's manual for maintenance and adjustment
instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN
UNTIL YOU HAVE CONTACTED US:
support@sunnyhealthfitness.com
or 1- 877 -
90SUNNY (877-907-8669).

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SF-B901B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sunny SF-B901B

Summary of Contents for Sunny SF-B901B

  • Page 1 BELT DRIVE PRO INDOOR CYCLING BIKE SF-B901B USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1- 877 -...

  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained and used properly.

  • Page 3: Exploded Diagram

    EXPLODED DIAGRAM 19 17 18...
  • Page 4 INNER EXPLODED DIAGRAM...

  • Page 5: Parts List

    PARTS LIST Description Spec. Description Spec. Main Frame Screw M10*16*S6 Rear Stabilizer Right Crank 170“R”9/16 M10*H7*S17 Belt M10*30*φ52*49 Foot pad Screw M5*20*Φ8.5 End Cap J80*40*1.5 Wave Washer Screw M10*25*S6 Outer Belt Cover d10*φ20*2 d6*Φ12*1.2 Washer Washer M6*12*Φ12 Screw M10*15*S6 Screw Rear Shipping Tube C Clip Front Shipping Tube...

  • Page 6: Hardware Package

    HARDWARE PACKAGE #6 (M10*25*S6) 4PCS #7 (d10*Φ20*2.0) 4PCS #24 (M10*25*S6) 2PCS #25 (d10*Φ20*1.5) 2PCS S8-14-22 Replacement Parts (U.S. and Canadian Customers only) Ordering replacement parts checklist: Please provide the following information in order for us to accurately identify the part(s) needed ...
  • Page 7 ASSEMBLY INSTRUCTIONS STEP 1: Remove Screws (No. 8) using Allen wrench (No. 11) and discard the Front & Rear Shipping Tubes (No. 10 & No. 9). OPTIONAL: You may save these parts: Screws (No. 8), Washers (No. 7), Front & Rear Shipping Tubes (No.
  • Page 8 STEP 3: S13-15 Before you begin, immobilize the crank arms by turning the tension control knob all the way to the right. Remove the 2 Nylon Nuts (No. 77 & S8-14-22 78) located on the Pedals (No. 80L/R). (NOTE: The Left & Right Pedals (No. 80L/R) are marked L and R.) Screw the Left Pedal (No.
  • Page 9 STEP 5: Loosen and remove the Adjustment Knob (No. 20). Next, insert the Seat Slider (No. 27) into the Seat Post (No. 28) and adjust it to the desired position. Re-insert and tighten Adjustment Knob (No. 20) to secure the seat slider in place. Attach the Seat (No.

  • Page 10: Adjustment Guide

    ADJUSTMENT GUIDE ADJUSTING THE BALANCE: In order to achieve a smooth and comfortable ride during use, you must ensure the stability of the bike. If you notice that the bike is unbalanced you can adjust the foot pads located beneath the front and rear stabilizers.

  • Page 11: Maintenance Instructions

    MAINTENANCE INSTRUCTIONS This is general information for daily, weekly and monthly maintenance to be performed on your bike. DAILY MAINTENANCE MONTHLY MAINTENANCE After each exercise session, wipe down all 1. Check all hardware is secure, such as: water the equipment: seat, frame, handlebars. Pay bottle holder, flywheel nuts, belt/chain guard special attention to the seat post, handlebar bolts, brake caliper lock nuts and brake...
