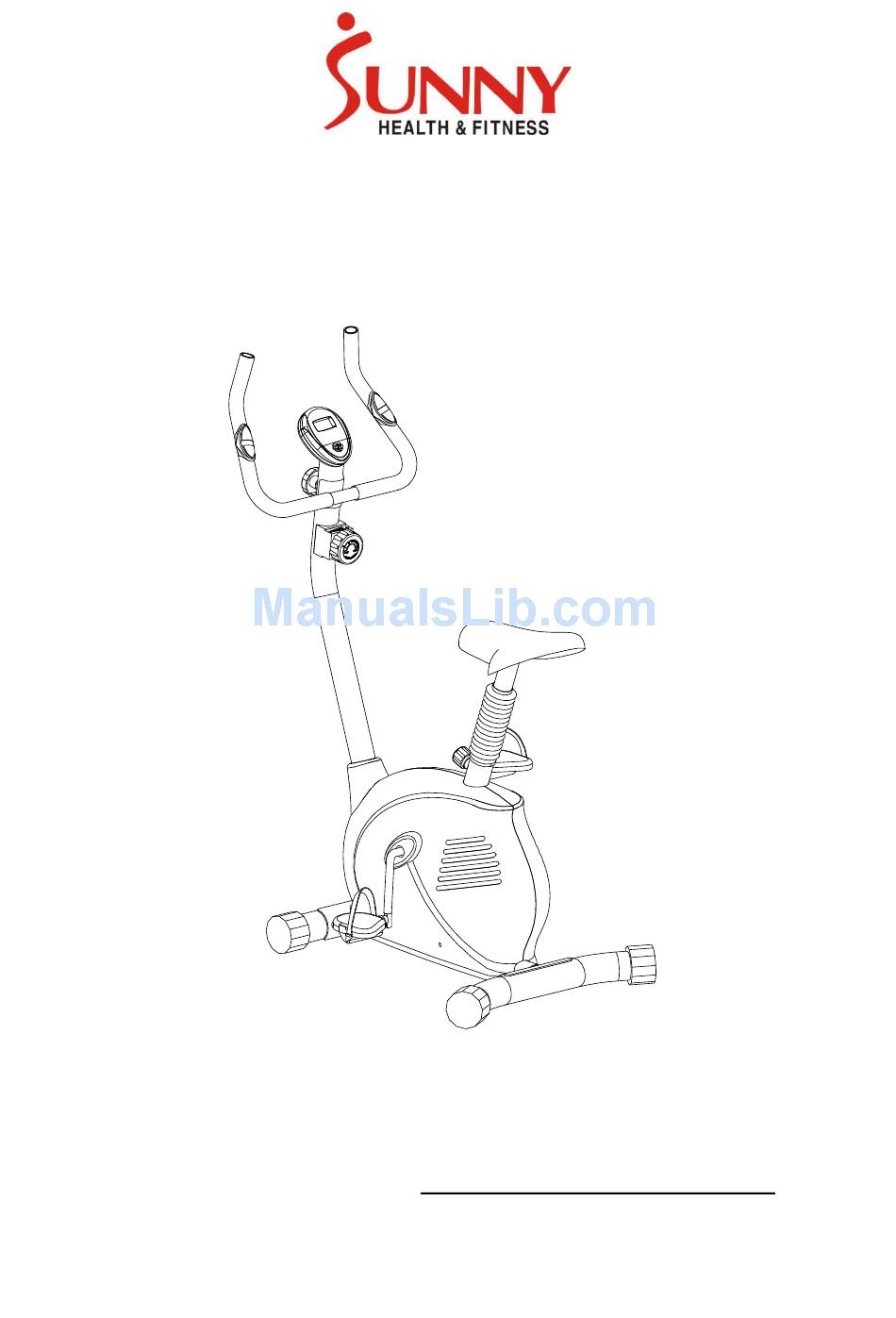

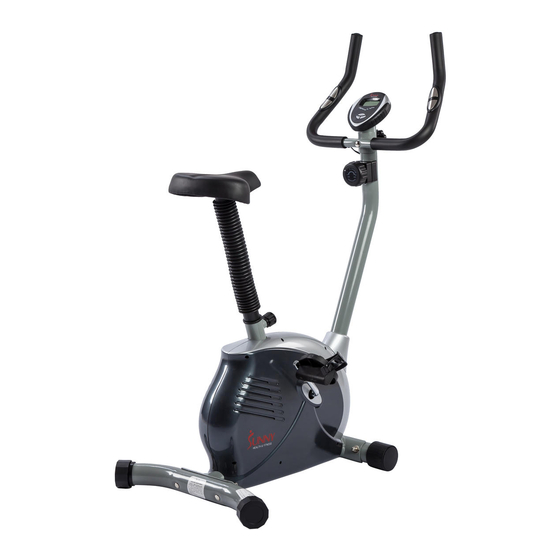

SUNNY MAGNETIC EXERCISE BIKE
SF-B910
IMPORTANT!
Please read the manual carefully before assembling and using the bike.
For Customer Service, please contact: support@sunnyhealthfitness.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SF-B910 and is the answer not in the manual?

Questions and answers

Related Manuals for Sunny SF-B910

Summary of Contents for Sunny SF-B910

  • Page 1 SUNNY MAGNETIC EXERCISE BIKE SF-B910 IMPORTANT! Please read the manual carefully before assembling and using the bike. For Customer Service, please contact: support@sunnyhealthfitness.com...

  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained and used properly.
  • Page 3 EXPLODED VIEW...
  • Page 4 PARTS LIST NO DESCRIPTION QTY NO DESCRIPTION BOLT M8*73 TRUNK LINE TENSION WIRE CAP NUT M8 ARC WASHER ID8.5*OD25*R30 HANDLEBAR POST ASSEMBLY BOLT M8*15 ARC WASHER ARC WASHER ID8.5*OD19*R30 SCREW M5*45 KNOB M16 COMPUTER SCREW M5*15 HANDLE PULSE WIRE KNOB M8 SCREW BOLT M8*94 HANDLE...
  • Page 5 HARDWARE PACKAGE...

  • Page 6: Main Frame (

    ASSEMBLY INSTRUCTIONS Step1: STEP 1： Attach the Front & Rear Stabilizer (2&4) to Main Frame (1) with Bolt (A), Arc Washer (C) and Cap Nut (B) then tighten them.

  • Page 7: Extent Cover 1

    Step 2: STEP 2：Attach the Saddle (9) to Saddle Post (8) with Nylon Lock Nut (28) and Washer (29). Slide the Extent Cover (7) on to the Saddle Post (8), attach the Saddle Post (8) to Main Frame (1) with Knob (F) and tighten.

  • Page 8: Tension Cable

    Step 3: STEP 3 ： Connect the Sensor Wire Connector (11) and Trunk Line (13). Connect the Tension Cable (10) and Tension Wire (14). Put the Handlebar Post (15) in Main Frame (1), with Post Connect Cover (12), and attach with Bolt (D) and Arc Washer (E) and tighten.

  • Page 9: Computer

    Step 4: STEP 4：Connect the Trunk Line (13) and Computer Wire (27), put the Computer (18) on Handlebar Post (15). Attach the Computer (18) to Handlebar Post (15) with Screws (G) and tighten. Please note: Screws (G) come preassembled on the monitor;...

  • Page 10: Handle Pulse Wire

    Step 5: This does not look like a letter I. Please correct the picture make look clearer. STEP 5：Attach the Handle (21) to Handlebar Post (15) with Bolt (I), Arc Washer (E) and Knob (H) then tighten. Connect the Handle Pulse Wire’s (19) circular pin and Computer hole.

  • Page 11: Screw

    Step 6: IMPORTANT: FAILURE TO FOLLOW PROCEDURES MAY RESULT IN PERMANENT DAMAGE. READ INSTRUCTIONS CAREFULLY BEFORE CONNECTING YOUR PEDALS. STEP 6： Connect the Pedals (L & R) (25) to Pedal axes and Crank (26). To tighten the LEFT pedal; must screw counter-clockwise.
  • Page 12 Step 7: The lowest magnetic force setting is on level 1 The highest magnetic force setting is on level 8 How to adjust the seat’s height: a. Turn knob rotations to the left to loosen the knob. b. With one hand pull the knob out;...

  • Page 13: Warm Up And Cool Down

    EXERCISE TIPS Warm up and cool down Stretching routine A successful exercise program consists of a warm-up, aerobic exercise, and a cool-down. Do the entire program at least two to three times a week, resting for a day between workouts. After several months, you can increase your workouts to four or five times per week.
  • Page 14 5. Calf-Achilles Stretch Lean against a wall with your right leg in front of the left and your arms forward, Keep your left leg straight and your right foot on the floor, then bend your right leg and lean forward by moving your hips toward the wall, Hold, then repeat on the other side for 15 counts.
  • Page 15 EXERCISE COMPUTER INSTRUCTION MANUAL FUNCTIONAL BUTTONS: MODE – Press to select functions. – Press and hold the MODE button for 3 seconds to reset time, distance and calories. SET（If Available）– Press to set values of time, pulse, distance and calories when not in scan mode. A.

  • Page 16: Specifications

    SPECIFICATIONS: Auto Scan Every 6 seconds Running Time 00:00 ~ 99:59(Minute: Second) The max pick-up signal is 999.9KM/H or MILE/H Current Speed (or 9999RPM) FUNCTION Trip Distance 0.0 ~ 999.9 KM or MILE Calories 0 ~ 9999 Kcal Total Distance 0 ~ 9999 KM or MILE Pulse Rate 40-240BPM...
