Power Factor Controller SPF

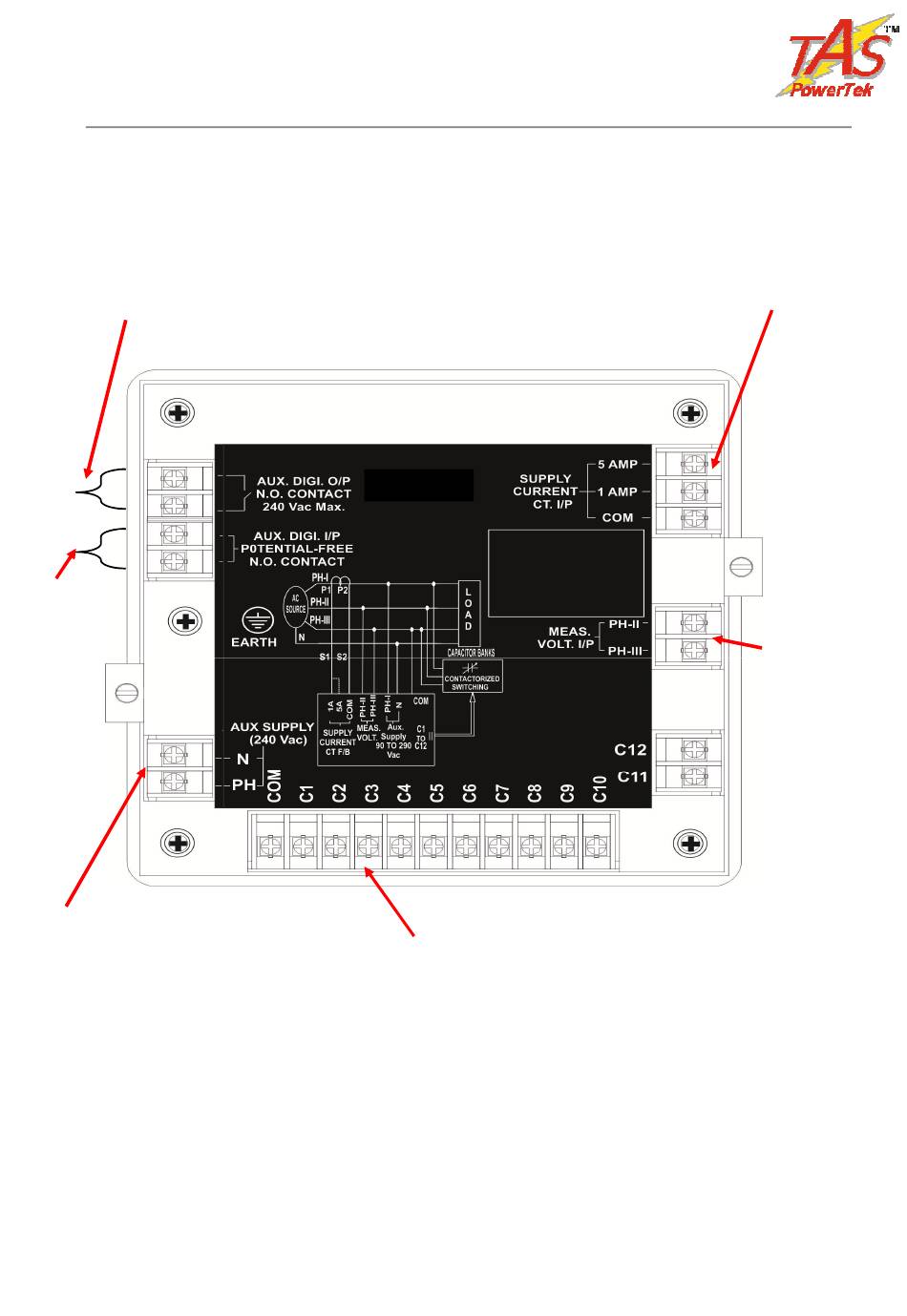

Rear side terminals
Auxiliary Digital Outputs –
Potential-free, N.O. Relay Contact,
Contact Rating: 5A (Resistive), 240Vac
nominal
Auxiliary
Digital
Input,
Connect
Connect
N.O.
Contact
Auxiliary Operating
Voltage
(Rated Nom. 240 Vac,
50/60 Hz. )
Use Correct Size "U" Type, Insulated Fork Lugs for Field Wires Connections,
suitable for 2.5 mm-Square wires. Suggested Make: Chetna Engg., F-57,
Ambad MIDC, Nashik-422 010, India. Cat. No.: CCFM-937, Serial No.: 835.
Or Direct Equivalent.
APFC - 06
Output commands to capacitor contactors
COM = common,
C1....C12 ( C4 or C6 or C8) = potential free N.O.
contact, 5 A (Resistive Load), 250 Vac.
- 6 -
User Selection of
1 Amp or 5 Amp
Output terminals
Supply current
Feedback CT,
Nominal &
Common
Measurement
Feedback
Voltage
Voltage
(Rated Nom.
380-485 Vac,
50 / 60 Hz).
.
