TAS APFC-06 04 User Manual page 16

Power Factor Controller APFC 06
LCD Display Contrast Adjustment (View)
Lighter view
Multiple strokes of Left or Right key on default screen can adjust the display contrast.
For retaining the contrast, after adjustment, press the "Save" key

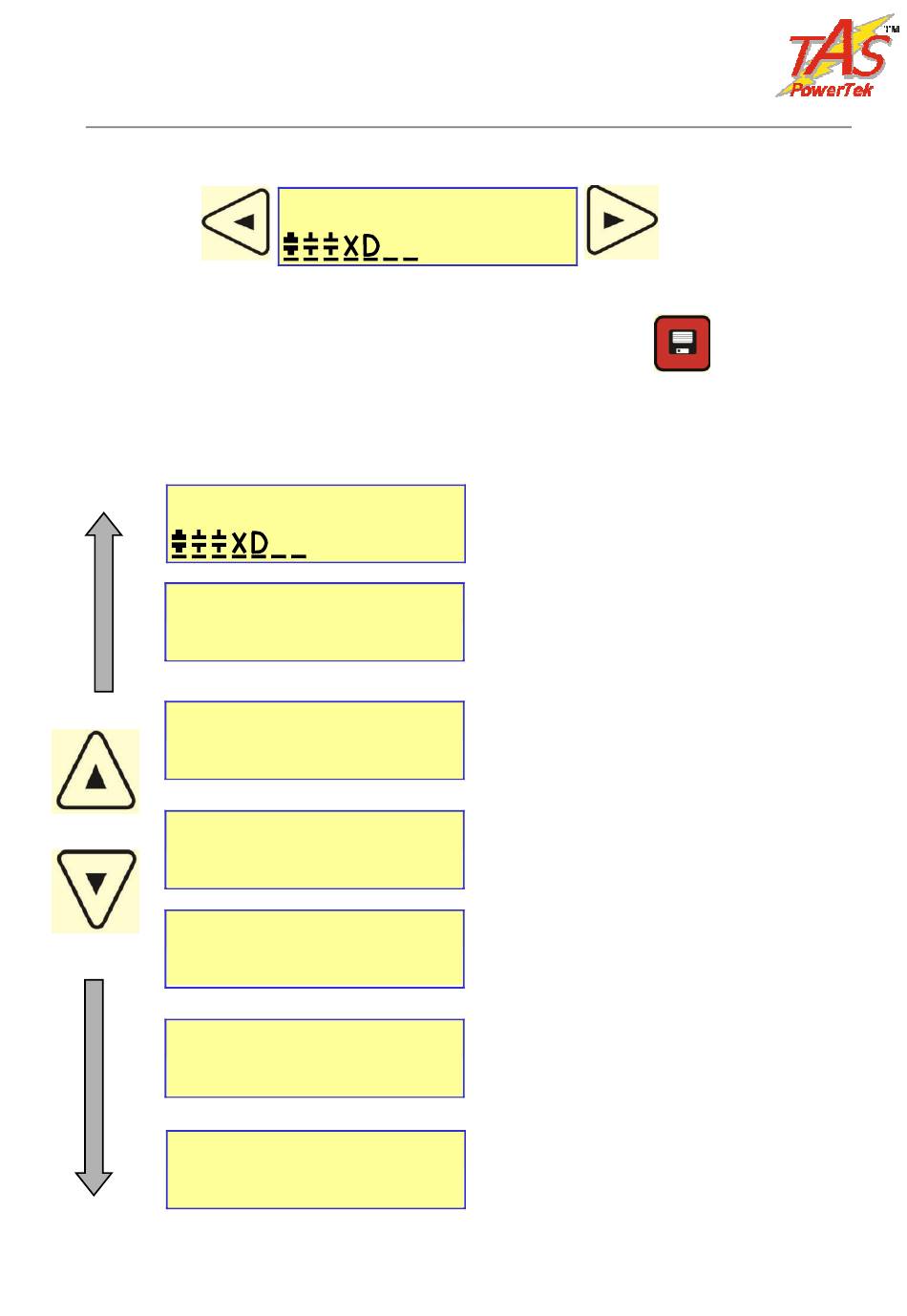

Display of various parameters
Values of various parameters can be viewed by using UP / DN
keys & then pressing ENT key. To exit a sub-menu press MODE.
PF=0.98 IND A OK
Overall Values Overall Values
Harmonics
Aux-Function
TAS POWERTEK
PF=0.98 IND A OK
Display
Display
Power
Display
Display
Step KVAr
Display
Ver. 2.1.1
This is factory set default display
screen giving information on PF,
mode, bank & controller status.
Overall values gives the average
values of system parameters – V, I,
PF & Line Frequency.
Displays values of kW, kVAr, kVA
Displays values of THD for V, I,
odd-harmonics up-to 15
Displays the measured kVAr value
of each connected output step.
Displays the internal (cabinet)
temperature.
Displays the Firmware version in
APFC Controller. This can change as
and when found necessary.
Therefore, always refer to the latest
one and with corresponding User
Manual.
- 14 -
Darker view
th
order.
