Summary of Contents for Fillauer MC Standard Hand

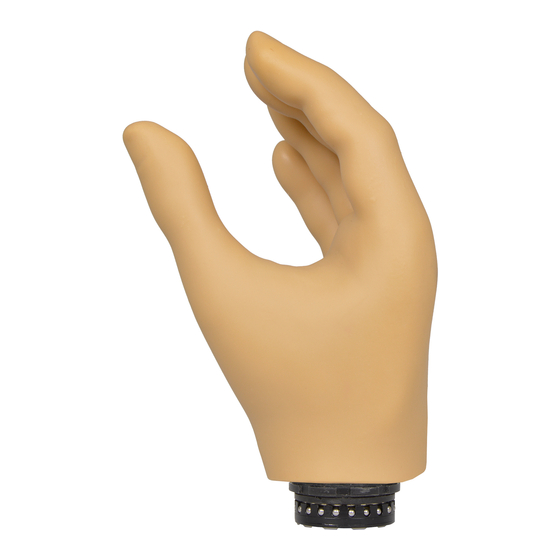

- Page 1 MC Standard Hand Prosthetist Manual...
- Page 3 2.4 cm (1.0 in.), by sacrificing the Q/D and fabricating directly to the forearm. he MC Standard Hand can only be used when a controller is upstream of the terminal device, such as cases with a ProControl2, Utah Artificial Arm or Utah Hybrid Elbow.
- Page 4 ON. Pushing completely toward the palm is the SAFETY RELEASE position, releasing the fingers. In the Safety Three Position Release position, the hand is also turned OFF. Switch SAFETY RELEASE MC Standard Hand showing (OFF) Three Position Switch...
- Page 5 Quick Disconnect Wrist The Quick Disconnect wrist is a universal design that allows interchangeability with our other terminal devices, such as the MC Standard ETD and other manufacturers’ devices. Inner Hand Shell This durable glove is installed at the factory and is not meant to be removed except by trained personnel. This shell provides protection for the hand along with some moisture resistance.
- Page 6 Transport & Storage Temperature: -18° to 71° C (0° to 160° F) Pinch Force: At 7.2 volts nominal: 10 kg (22 lbs, or ~ 100N) Operating Voltage Range: 6 to 8.2 Vdc - MC Standard Hand Load Limit: 22 kg / 50 lbs in all directions (+/- 10%)
- Page 8 Motion Control, Inc. Fillauer Europe Kung Hans väg 2 115 N Wright Brothers Drive 192 68 Sollentuna, Sweden Salt Lake City, UT 84116 +46 (0)8 505 332 00 801.326.3434 Fax 801.978.0848 www.fillauer.com © 2021 Motion Control, Inc. 1910013 Rev H 06-29-2021...
