- Page 1 MotionFoot ® Prosthetist Manual...

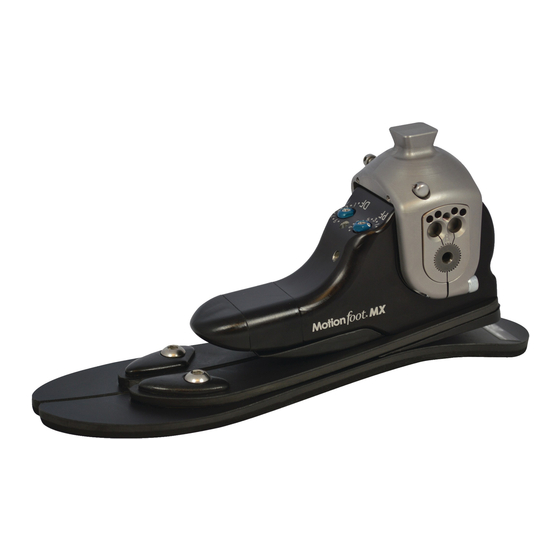

- Page 3 MotionFoot ® Prosthetist Manual Introduction The MotionFoot MX is a hydraulic ankle with carbon fiber foot system that provides a full 50 degrees ® range of motion (ROM). Plantar flexion and dorsi flexion resistance are independently adjustable by the prosthetist or the patient. Dynamic response of the toe lever arm progressively increases during the gait cycle due to the unique, moving fulcrum design acting on the main spring element of the foot.
- Page 4 Special Precautions Adjusting the Side Plates When adjusting the Side Plates, the Clevis should be in a position so that the “STOP!” warning is not visible on the foot. Otherwise the Clevis will hit the housing, causing damage to the Ankle Housing, Clevis, Side Plates, and Splined Shaft.
- Page 5 To Change Heel Height/Dorsi Flexion range Factory Setting The MotionFoot MX is set for 7 degrees of free dorsi flexion in a shoe with a 3/8 inch heel. This is marked ® at “0” on the Ankle Housing. Small adjustments (< 5 degrees) are made at the adjustment pyramid. When Side Plate adjustments are made, the zero reference mark is no longer valid.
- Page 6 Trans-femoral • Set up initial socket flexion and TKA (Trochanter, Knee, Ankle) to standard prosthetic principles • A sagittal plumb line should drop from knee center (not center of rotation of polycentric knees) through the ankle joint Trans-tibial • Set up initial socket flexion according to standard prosthetic principles •...
- Page 7 Foot shell Removal 1. Insert the foot shell tool in the posterior corner of the foot shell to pry the retaining wedge off of the foot plate. 2. Remove MotionFoot MX from the foot shell. ® Suggested LCodes Code Description L5968 Multiaxial Ankle w/swing phase dorsiflexion L5981...
- Page 8 Motion Control, Inc. 115 N Wright Brothers Drive Salt Lake City, UT 84116 801.326.3434 Fax 801.978.0848 www.fillauer.com © 2020 Motion Control, Inc. 1910046 Rev H 09-28-2020...
