Checking the Contents of the Package
DL1620/DL1640/DL1640L Main Body
IM 701610-01E
Unpack the box and check the contents before operating the instrument. If the wrong
instrument or accessories have been delivered, if some accessories are missing or if
they appear abnormal, contact the dealer from which you purchased them.

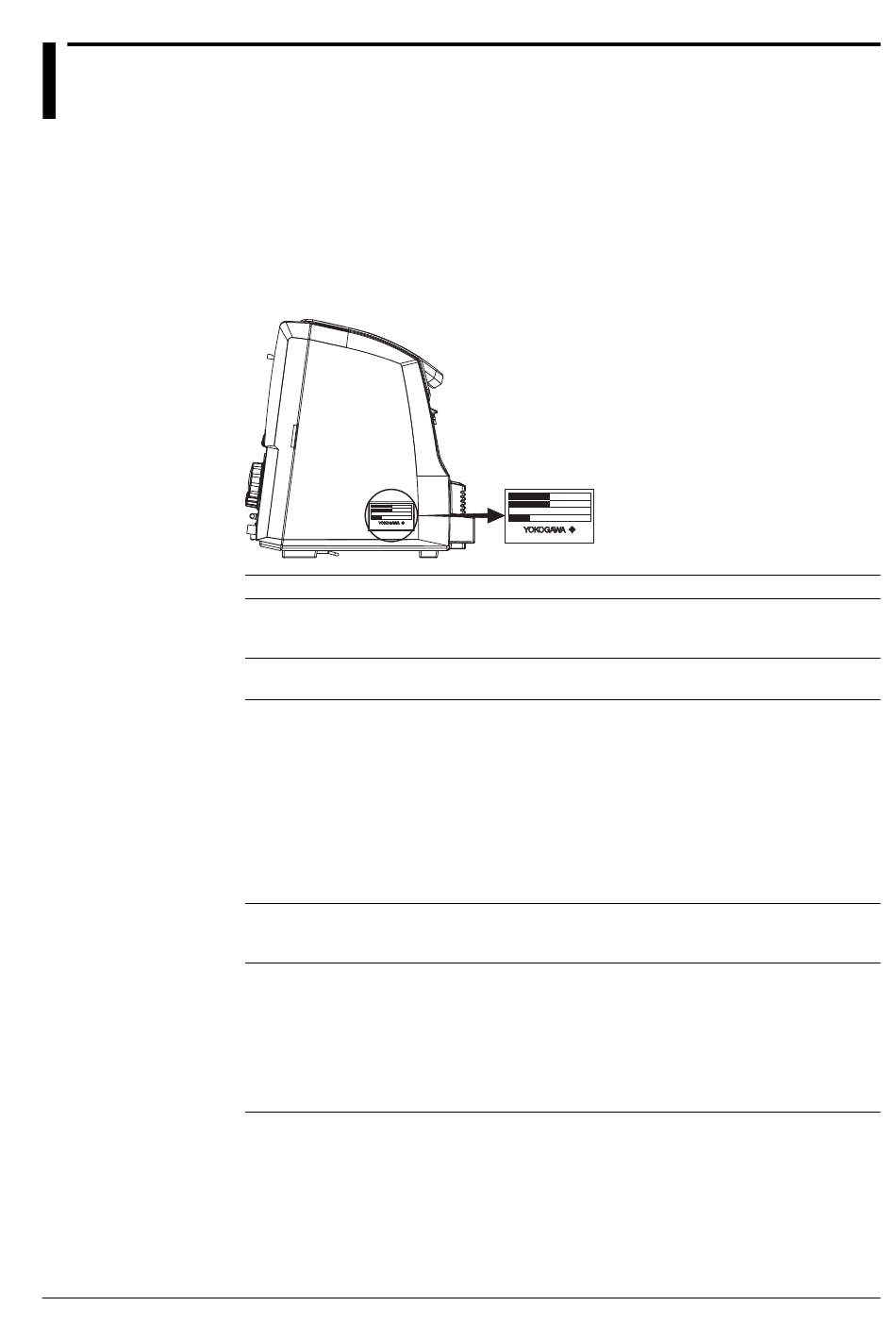

Check that the model name and suffix code given on the name plate of the side panel
match those on your order. Whenever you contact the dealer from which you purchased
the instrument, tell the dealer your unit's serial number.
MODEL
SUFFIX
NO.
Made in Japan
MODEL SUFFIX
701605 (DL1620)
701610 (DL1640)
701620 (DL1640L)
-AC
-DC
Power Cord -D
-F
-Q
-R
-H
-Y
Built-in Media Drive -J1
-J2
-J3
Options /B5
/C1
/C10
/P2
/P4
/F5
/F7
*1 Select -Y for the power Cord.
*2 You can select a floppy disk drive, a Zip drive, or PC card interface for the built-in media drive.
*3 1 printer roll (B9850NX) included.
*4 It is possible to choose between a GP-IB interface+USB and an Ethernet interface+USB.
Example : UL/CSA standard power cord, floppy disk drive, and full options
→ 701610-D-J1/B5/C1/P4 or
701610-D-J1/B5/C10/P4
MODEL
SUFFIX
NO.
Made in Japan
SPECIFICATIONS
2 channels
4 channels
4 channels (long record length)
100 to 120 VAC, 220 to 240 VAC
*1
12 VDC(for 701610 and 701620)
UL/CSA standard power cord (A1006WD)
Maximum rated voltage: 125 V, maximum rated current: 7 A
VDE standard power cord (A1009WD)
Maximum rated voltage: 250 V, maximum rated current: 10 A
BS standard power cord (A1054WD)
Maximum rated voltage: 250 V, maximum rated current: 10 A
AS standard power cord (A1024WD)
Maximum rated voltage: 250 V, maximum rated current: 10 A
GB standard power cord (A1064WD)
Maximum rated voltage: 250 V, maximum rated current: 10 A
No power cord
*2
Floppy disk drive
*1
Zip disk drive
*2
PC card interface
*3
Built-in printer
GP-IB interface+USB
Ethernet interface+USB
Two power output connectors for the probes (for 701605)
Four power output connectors for the probes (for 701610 and
701620)
2
I C-bus signal analyzer (for 701610 and 701620)
CAN bus signal analyzer (for 701610 and 701620)
*4
*4
