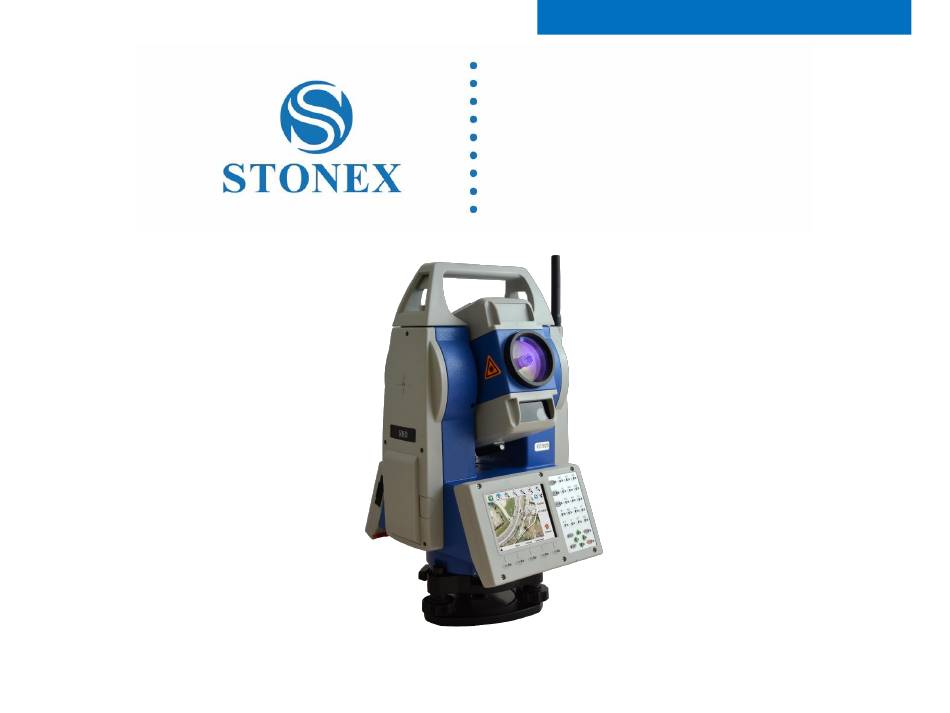

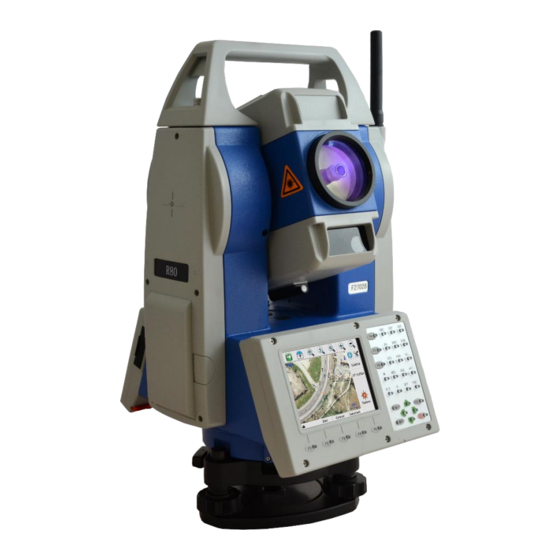

- Page 1 STONEX R80 Motorized Total Station Quick guide (April 2020)-Ver.1-Rev.0- Firmware Version V3.0.1.0 150228 www.stonex.it...
- Page 2 Welcome interface Switching on the R80, you will see the interface on the right. Click on: BSC measure to check • performance functionality and manage some parameters; About to check the • software version; INST Setup to • manage the settings;...
- Page 3 Basic Measure In the Basic Measure interface you can visualize angles, distances or coordinates. In the top right corner, current settings are shown. Select Param to manage the units.
-
Page 4: Instrument Setup
Instrument setup In the INSTset interface you can manage settings of your Total Station. To access them, enter the password: 12345678 After selecting the option, in each page, press [Enter] to keep the setting or press [Cancel]. - Page 5 Star settings TiltXY Press the [*] key to check the electronic bubble and to manage the compensator.
- Page 6 Star settings Target Press the [*] key and click on Target. Here you can manage the target type, the laser pointer and activate the Auto aim & Lock.
- Page 7 Star settings Battery Press the [*] key and click on Battery. Here you can manage the reticle and guide light illumination and switch on/off the Bluetooth.
-
Page 8: Shortcut Keys
Description Shortcut keys combination Power on Enter the setting mode directly/Turn on the ★ electronic bubble Shift among number, small letter and capital α letter Look at the combinations Turn on/off backlight of key panel in face left FUNC+B.S on the right to manage position some settings on the Turn on/off backlight of key panel in face right... -
Page 9: Touch Screen Calibration
Touch screen calibration Press the [F7]+[F6] keys (F7 firstly, then F6). Carefully press and briefly hold stylus on the center of the target. Repeat as the target moves around the screen. After all the targets are clicked, the screen will display as left, tap the screen to register saved data. - Page 10 Communication USB dongle The communication modes available on the Total Station are listed on the right. USB-mini USB cable About Bluetooth, make sure you have enabled it in the Star settings. Bluetooth Password: 1234 or 0000...
- Page 11 STONEX® SRL Via dell’Industria, 53 - 20037 Paderno Dugnano (MI) Tel : +390278619201 | Fax :+ 390278610299 www.stonex.it | info@stonex.it...
