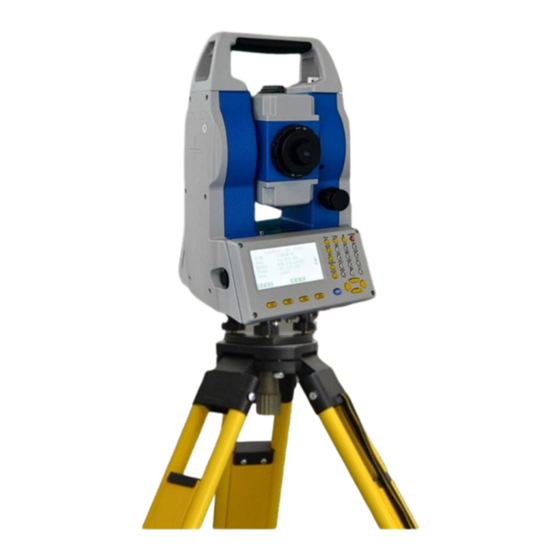

  • Page 1 User Manual R2 PLUS Total Station www.stonexpositioning.com...
  • Page 2 Dear Customer: Congratulations! We, STONEX, are proud to present you with these series instrument. Your total station is a rugged and reliable instrument whose performance and design are not surpassed. To fully appreciate and protect your investment, we suggest that you take the necessary time to read and fully understand this manual.

  • Page 3: Table Of Contents

    4.1 Measure a Horizontal Angle of Two Points ....................29 4.2 Set the Horizontal Angle to a Required Value .................... 30 5. Distance Measurement ......................31 6. Coordinate Measurement ......................33 6.1 Input the Occupied Point Data .......................... 33 Stonex R2 PLUS Total Station - User Manual...
  • Page 4 17. Polar Coordinates Calculation ....................70 18. Repetition Angle Measurement .................... 71 19. Arc Staking Out Measurement....................73 19.1 Two Point Arc Staking Out ..........................74 19.2 Three Point Arc Staking Out ..........................75 Stonex R2 PLUS Total Station - User Manual...
  • Page 5 22.5 Output JOB Data ..............................106 22.6 File Copy ................................107 22.7 Connect PC via USB port ..........................108 23. Known Data Management ....................109 23.1 Input Known Point Coordinate by Keys ....................109 Stonex R2 PLUS Total Station - User Manual...
  • Page 6 Appendix II：Correction for refraction and earth curvature ..............132 Appendix III: Connect the R2 PLUS series with PDA ..................133 Appendix IV Connect the R2 PLUS series and PDA with Bluetooth ............134 Appendix V: STANDARD LIMITED WARRANTY ....................136 Appendix VI: FCC Statements ..........................

  • Page 7: Precautions For Safety

    The noise from the instrument When the instrument working, it is normal if you hear the noise from instrument motor, it will not affect the instrument work. Stored data responsibility Stonex R2 PLUS Total Station - User Manual...

  • Page 8: Definition Of Indication

    Blast could be result. ● Do not put the battery in the fire or high temperature condition. Explosion, damage could result. ● Do not use the battery which is not specified by STONEX. Fire, electric shock or burn could result.

  • Page 9: Safety Standards For Laser (R1 Series)

    1.3 Safety Standards for Laser (R1 series) STONEX R2 PLUS series adopt the class of Laser Product according to IEC Standard Publication 60825-1 Amd. 2:2001. According this standard, EDM device is classified as Class 3R Laser Product when reflectless measurement is selected, when the prism and reflective sheet is selected as target, the output is equivalent to the safer class 1.

  • Page 10: About User

    5) The manufacturer, assumes no responsibility for any damage, and loss of profits caused by usage except for explained in the user manual. 6) The manufacturer, assumes no responsibility for damage caused by wrong transport, or action due to connecting with other products. Stonex R2 PLUS Total Station - User Manual...

  • Page 11: Preparation Before Measurement

    The symbol only indicates the supply power but not the instantaneous power  change. And if the measurement mode changes, the symbol will not show the power’s decrease or increase immediately. It is suggested to check every battery power before field work.  Stonex R2 PLUS Total Station - User Manual...

  • Page 12: Replace The Battery

    Once the red light flashes constantly after the charger is plugged into the  outlet of 100V-240V AC power supply, please remove the battery and reconnected it after 3 or 5 min. Stonex R2 PLUS Total Station - User Manual...

  • Page 13: Setting Up The Instrument

    Screw C Screw B Screw A Turn the instrument approximately 90°. Adjust screw C, till the bubble in the center of the level. Screw C Stonex R2 PLUS Total Station - User Manual...

  • Page 14: Accurate Levelling-Up With Electronic Level On Screen

    If not, repeat procedure 4. 2.4 Accurate Levelling-Up with Electronic Level on screen It is convenient for R2 PLUS series to level-up with electronic level, especially when it is difficult to observe the circular level and plate level. Tilt Value 1.

  • Page 15: Basic Functions

    3. Basic Functions 3.1 Nomenclature Handle Handle screw Optical sight Objective Instrument height mark Model label Vertical motion clamp Vertical tangent screw Plate level Battery Horizontal motion clamp Screen Horizontal tangent screw Keypad SD card slot & USB port Tribrach...
  • Page 16 Focusing knob Eyepiece Instrument height mark Serial number RS-232C port Leveling screw Stonex R2 PLUS Total Station - User Manual...

  • Page 17: Basic Key Operation

    3.2 Basic Key Operation Keys Description F1~F4 Select the functions matching the softkeys 1.Input number when numeric input 2.Input characters when alphabetic input ● Input a decimal point ± Input plus/minus sign Power Power on/off ★ Enter into setting mode directly Escape to the previous menu or mode 1.

  • Page 18: Display

    The active JOB MEAS M E M Basic measure mode Target type Meas Current memory Face II Page DIST SHV1 SHV2 0 S E T Measuring Dist Fine ppm 0 -----※ STOP Measuring now Stonex R2 PLUS Total Station - User Manual...

  • Page 19: Mode Diagram

    1.Key input 7.Resection 2.Com input 3.Delete 4.View 5.Clear Menu 6.Com setting 1.Point projection 2.Line stake out 3.Traverse Code 4.Inverse 1.Code Edit 5.Polarize 2.Clear List 6.Repeat Measure 7.Arc staking out Menu 1.Road Calculation Stonex R2 PLUS Total Station - User Manual...

  • Page 20: Power On/Off

    7.Key Function 3.5 Power On/Off I. Power on 1. Confirm the instrument is leveling, press the red key {POWER}. Initing…… 2. The instrument will power on and display the STONEX R2 PLUS STN3050 status screen. 10-06-21 Date 07/12/2010 Time 10:01:59...

  • Page 21: How To Input Number And Alphabet

    You can press key {BS} to delete your wrong input 004: 005: before the cursor. The max length of a code is 16 ↑↓.P T O P LAST DEL characters Stonex R2 PLUS Total Station - User Manual...

  • Page 22: How To Configure

    EDM returned signal value will display simultaneously. Inst Config 1.Backlight : YES 7. EDM setting menu 2.Laser Press function key {F1} to open the EDM setting menu. 3.LCD contrast 4.Reticle lev 5.Key Beep :YES 6.EDM signal Stonex R2 PLUS Total Station - User Manual...

  • Page 23: How To Set Parameters

    No﹡/Yes (auto correct ppm by sensors or not) Code effect The manual input code is available once or always Vdist mode Display mode of vertical distance: to instrument center or to the ground Stonex R2 PLUS Total Station - User Manual...

  • Page 24: Instrument Basic Setting

    (The instrument would power off automatically to save battery if no operation in setting time) 2.LCD contrast 0~13 (9﹡) 0~9 (7﹡) 3.Reticle adjust NOTE: The options with the symbol “﹡” are the factory setting. Stonex R2 PLUS Total Station - User Manual...

  • Page 25: Communication Port Setting

    2.Data bits 3.Parity No﹡/ Even/ Odd 1bit﹡/ 2bit 4.Stop bit 5.Check sum No﹡/ Yes 6.Xon/Xoff No﹡/ Yes 7.Com mode RS-232/B-TOOTH NOTE: Every first options with the symbol “﹡” are the factory setting. Stonex R2 PLUS Total Station - User Manual...

  • Page 26: Unit Setting

    Table 3-4 Option list of unit setting Options Item 1. Temp. ℃﹡/ ℉ hPa﹡/ mmHg / inchHg/mbar/psi 2.Pressure 3.Angle degree﹡/ gon / mil meter﹡/ Us-feet/Int-ft 4.Dist NOTE: Every first options with the symbol “﹡” are the factory setting. Stonex R2 PLUS Total Station - User Manual...

  • Page 27: Date & Time Setting

    SHV1 SHV2 0SET according to your need by pressing keys { }/{ } to select. CORD MENU HOLD HSET 2. Press Key {OK} to confirm the key defined. EDM OCC OFST REC Stonex R2 PLUS Total Station - User Manual...
  • Page 28 Output the current measurement data via RS-232C port AREA Enter area measurement menu ROAD Enter road measurement menu Enter instrument height setting menu LSO. Enter line stake out measurement menu PROJ Enter point projection measurement menu Stonex R2 PLUS Total Station - User Manual...

  • Page 29: Edm Setting

    { } / { } to set Mode :Fine “r” Reflector :Prism the options. Prism const Temp. :20℃ Pressure :1013hPa 4. Press key {ESC} back to the previous mode. 0PPM Stonex R2 PLUS Total Station - User Manual...
  • Page 30 If the option of “ppm correct” is set as “Yes”, the temperature, pressure and ppm can not be inputted by hand. This operation is also available in stake out mode.  You can press star{★}/F1[EDM] key to enter EDM setting menu directly  Stonex R2 PLUS Total Station - User Manual...

  • Page 31: Angle Measurement

    Meas 2. Sight the 2nd target. The displayed value is the included angle between two points. 85°55′50″ HA 156°13′14″ P1 DIST SHV1 SHV2 0 S E T 1st target 2nd target Stonex R2 PLUS Total Station - User Manual...

  • Page 32: Set The Horizontal Angle To A Required Value

    The horizontal angle is in hold status when [HOLD] is flashing, press [HOLD] again VA 302.5432gon HA 399.9998gon to releasse the hold status. CORD MENU HOLD H S E T Stonex R2 PLUS Total Station - User Manual...

  • Page 33: Distance Measurement

    “VD” will display as shown left. 7.009m 7.586m DIST S H V 1 SHV2 0SET Meas 4. Press F3: [SHV2], SD/HD/VD and SD/VA/HA are displayed 10.329m alternatively. 7.009m 7.586m DIST S H V 1 SHV2 0SET Stonex R2 PLUS Total Station - User Manual...
  • Page 34 If the distance measurement mode is average “Fine AVG”, the measured distances are  displayed as “-1”,”-2”,”-3”…”-9” in turn, and the average value will display behind “-A” once the selected time’s measurement has been finished. Stonex R2 PLUS Total Station - User Manual...

  • Page 35: Coordinate Measurement

    2. Measure 3. EDM 4. JOB select 4. Select “1. Occ. coordinate” to input the occupied Coord 1. Occ. coordinate coordinates, instrument height and target height in 2. Set H angle corresponding field. Stonex R2 PLUS Total Station - User Manual...
  • Page 36 You could re-edit the data Code: sdds and it won’t affect the original coordinate data. 100.000 100.000 010.000 4. Press F4: [OK] to save the setting. User READ R E S R E C Stonex R2 PLUS Total Station - User Manual...

  • Page 37: Azimuth Setting

    F3: [REC] to record and set the station, then back to the previous mode. You could also press F4: [OK] to set the station, but the data will not be MEAS R E C recorded. Stonex R2 PLUS Total Station - User Manual...

  • Page 38: Coordinate Measurement

    The formula used to calculate: N1=N0+S×sinZ×cosAz E1=E0+S×sinZ×sinAz Z1=Z0+S×cosZ+IH-TH Where： N0-E0-Z0: occupied point coordinates S: SD Z: Zenith angle Az: Azimuth angle IH: Instrument height TH: Target height Zenith angle Target height Target (N-E-Z) N0-E0-Z0 Azimuth angle Stonex R2 PLUS Total Station - User Manual...
  • Page 39 F1: [MEAS] to 1000.000 10.466 continue. Follow this operation till all targets have 132.3648gon been measured. 150.3536gon MEAS T A G T R E C 5. Press key {ESC} back to the coordinate mode. Stonex R2 PLUS Total Station - User Manual...

  • Page 40: Stake Out Measurement

    The point to be found based on the horizontal angle from the reference direction and the distance from the instrument station. Position to be stake out distance Reference direction Present target position Distance to be stake out Instrument station Stonex R2 PLUS Total Station - User Manual...
  • Page 41 See “§ 4.2 Set S-O dSD↓ 0.000m S-O dHA← 0.0000gon the Horizontal Angle to a Required value”. 149.3610gon Press F4: [OK] to set the input values 334.9916gon I MEAS NEXT MOKS Stonex R2 PLUS Total Station - User Manual...

  • Page 42: Coordinates Stake Out Measurement

    To get the Z coordinate, attach the target to a pole etc., with the same target height. Distan Back sight station Point to be stake out Instrument Angle station Stonex R2 PLUS Total Station - User Manual...
  • Page 43 : Move the prism upward -147.328m ↓ 0.000m : Move the prism downward 19.310m S-O dHD ↑ -147.328 S-O dHA→ 146.7194go Press key { } back to stake out mode. 296.1184gon I 249.0324gon MEAS NEXT MOKS Stonex R2 PLUS Total Station - User Manual...

  • Page 44: Rem Stake Out Measurement

    Move telescope to find the point to be stake out. 10.251m : Move the telescope near the zenith 79.6986gon 249.0404gon I : Move the telescope near the nadir Press key {ESC} back to stake out mode. MEAS R E M Stonex R2 PLUS Total Station - User Manual...

  • Page 45: Area

    P2 (N2, E2) P3 (N3, E3) … NOTE: The number of points: 3 ~ 30.  Make sure these points must be measured or listed clockwise or anticlockwise, or  mistake will result. Stonex R2 PLUS Total Station - User Manual...

  • Page 46: Area Calculation By Measured Data

    Make sure measure them clockwise or anticlockwise. 03:Pt_03 04:Pt_04 Press F2: [CALC] and the calculated area will display. CALC MEAS 5. Press F4: [OK] back to menu mode. Area Calculation PArea 0OK0 Stonex R2 PLUS Total Station - User Manual...

  • Page 47: Area Calculation By Reading Existed Coordinates

    5. Repeat steps 2 and 4 till all points are selected. Make sure read the points clockwise or anticlockwise. READ CALC 6. Press F2: [CALC], and the calculated area will display. Area Calculation Press F4: [OK] to escape. Area 0OK0 Stonex R2 PLUS Total Station - User Manual...

  • Page 48: Offset Measurement

    90°. When the offset point is positioned in front of or behind the target point, installs the offset point on a line linking the instrument station with the target point. Stonex R2 PLUS Total Station - User Manual...
  • Page 49 Press F2: [NEZ] to display NEZ coordinate; 346.9636gon 249.0298gon Press F3: [NO] back to step 6; Press F4: [YES] back to offset mode. R E C N E Z M NOS Y E S Stonex R2 PLUS Total Station - User Manual...

  • Page 50: Angle Offset Measurement

    Press F2: [NEZ] to display NEZ coordinate; 346.9636gon 249.0298gon Press F3: [NO] back to step 6; Press F4: [YES] back to offset mode. R E C N E Z M NOS Y E S Stonex R2 PLUS Total Station - User Manual...

  • Page 51: Dual-Distance Offset Measurement

    “4. Offset”, or press F3: [OFST] at P3 directly. 6.REM 7.Resection Offset 3. Select “4. Offset/2Dist” after inputting the instrument 1.Occ. Orientation 2.Offset/Dist occupied data, see “§6.1 Input the occupied point data”. 3.Offset/Angle 4.Offset/2Dist Stonex R2 PLUS Total Station - User Manual...
  • Page 52 Press F2: [NEZ] to display NEZ coordinate; 346.9636gon Press F3: [NO] back to step 6; 249.0298gon Press F4: [YES] back to offset mode. R E C N E Z M NOS Y E S Stonex R2 PLUS Total Station - User Manual...

  • Page 53: Mlm

    2. Aim at the start point P1, then press F4: [MEAS] and the measured data will display. 33.421ft 155.6594gon 3. Aim at the target point P2 and press F1: [MLM] to begin 355.9246gon measure, SD, HD, VD will display. M L M MOVE MEAS Stonex R2 PLUS Total Station - User Manual...

  • Page 54: Change The Starting Point

    2. After measuring the two points, press F2: -0.001m ], and press F4: [ ] to set the last MOVE 368.3854gon 243.4068gon measured point as new starting point, or press F3: MNOS Y E S ] to give up. Stonex R2 PLUS Total Station - User Manual...

  • Page 55: Rem

    4. Aim at the target accurately and press F2: [REM]. The 1.518ft height from ground to the target is displayed in “Ht”. Press 33.421ft 0.000ft F4: [MEAS] to repeat and press key {ESC} back to menu 15.790ft mode. R E M MEAS Stonex R2 PLUS Total Station - User Manual...

  • Page 56: Resection

    Z data only. Perform resection measurement, see “§ 12.1 Coordinate Resection” and “§ 12.2 Elevation Resection”.  Inputted known coordinate data and calculated data could be recorded in the current JOB. Stonex R2 PLUS Total Station - User Manual...

  • Page 57: Coordinate Resection

    5. Press F4: [YES] to use the measured data of the first Resection No.1Pt known point. 10.188m Press F3: [NO] to re-measure this point. 189.9284gon 47.2432gon You can also input target height here. Tgt.H 000000m TNOT Y E S Stonex R2 PLUS Total Station - User Manual...

  • Page 58: Elevation Resection

    2.Stake Out mode and then select “7. Resection”, or press F4: [RES] at 3.Area P3 directly. 4.Offset 5.MLM 6.REM 7.Resection Resection 2. Select “2. Elevation” and input the known point. 1.NEZ 2.Elevation Stonex R2 PLUS Total Station - User Manual...
  • Page 59 Press F3: [REC] to record the calculated result. Occ.Coord Press F4: [OK] to finish elevation resection. Only Z (elevation) of the instrument occupied coordinate is set. N and E values would not be overwritten. NEXT R E C TOKT Stonex R2 PLUS Total Station - User Manual...

  • Page 60: Resection Calculation Process

    The measured equation for the distance is prepared The normal equation is prepared Iterate 3 times Instrument occupied coordinates are calculated Difference from hypothetical coordinates ≦ 0.5mm Calculation of the Z coordinate Calculation ends Stonex R2 PLUS Total Station - User Manual...

  • Page 61: Precautions When Performing Resection

    (2) Measure one more known point which is not on the circle. (3) Perform a distance measurement on at least one of the three points. Stonex R2 PLUS Total Station - User Manual...

  • Page 62: Point Projection

    1. Press F2: [MENU] at P2 of basic measurement mode. Menu 1.Point projection 2.Stake out line 3.Traverse 4.Inverse 2. Turn to P2, select “3. Point projection”. 5.Polarize 6.Repeat Measure 7.Arc staking out Stonex R2 PLUS Total Station - User Manual...
  • Page 63 8. Press F2: [1:**] or F3: [%] to change the grade display 10.412m Grade 1:150 mode. 1： ＊＊ 0 ％0 HOKD NOTE: Defined baseline could be used in both stake out line measurement and point projection. Stonex R2 PLUS Total Station - User Manual...

  • Page 64: Point Projection

    Press F2: [REC] to record the coordinate as a known data. Press F4: [S-O] to switch to stake out measurement of the projected point. See “6 Stake out measurement”. Press key {ESC} to continue point projection of a new point. Stonex R2 PLUS Total Station - User Manual...

  • Page 65: Stake Out Line

    3. Input the instrument occupied data, see “§6.1 Input the 2.Define baseline occupied point data”. 3.Stake out line 4. Select “2. Define baseline”, following operations see “§13.1 Define baseline” procedures 5, 6 and 7. Stonex R2 PLUS Total Station - User Manual...

  • Page 66: Stake Out Line-Point

    【Procedure of stake out】 1. Select “3. Stake out line” after defining a baseline. Stake out line 1.Occ. Orientation 2.Define baseline 3.Stake out line 2. Select “1. Point” Stake out line 1.Point 2.Line Stonex R2 PLUS Total Station - User Manual...

  • Page 67: Stake Out Line/Line

    Make sure to define a baseline before this operation. Measured point Offline (-) Length Offset (horizontal direction) Profile view Measured point 2nd Pt 1st P Stonex R2 PLUS Total Station - User Manual...
  • Page 68 Length: Distance along the baseline from the first point to Fill 14.401m the measured point. Length 3.993m R E C MEAS 6. Aim at the next target and press F4: [MEAS] to continue the measurement. Stonex R2 PLUS Total Station - User Manual...

  • Page 69: Traverse Surveying

    300.9994gon 44.6568gon P2 MENU HOLD HSET E D M Menu 1.Point projection 2.Line stakeout 3.Traverse 2. Turn to P2, select “3.Traverse”. 4.Inverse 5.Polarize Traverse 1.Save coord 2.Read coord 3. Press “1.Save coord”. Stonex R2 PLUS Total Station - User Manual...

  • Page 70: Read Coordinate

    3. First aim the previous occupied point, then press [YES] to set the previous foresight point coordinate as the occupied point coordinate or press F3: [NO] to give up. > Set? 0NO0 Y E S Stonex R2 PLUS Total Station - User Manual...

  • Page 71: Inverse

    10.000 READ R E C 0OK0 5. The inversed value will display. Press F3: [NEXT] to continue, Coord Inverse press F4: [OK] back to menu mode. Azimuth -0.0002gon 0.000ft -29.383ft NEXT 0OK0 Stonex R2 PLUS Total Station - User Manual...

  • Page 72: Polar Coordinates Calculation

    Calc polar coord 4. The calculated data displays. Press F3: [REC] to record it in the list, and press F1: [OK] back to menu mode. 1000.000 1000.000 0.000 0OK0 R E C Stonex R2 PLUS Total Station - User Manual...

  • Page 73: Repetition Angle Measurement

    8. Recollimate the target B using the horizontal clamp and Angle Remeasure [2] tangent screw, press the F4:[HOLD] key. 90°20′00″ 45°10′00″ 9. Repeat 7 to 8 to measure the desired number of repetition. 0SET MEAS FREE H O L D Stonex R2 PLUS Total Station - User Manual...
  • Page 74 ● Horizontal angle can be accumulated up to (3600°00'00" – minimum reading) (horizontal angle right). In case of 5 second reading, horizontal angle can be accumulated up to +3599°59'55". ● Error will be displayed when the results differ from first measurement by more than ±30". Stonex R2 PLUS Total Station - User Manual...

  • Page 75: Arc Staking Out Measurement

    Fill/Cut – Cut value indicate that the rod is higher than the arc, fill indicates the it is lower In/Out(from Rod to A) – This is the distance you need to move in out to get to the arc. Stonex R2 PLUS Total Station - User Manual...

  • Page 76: Two Point Arc Staking Out

    Fill/Cut – Cut value indicate that the rod is higher than 12 27 49 the arc, fill indicates the it is lower Fill: 1.545 In/Out– This is the distance you need to move in out to MEAS get to the arc. Stonex R2 PLUS Total Station - User Manual...

  • Page 77: Three Point Arc Staking Out

    3. Input the coordinate of arc end point. Define/End PT Press F1[READ] to read the existed coordinate as stake out coordinate 11.282 -2.130 Press F4:[OK] to set the data. 1.503 READ R E C MEAS OK Stonex R2 PLUS Total Station - User Manual...
  • Page 78 Offset: 0.003m 0.003m Fill: 0.006m 7. Repeat moving and measuring the rod until all the stake MEAS data are accepted. Press F4: [ESC] to escape this program. Stonex R2 PLUS Total Station - User Manual...

  • Page 79: Road Staking Out Measurement

    1.Road File Select 2.Road File Rename 3.Road File Delete Clear all roads? 4.Road Initialize Road File Select Road File Road File Select ROAD1 Rename ROAD1 ROAD2 ROAD2 ROAD3 ROAD1 ROAD3 ROAD4 Stonex R2 PLUS Total Station - User Manual ROAD4 ROAD5 ROAD5...

  • Page 80: Input The Start Station

    3. Enter the start point station and coordinate, press F4: [OK] key. Road horizontal elements editing menu will HCurve/Start Point display. STATION: 0.000 Np : 0.000 Ep : 0.000 Zp : 0.000 0OK0 Type EndPile DELv LINEv CIR CURV Stonex R2 PLUS Total Station - User Manual...

  • Page 81: Input Road Horizontal Elements

    Type EndPile Line 100.000 2. Press F4: [ENT] key to confirm, back to the horizontal Circle 200.000 elements menu. Here EndPile means the end station of this element. DEL LINE CIR CURV Stonex R2 PLUS Total Station - User Manual...
  • Page 82 3. If you set the Direction is IN, here the inputted Rad is End radius of spiral, its start radius is default as ∞; if you set the direction is OUT, here the inputted is start radius of spiral, its end radius is default as ∞. Stonex R2 PLUS Total Station - User Manual...

  • Page 83: Input Spiral Element

    Spiral 300.000 Circle 400.000 automatically. Spiral 500.000 Line 600.000 DEL LINE CIR CURV Type EndPile Line 100.000 Spiral 200.000 Circle 300.000 Spiral 400.000 Line 500.000 DEL LINE CIR CURV Stonex R2 PLUS Total Station - User Manual...
  • Page 84 400.000 Spiral 500.000 Line 600.000 DEL LINE CIR CURV 4. After all the horizontal elements are confirmed, press Road Define [ESC] key back to previous menu. 1.Horizontal Curve 2.Vertical curve 3.Road Calculation Stonex R2 PLUS Total Station - User Manual...

  • Page 85: Input Road Vertical Elements

    Press F4:[ADD] key to add a new vertical element. VCurve/Element STATION： 0.000 2. Press F4 to display Vertical road element inputting 600.000m menu. Input the parameter for vertical element. Length 200m Press F4:[ENT] key to confirm. Stonex R2 PLUS Total Station - User Manual...

  • Page 86: Edit Vertical Road Element

    600.000 elements adjacent with deleted one will connect 200.000 570.000 300.000 685.000 automatically. FIST LAST DEL ADD For example, after delete the second element, the vertical road curve figure is shown below: Stonex R2 PLUS Total Station - User Manual...
  • Page 87 4. After all the horizontal elements are confirmed, press 480.000 685.000 FIST LAST DEL ADD [ESC] key back to previous menu. For example, after edit the second element, the vertical road curve figure is shown below: Stonex R2 PLUS Total Station - User Manual...

  • Page 88: Road Calculation

    Lwide: left width Rwide 4.000m Rwide: right width Press F4: [ENT] key to confirm. SPile 0.000 3.000 5. Repeat step 4 to input other road width. 100.000 5.000 300.000 6.000 FIST LAST DEL ADD Stonex R2 PLUS Total Station - User Manual...

  • Page 89: Additional Station Setting

    STATION: the road will take this width begin from this STATION: 155.500 point to next road width element Lwide 10.000m Rwide 10.000m Lwide: left width Rwide: right width Press F4: [ENT] key to confirm. Stonex R2 PLUS Total Station - User Manual...

  • Page 90: Road Calculation

    If following display, it means there are some staked points exist in this file already. Press F3: [YES] key to cover these points, or press F4:[NO] back to previous screen. OVERLAP YES NO Stonex R2 PLUS Total Station - User Manual...

  • Page 91: Road Staking Out Data View

    Ep : 0.000 right station, “L” means left station. Zp : 600.000 Press F1: [NEXT] key to display next station. Code 0.000C Press F2: [PREV] key to display previous station. NEXT PREV Stonex R2 PLUS Total Station - User Manual...

  • Page 92: Road Stake Out

    4. Press F4: [ENT] to enter coordinate staking out screen, Np : 0.000 Ep : 0.000 see chapter “7.2 Coordinates Stake out Measurement” to Zp : 600.000 do that. READ PREV NEXT ENT Stonex R2 PLUS Total Station - User Manual...

  • Page 93: Road File Management

    4. Press ▼ or ▲ arrow key to move cursor, after reach to the ROAD3 job you want to select, press [ENT] key to confirm. The ROAD4 ROAD5 program will back to road file management menu ROAD6 automatically. ROAD7 Stonex R2 PLUS Total Station - User Manual...

  • Page 94: Rename A Road File

    4. Input new name, press [ENT] key to confirm. The Stonex program will back to road file management menu automatically. NOTE: The max length of road file name is 8 characters, special symbols cannot be accepted, such as “#, ? /……” Stonex R2 PLUS Total Station - User Manual...

  • Page 95: Delete A Road File

    5. Press F4:[YES] to delete this file, all the inputted and calculated data in this file will be cleared, and the file name change to initial status. Road File Select ROAD1 ROAD2 ROAD3 ROAD4 ROAD5 ROAD6 ROAD7 Stonex R2 PLUS Total Station - User Manual...

  • Page 96: Delete All Road Files

    Pay more attention to this operation, after initialization, all the files back to initial status, the deleted elements and data can not be resumed. Road File Select ROAD1 ROAD2 ROAD3 ROAD4 ROAD5 Stonex R2 PLUS Total Station - User Manual...

  • Page 97: Record

    0 directly. Temp :25℃ Pressure 4. Press F1: [OK] to set the station coordinate. 5. Set the backsight information, and back to Rec menu. 0PPM 0RES0 REC 0OK Stonex R2 PLUS Total Station - User Manual...
  • Page 98 The temperature range: -30 ~ 60℃.  The pressure range: 500 ~ 1400 hPa（mbar）/ 375 ~ 1050 mmHg /14.8～41.3 inch Hg/  7.3~20.3 Psi. The ppm range: -499 ~ 499 ppm.  Stonex R2 PLUS Total Station - User Manual...

  • Page 99: Collect Angle Data

    148.7080gon 352.4228gon PP01 Press F2: [0SET] to set horizontal angle as 0 Tgt.H 1.45ft Code 4. Repeat step 3 to collimate and collect other points angle AUTO 0SET R E C data.. Stonex R2 PLUS Total Station - User Manual...

  • Page 100: Distance & Coordinate Data

    Measured distance and coordinate data are recorded simultaneously.  Press [FUNC] key, the screen will switch between coordinate mode and distance mode.  REC/Dist+C Free 43995 19.655 81°26′35″ 359°48′04″ Tgt.H 1.45ft Code NO002 AUTO DIST OFST R E C Stonex R2 PLUS Total Station - User Manual...

  • Page 101: Record Note

    2.Angle data 3.Collect Points 4.Note 5.View REC/Note Free 13996 ROAD100 3. Input note and press F1: [OK] to save. The max length is 60 characters. 0OK0 NOTE: Max note length is 60 characters. Stonex R2 PLUS Total Station - User Manual...

  • Page 102: View Data

    Tgt.H 1.45ft Code NO002 NEXT PREV NOTE: If the point number is the same, only the newer recorded data could be viewed.  The data inputted beforehand could be viewed here.  Stonex R2 PLUS Total Station - User Manual...

  • Page 103: Select Job

    EDM OCC OFST R E C JOB1 2. Select 1. JOB select to set job “22.2 Select a JOB” to 1. JOB select operate. JOB selection JOB2 S.F. =1.000000 Coord search JOB :JOB3 LIST S.F. Stonex R2 PLUS Total Station - User Manual...

  • Page 104: Job Management

    22. JOB Management 22.1 Storage Media Select For R2 PLUS series, SD card slot is an standard equipment, user can record the measured data in internal memory or SD card directly. Before your work, it is necessary select appropriate storage media.

  • Page 105: Select A Job

    5.Com setting JOB selection JOB2 S.F. =1.000000 4. Press F1: [LIST] to display all JOBs on three pages. Coord search JOB :JOB3 Press F4: [S.F.] to modify the scale factor. LIST S.F. Stonex R2 PLUS Total Station - User Manual...

  • Page 106: Rename A Job

    2.JOB rename 3.JOB delete 4.Download 5.Com setting 4. Input a new name and press key {ENT} to save the setting. JOB rename The maximum length of a JOB name is 12 characters. JOB-Paul0100 Stonex R2 PLUS Total Station - User Manual...

  • Page 107: Delete A Job

    JOB that you wanna deleteand press key {ENT}. MYJOB JOB-B 5. Press F3: [NO] to give up or press F4: [YES] to delete the JOB. JOBA Confirm to delete? Y E S Stonex R2 PLUS Total Station - User Manual...

  • Page 108: Output Job Data

    Measured data, occupied data, known point data, note and coordinates data existed in all JOBs could be outputted to PC via serial port. NOTE: The software STONEX exchange is available in your CD-ROM or download from  www.stonexpositioning.com. Be sure the communication port setting of instrument and PC is the same, see “§3.8.3.

  • Page 109: File Copy

    4. Press F3: [NO] to give up or press F4: [YES] to copy. JOBCDD 5. For more information, please read the Help file of Confirm to Copy? STONEX Exhange on chapter “2.3 Data transfer via SD card”. Y E S Stonex R2 PLUS Total Station - User Manual...

  • Page 110: Connect Pc Via Usb Port

    22.7 Connect PC via USB port R2 PLUS Series is equipped with USB port, you can connect it with PC for data transferring. 【Procedure of USB port connecting】 1. Select [MEM] in the status mode to enter into memory Memory 1.JOB...

  • Page 111: Known Data Management

    Press F4: 10.500 [OK] to save settings and continue to input other points. 11.544 100.000 Press key {ESC} back to the known data mode. 0OK0 Stonex R2 PLUS Total Station - User Manual...

  • Page 112: Input Known Point Coordinate Via Rs-232C

    3.Delete 4.View 5.Clear 6.Com setting 4. Run STONEX Exchange software PC, see the help file of STONEX Exchagne to upload known data to current Com input JOB, the chapter is “2.1.2 Upload Known data from PC to R1 internal memory”.

  • Page 113: Delete Known Point Coordinate

    Press F2: [PREV] to display the previous point data; 010.919 0.000 Press F4: [DEL] to delete it and continue to delete other 0.000 010.919 points; Press key {ESC} back to known data management mode. NEXT PREV D E L Stonex R2 PLUS Total Station - User Manual...

  • Page 114: View Known Points Data

    010.919 5. The coordinate and point number will display. Press F1: [NEXT] to display the next point data; NEXT PREV D E L Press F2: [PREV] to display the previous point data. Stonex R2 PLUS Total Station - User Manual...

  • Page 115: Clear All Known Points' Data

    6.Com setting 4. Press F3: [NO] back to known data management. Clear Confirm to delete? Press F4: [YES] to delete all known points data of the active JOB completely. 0NO0 Y E S Stonex R2 PLUS Total Station - User Manual...

  • Page 116: Code Management

    Press F4:[DEL] key to selected code. 002:CODEA 003:CODEB 004:CODEBCD NOTE: 005:CODEBDEG 006:CODEBES -The codes recorded in memory could be read for all JOBs. 007: -50 codes can be inputted. ↑↓.P T O P LAST DEL Stonex R2 PLUS Total Station - User Manual...

  • Page 117: Clear All Codes

    JOBs completely. Confirm to delete? 0NO0 Y E S 5. If you select “1.Code Edit”, you will find no code inside. 001: 002: 003: 004: 005: ↑↓.P T O P LAST DEL Stonex R2 PLUS Total Station - User Manual...

  • Page 118: Warning And Error Messages

    JOB or coordinate data from memory. “No data” When searching for coordinate data or searching for code data, the search stopped either because the item in question does not exist or the data volume is large. Stonex R2 PLUS Total Station - User Manual...

  • Page 119: Check And Adjustment

    4. If the difference is over ±3mm after the preceding operations, it is necessary to reset the instrument constant. Ⅱ. Adjustment If the instrument const is necessary to reset, please contact STONEX service representative to perform that. Stonex R2 PLUS Total Station - User Manual...

  • Page 120: Tubular Level

    2. Level it accurately by the plate level. Adjusting pin 3. Adjust the three adj-screws to center the bubble by a wrench. NOTE: Be careful when adjusting the three screws, and the tightening tension is identical for them. Stonex R2 PLUS Total Station - User Manual...

  • Page 121: The Optical Sight

    (5) Repeat the operation in (3) and (4) until coincide the center mark of the plummet and cross mark on the ground. Stonex R2 PLUS Total Station - User Manual...

  • Page 122: Laser Plummet

    (5) Repeat operation 3, 4 until the instrument keeps leveling and the laser spot coincides with the cross mark when rotating alidade of instrument to any direction. 26.7 Vertical Cross-hair on Telescope Ⅰ. Check (1) Set the instrument up the tripod and carefully level it. Stonex R2 PLUS Total Station - User Manual...

  • Page 123: Horizontal Collimation Error C

    (2) Aim at the cross-hairs of collimator or the obvious target at a distance. Gets the face left angle reading H1 and the face right angle reading Hr. (3) Calculating the horizontal collimation error C according to C=（Hl- Hr±180°）/2, if C<8″, no Stonex R2 PLUS Total Station - User Manual...

  • Page 124: Tilt Sensor

    2.Inst. config Press ESC then press F4: [CNFG] to enter into config 3.Inst. adjust 4.Com setting mode. 5.Unit 2. Select “3.Inst adjust” to set instrument basic parameters, 6.Date & Time two items display. Stonex R2 PLUS Total Station - User Manual...

  • Page 125: Vertical Index Error

    Warning: Before starting this operation, be sure to read this manual carefully, otherwise it may cause data faulty. Because of the close relationship between vertical index and compensator zero position, it is necessary to check and adjust compensator zero position before adjusting vertical circle, the Stonex R2 PLUS Total Station - User Manual...
  • Page 126 180°/200gon and sight the same point, then press F3: [OK]. Take F2 0OK0 6. Press F3: [YES] to set the correction, and press F4: [NO] Index Error to give up. 0.0048gon 0.0012gon Set ? Y E S Stonex R2 PLUS Total Station - User Manual...

  • Page 127: Edm Optical Axis And The Telescope Sighting Axis Error

    (5) Observe the laser spot, if the laser spot coincides with the cross-mark of reflective sheet, adjustment is unnecessary. NOTE: 1. Laser radiation—Avoid direct eye exposure. 2. If the instrument needs adjustment, please contact your local dealer. Stonex R2 PLUS Total Station - User Manual...

  • Page 128: Technical Data

    1 to 3000m/Class 1 1000~7000m/Class 3R Reflective sheet/RP60 1 to 800m Accuracy Prism mode 1.5mm+2ppm/1mm+1.5ppm (optional) Reflective sheet/RP60 3mm+2ppm Reflectorless mode R2-2 PLUS 350/R2-5 PLUS 350 3mm+2ppm (1-150m)/5mm+2ppm(≧150m) R2-2 PLUS 500/R2-5 PLUS 500 3mm+2ppm (1-200m)/5mm+2ppm(≧200m) Stonex R2 PLUS Total Station - User Manual...
  • Page 129 Field of view 4° Laser plummet* Accuracy ±1mm/1.5m Laser class Class 2/IEC60825-1 Laser wave length 635nm Display 8 lines×24 characters (128x240 dots) Memory Internal memory 60000 points External SD card 60000 points Stonex R2 PLUS Total Station - User Manual...
  • Page 130 FDJ6-Li (100V to 240V 50/60Hz) Charging time Approx. 4 hours Others 32-bit EDM technology Digital signal processing, single mainboard Build-in temp.& pressure sensor Standard Working temperature -20°～+50℃ Dimension 220×184×360mm(W×D×H) Weight 5.5kg Water proof IP55(IEC60529) Stonex R2 PLUS Total Station - User Manual...
  • Page 131 *1 Technical Data for R2 PLUS series EDM Reflectorless Measurement Range Option Kodak Gray Range D Range E Range F Card White side, R2-2 PLUS 350 90% reflective R2-5 PLUS 350 Gray side, 18% reflective White side, R2-2 PLUS 500...

  • Page 132: Accessories

    Instruction manual 1 pcs  CD-ROM 1 pcs  USB Communication cable 1 pcs  Reflective sheet/RP30 4 pcs  Reflective sheet/RP60 1 pcs  Laser caution sign board 1 pcs  Stonex R2 PLUS Total Station - User Manual...

  • Page 133: Appendix I: Atmospheric Correction Formula And Chart (Just For Reference)

    Appendix I: Atmospheric correction formula and chart (Just for reference) Factory setting: temperature: 20℃, pressure:1013hPa, 0ppm The correction: Kpt＝278.960-0.2902*p/(1＋0.0036*t) Where: p--Pressure value (hPa) t--Temperature value (℃) Kpt--Atmospheric correction (ppm) Example: t=20℃, p=1013hpa, L0=1000m. Then: Kpt=4ppm L=L0(1+Kpt)=1000×(1+4×10-6)=1000.004m The atmospheric value is obtained easily with the atmospheric correction chart. Find the measured temperature in horizontal axis, and pressure in vertical axis on the chart.

  • Page 134: Appendix Ii：correction For Refraction And Earth Curvature

    HD=SD COS§ VD=SD ∣SIN§∣ NOTE: The factory setting for the refraction coefficient K is 0.142. Refer to the “§3.8.1 Measure Condition Setting” to change the value. Stonex R2 PLUS Total Station - User Manual...

  • Page 135: Appendix Iii: Connect The R2 Plus Series With Pda

    Set the communication parameters on the PDA, they must be same with R2 PLUS series’s. And select the “2-Way” in communication setting. And then the PDA will sending data to R2 PLUS series to test the communication, if they can not communication, check the cable connection and parameters to try again.

  • Page 136: Appendix Iv Connect The R2 Plus Series And Pda With Bluetooth

    Appendix IV Connect the R2 PLUS series and PDA with Bluetooth 1. Power on, press Config Key, select Com setting. Config 1.Meas condition 2.Inst config 3.Inst adjust 4.Com setting 5.Unit 6.Date & Time 7.Key Function 2. Set Baud rate as 9600, Comode as B-TOOTH...
  • Page 137 Then connect your device and R2-2 PLUS 500 through Bluetooth. There is no pairing code for R2 PLUS series. Run SurvCe of Carlson, and follow the procedure of previous paragraph .Now you can select Bluetooth like connection , instead of RS232 by cable .Do the connection.

  • Page 138: Appendix V: Standard Limited Warranty

    STONEX® agree to repair or replace the defected instrument within thirty (30 ) days, only if STONEX® recognizes that the defects of the instrument are not caused by human factors or no obvious damage to its surface is visible.
  • Page 139 In some cases, returns of special items will require a re-stock fee . Acceptance of returned merchandise is final only after inspection by STONEX®. Above terms and (policy shall apply as for hardware.) Dealers needs to follow STONEX® repair/service procedure (see appendix 4) to achieve a better and prompt service result.
  • Page 140 PRODUCT FAILS TO WORK AS WARRANTED ABOVE, CUSTOMER’S SOLE AND EXCLUSIVE REMEDY SHALL BE REPAIR OR REPLACEMENT. IN NO EVENT WILL STONEX®, ITS AFFILIATES OR SUPPLIERS BE LIABLE TO CUSTOMER OR ANY THIRD PARTY FOR ANY DAMAGE IN EXCESS OF THE PURCHASE PRICE OF THE PRODUCT. THIS LIMITATION APPLIES TO DAMAGES OF ANY KIND WHATSOEVER INCLUDING (1) DAMAGE TO, OR LOSS OR CORRUPTION OF, CUSTOMER’S RECORDS, PROGRAMS,...
  • Page 141 If dealer wants to repair an instrument under warranty period on their site: 1) If dealers (don’t) have the part in stock they have to send an official order to STONEX® and pay for it and then so STONEX® will send the new part to them so they can repair the instrument.

  • Page 142: Appendix Vi: Fcc Statements

    This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. Stonex R2 PLUS Total Station - User Manual...

  • Page 143: Appendix Vii: Environmental Recycling

    FOR COUNTRIES OUTSIDE EUROPEAN UNION (EU) The treatment, recycling, collection and disposal of electric and electronic devices may vary in accordance with the laws in force in the Country in question. Stonex R2 PLUS Total Station - User Manual...
  • Page 144 STONEX® SRL Via Cimabue, 39 - 20851 Lissone (MB) Stonex R2 PLUS Total Station - User Manual Tel : +390392783008 ; +390392785575 | Fax :+390392789576 www.stonexpositioning.com | info@stonexpositioning.com...

Table of Contents

Save PDF
