LEGRAND 0 648 40 Quick Manual

Connected mobile power outlet
0 648 40
This pack is a connected accessory which requires you to buy and install the «... with
Netatmo» connected starter pack first.

Pack contents

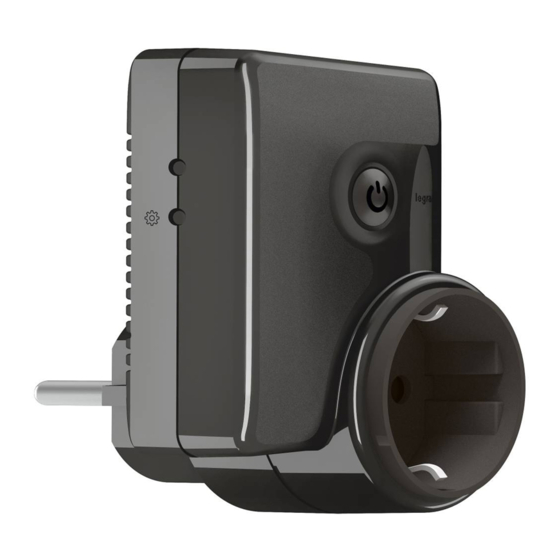

Connected mobile power outlet
Frequency bands: 2.4 - 2.4835 GHz
Power level: < 100 mW

Before you start:

To control a power outlet, only use the following products:
ON/OFF switch
button and LED
indicator
AND
x 1
Wireless switches (peripherals) for all control points (not
Connected mobile power included in this pack)
outlet

Safety instructions

This product should be installed in compliance with installation rules, preferably by a qualified electrician. Incorrect installation and/or incorrect use can
lead to risk of electric shock or fire. Before carrying out the installation, read the instructions and take account of the product' s specific mounting location.
Do not open up, dismantle, alter or modify the device except where specifically required to do so by the instructions. All Legrand products must be
opened and repaired exclusively by personnel trained and approved by Legrand. Any unauthorised opening or repair completely cancels all liabilities
and the rights to replacement and guarantees. Use only Legrand brand accessories.
16 A - 230 V~
3680 W max
AND/OR
x 1 x 1
or several or several

Configure the connected mobile power outlet

*
Press the centre of the wireless master switch until
the indicator lights up in green, release and the
indicator will go off
*(not included in this pack)
The indicator of the ON/OFF button on the connected mobile power outlet initially lights
up in red. Press the button until the indicator flashes in green, then wait for the indicator to
light up steady in green: configuration is complete.
Short press on the wireless master switch to finalise
the installation.
The indicator on the connected mobile power outlet
goes off.
Open the Legrand Home + Control application and
follow the instructions.
*
Connect the connected mobile
power outlet
2
