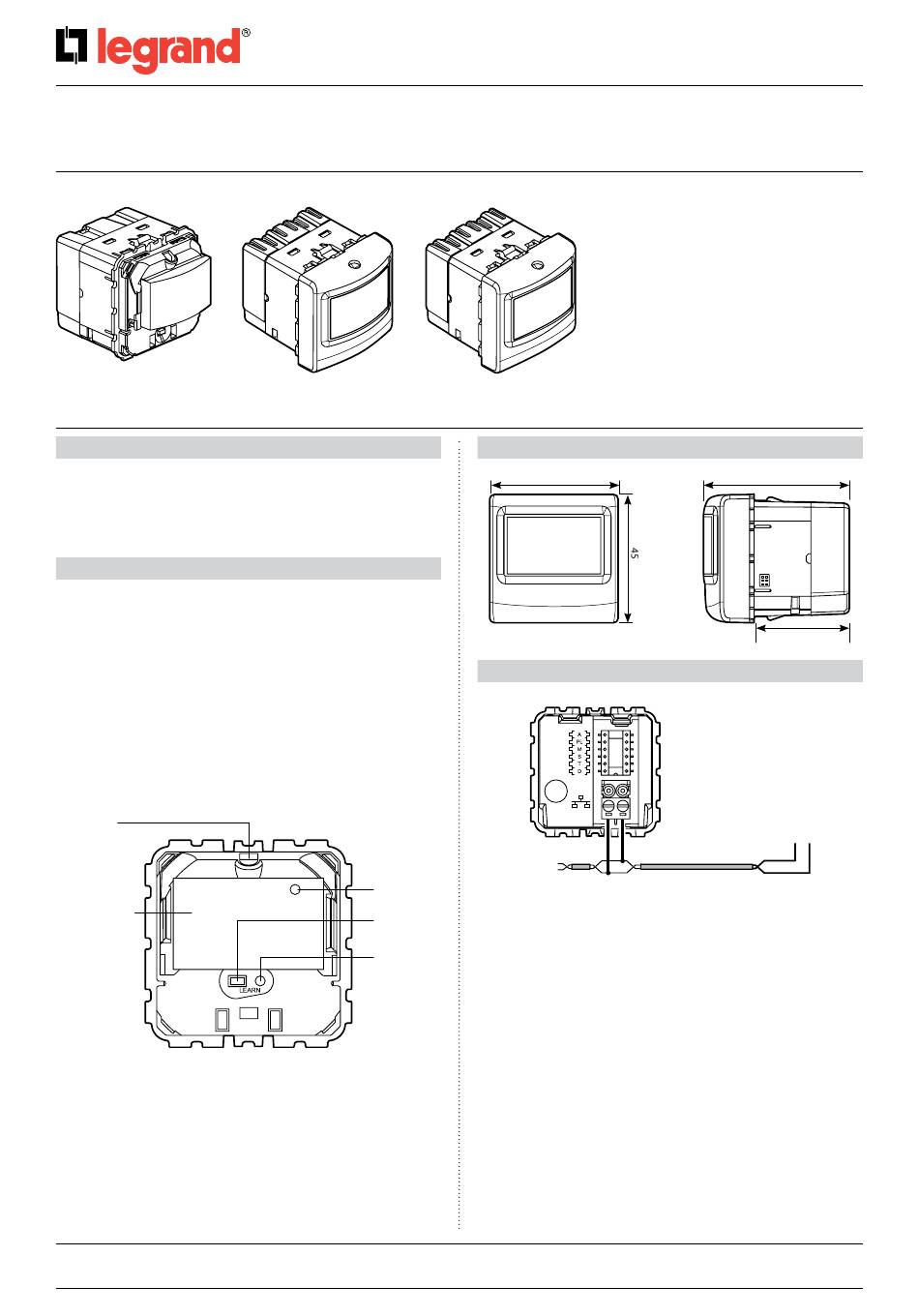

Switch sensor - PIR
SCS
0 672 25
1. USE
This device allows a light source to be controlled automatically through
the detection of presence in the surveillance zone.
Presence sensor with 180° detection angle.
Detection type: infrared (PIR)
Type of fitting: wall flush-mounting
2. TECHNICAL FEATURES
Voltage: 27 V=
No-load power consumption: 12 mA
Connection between the sensor and the controller: BUS/SCS cable
Wiring: 2 x 0.35 mm
2
Flush-mount box: 40 mm min.
Weight: 60 g
Impact resistance: IK04
Penetration by solid and liquid matter: - IP20 mechanism alone
Usage temperature: - 5°C to + 45°C
Storage temperature: - 20°C to + 70°C
Type of terminals: screw
Light level
cell
Sensor /
PIR Sensor
Technical data sheet: S000077071EN-2
0 784 85
- IP41 installed product
with finger plate
Detection
LED
LEARN
button
LED
Updated: 11/06/2014
Catalogue number(s): 0 672 25 - 0 784 85 - 5 740 46/96
5 740 46
5 740 96
3. DIMENSIONS
45
4. CONNECTION
Pressing the auxiliary control enables the load to be switched on or off
manually. If the control is not pressed, the sensor will cut off the load
at the end of the time delay or when the light level threshold has been
reached.
CONTENTS
1. Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
2. Technical characteristics . . . . . . . . . . . . . . . .1
3. Dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
4. Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
5. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
6. Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
7. Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
8. Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . .3
9. Performance. . . . . . . . . . . . . . . . . . . . . . . . . . . .4
10. Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . .5
11. Standards and approvals . . . . . . . . . . . . . . . .5
12. Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . .5
51
BUS/SCS
Created on: 17/12/2012
Page
35
1/5
