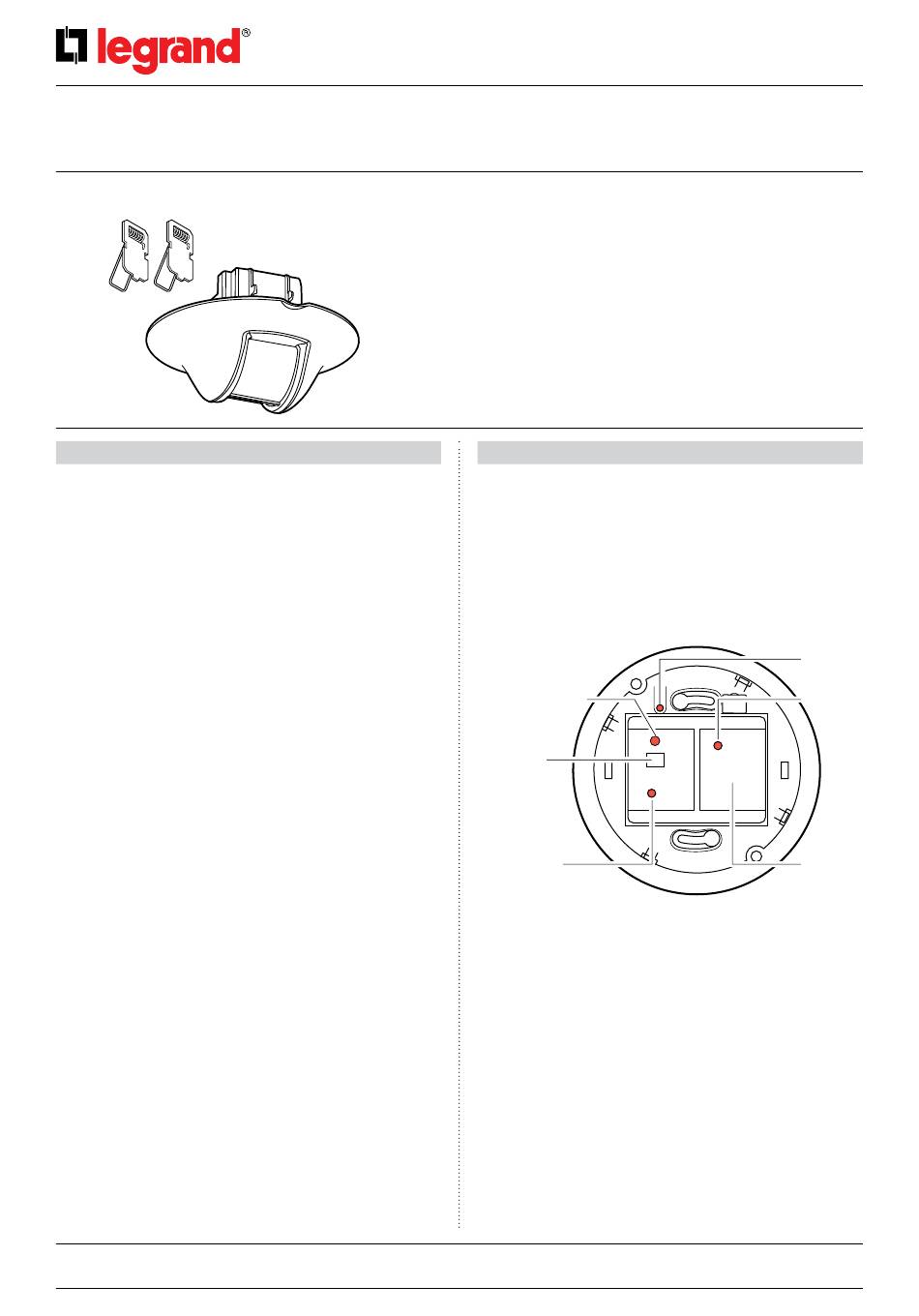

LEGRAND 0 489 36 Quick Start Manual

PIR corridor sensor
(DALI)
1. USE
DALI sensor Cat. No: 0 489 36 uses PIR (passive infrared) technology to
detect movement, and also incorporates an light level meter.
It can be surface-mounted on a concrete ceiling using box
Cat. No. 0 488 75, or flush-mounted directly in a suspended ceiling using
claws or in a flush-mounting box Cat. No. 0 800 31.
It is suitable for indoor passageways such as corridors, and can manage
a group of 64 ECGs maximum.
This sensor is fully configured using configuration tool Cat. No. 0 882 30/
BMSO4001 with which it is possible to:
• Control a single zone or group
• Distribute DALI ECG addresses
• Pair DALI ECGs with their sensor
• Designate Master and Slave sensors
• Define the standby level when there is no detection
• Define the standby time
• Configure all the other sensor settings (for example, daylight
setpoint, time the lighting remains on after detection, choice of
detection technology, operating mode, etc.)
DALI sensor Cat. No. 0 489 36 is powered with 16 VDC by the DALI bus.
A DALI power supply Cat. No. 0 035 15 or 0 035 13 can supply this voltage
to the DALI BUS with a maximum of 200 mA.
Technical data sheet: S000088483EN_3
2. TECHNICAL CHARACTERISTICS
Voltage: 16 V=
No-load power consumption: 10 mA
Usage temperature: -5°C to +45°C
Storage temperature: -20°C to +70°C
Impact resistance: IK04
Penetration by solid and liquid matter: IP41
Weight: 114 g
Light level cell
IR transmission/
reception cell
Light level test
Updated: 02/09/2022
Cat. No(s): 0 489 36
CONTENTS
1. Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
2. Technical characteristics . . . . . . . . . . . . . . . . . .1
3. Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
4. Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
5. Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
6. Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
7. Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
8. Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
9. Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
10. Standards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
11. Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . .6
Test button
Created: 02/01/2017
Page
Learn LED
PIR sensor
1/6
