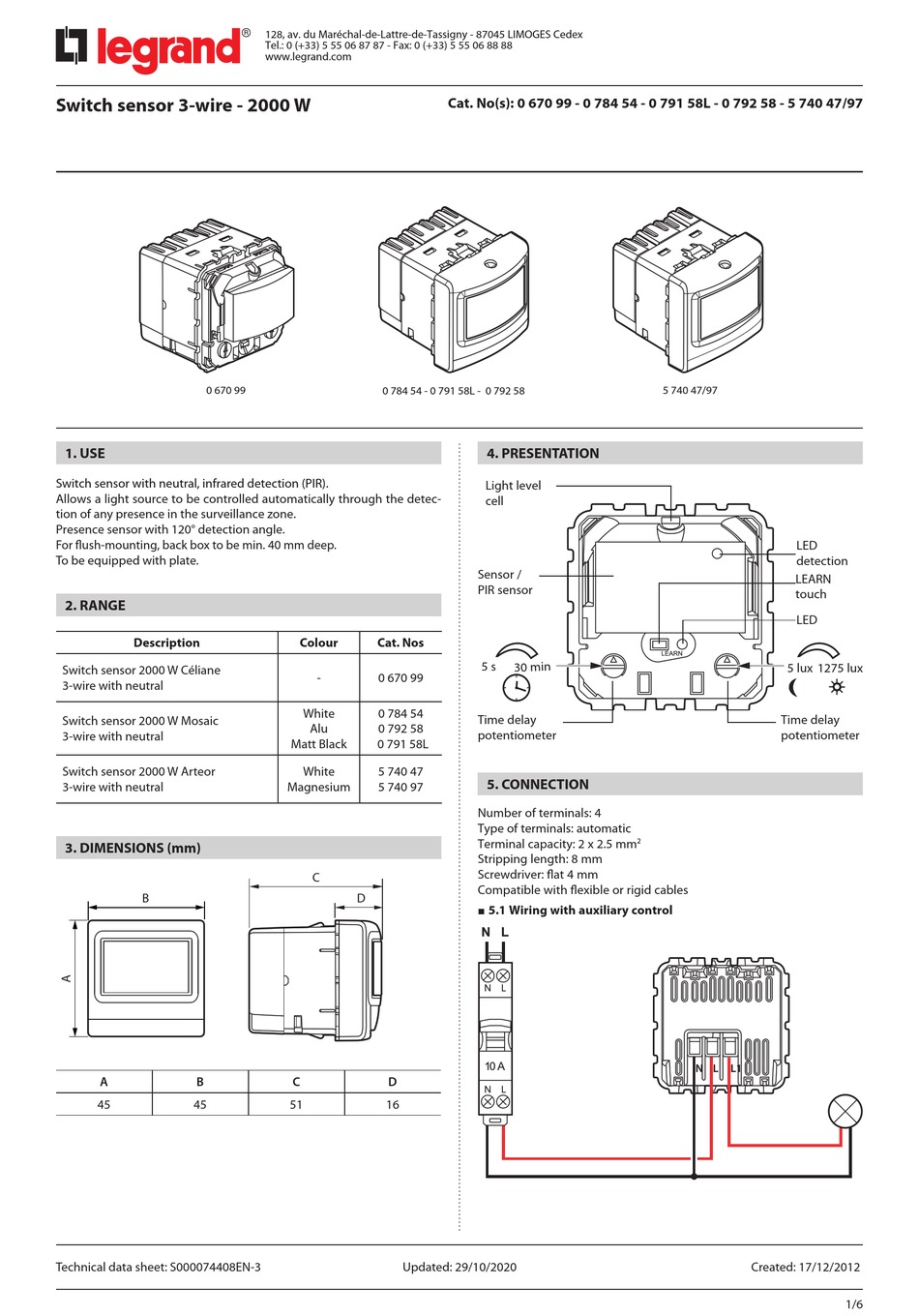

LEGRAND 0 670 99 Manual

Switch sensor 3-wire - 2000 W
0 670 99
1. USE

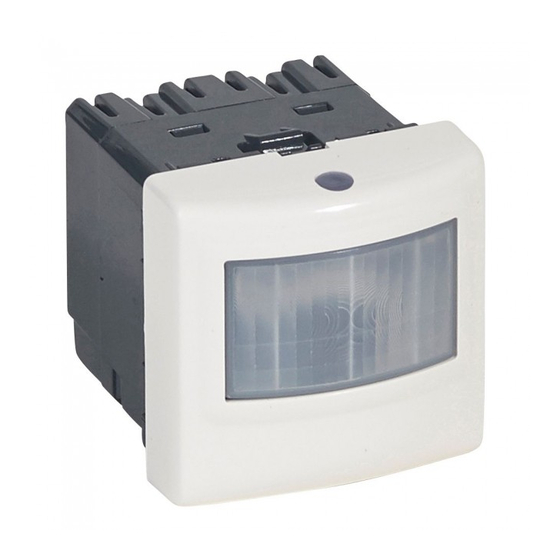

Switch sensor with neutral, infrared detection
Allows a light source to be controlled automatically through the detec-
tion of any presence in the surveillance zone.
Presence sensor with 120° detection angle.
For flush-mounting, back box to be min. 40 mm deep.
To be equipped with plate.
2. RANGE
Description
Switch sensor 2000 W Céliane
3-wire with neutral
Switch sensor 2000 W Mosaic
3-wire with neutral
Switch sensor 2000 W Arteor
3-wire with neutral
3. DIMENSIONS (mm)
B
A B
45 45
Technical data sheet: S000074408EN-3
128, av. du Maréchal-de-Lattre-de-Tassigny - 87045 LIMOGES Cedex
Tel.: 0 (+33) 5 55 06 87 87 - Fax: 0 (+33) 5 55 06 88 88
www.legrand.com
0 784 54 - 0 791 58L - 0 792 58
(PIR).
Colour Cat. Nos
- 0 670 99
White 0 784 54
Alu 0 792 58
Matt Black 0 791 58L
White 5 740 47
Magnesium 5 740 97
C
D
C D
51 16
Updated: 29/10/2020
Cat. No(s): 0 670 99 - 0 784 54 - 0 791 58L - 0 792 58 - 5 740 47/97
4. PRESENTATION
Light level
cell
Sensor /
PIR sensor
5 s
Time delay
potentiometer
5. CONNECTION
Number of terminals: 4
Type of terminals: automatic
Terminal capacity: 2 x 2.5 mm
Stripping length: 8 mm
Screwdriver: flat 4 mm
Compatible with flexible or rigid cables
 5.1 Wiring with auxiliary control
5 740 47/97
LED
detection
LEARN
touch
LED
5 lux 1275 lux
Time delay
potentiometer
2
Created: 17/12/2012
