Traxon Media Tube HO Mounting Manual

Direct View Tube
23mm / 0.9"
DETAIL A
24mm / 0.94"

Diffused Tube

29mm / 1.14"
DETAIL B

Mounting

TAK!

Water-proof

IMPORTANT NOTE:

If no "Tak!" sound is heard or connector still not mated
well, push both connectors inwards and manually rotate
spring head of male connector in the locking direction.

Tube-to-Tube Clearance

www.traxontechnologies.com
©2022 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U. PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE
WITHOUT NOTICE.

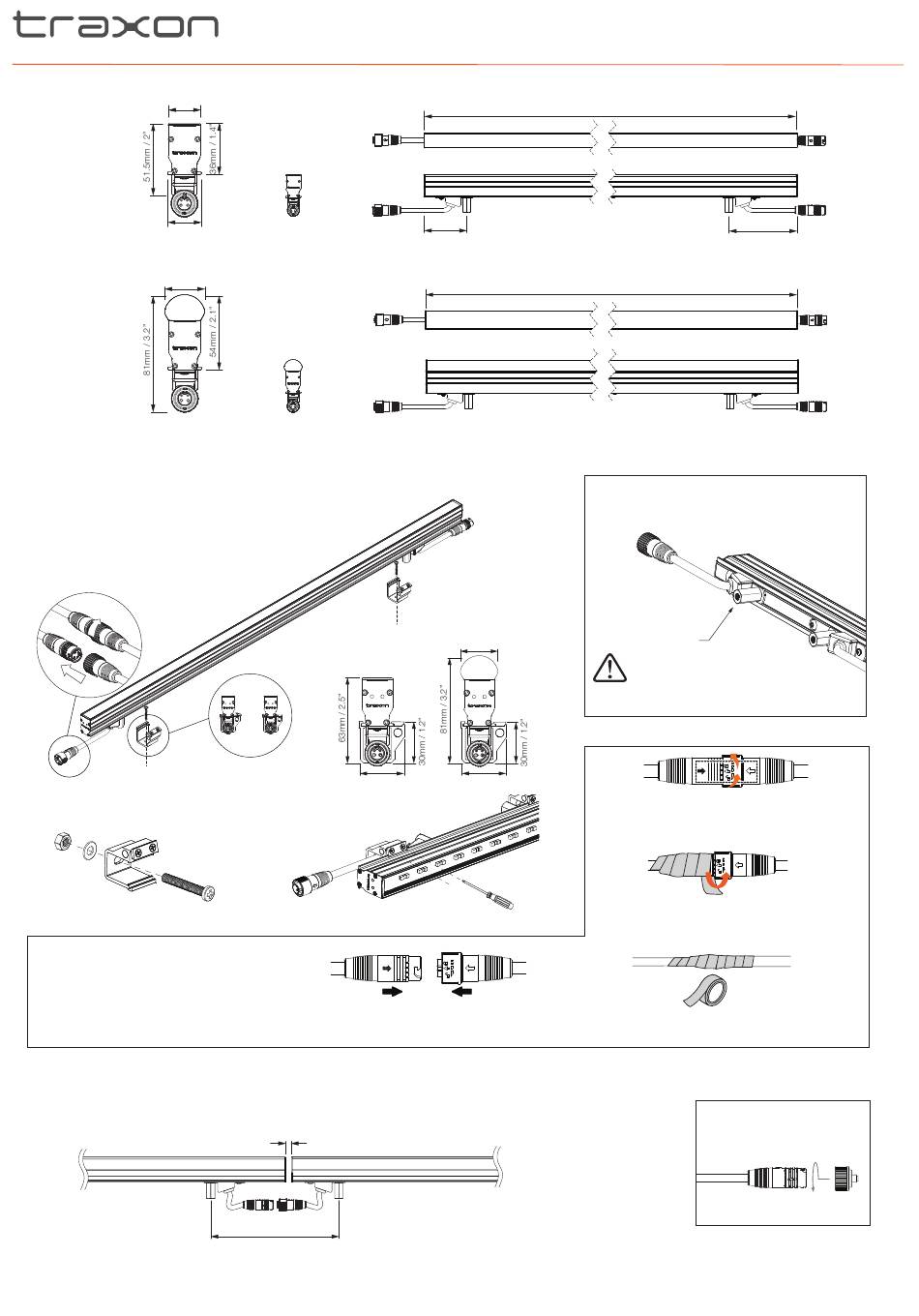

Mounting Guide
See DETAIL A
See DETAIL B
33mm / 1.3"
1. By pushing the cable connectors inwards, quick lock
connectors shall be mated and locked automatically.
To maintain consistent LED pitch and to
allow for thermal expansion for Media Tubes.
>4mm/0.16"
182mm / 7.2"
296mm, 596mm, 896mm, 1196mm, 1496mm / 11.7", 23.5", 35.3", 47.1", 58.9"
69mm / 2.7"
296mm, 596mm, 896mm, 1196mm, 1496mm / 11.7", 23.5", 35.3", 47.1", 58.9"
29mm / 1.14"
33mm / 1.3"
1~1.2Nm
1~1.2Nm

Connect

*For details, refer to the 3M Scotch
Pour maintenir le pas constant entre
les LEDs et absorber la dilatation
thermique des Media Tubes.
02/22 V0.8
M ed i a T u b e
M o u n ti n g Gu id e
109mm / 4.3"
The Max. projected area: 0.081m
Use Rear Studs For Alternative Mounting
Utiliser les goujons taraudés pour un montage différent
M6 x 23mm
Loosen mounting stud may lead to
water ingression into Media Tube.
Ne pas desserrer les goujons taraudés
sous perte d'étanchéité du Media Tube.

TAK! and lock

2. Locking requirement of the quick lock connectors after mated:
• "Tak!" sound should be heard
• All 3 arrows should be in one straight line
• Connector cannot be pull out

Wrapping

3. Wrap female and male connector as well as end cap with 3M
Scotch Rubber Splicing Tape 23 (or other similar self-
amalgamating rubber tape) for secondary protection in the
direction opposite to the unlocking direction.
4. 3M Scotch Rubber Splicing Tape 23* should be applied in
®
successive half-lapped, level-wound layers until desired buildup is
reached.
® Rubber Splicing Tape 23 Data Sheet.

End Cap Seal on Last Tube

Bouchon d'étanchéité à
monter sur le dernier tube
H O
®
2

Connector End Cap

TU.AC.0600000
1 of 2
