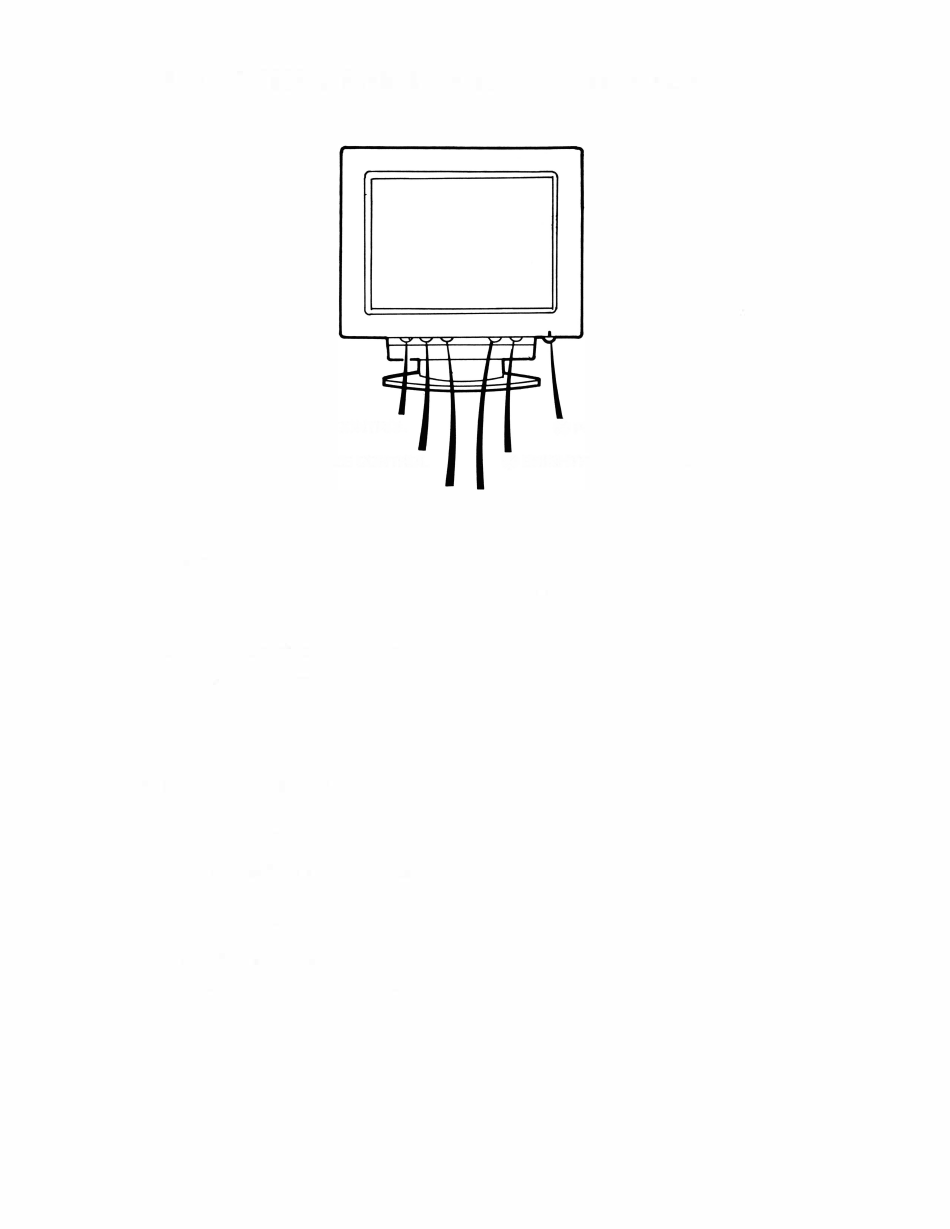

ADJUSTING THE FRONT CONTROLS

8
V. POSITION C
ev.s1z
0
H. POSITION CONTROL
0
ON/OFF (Power Switch)
Used to turn the power ON or OFF. When the power is ON, the LED power indicator, located on the f ront
of the monitor, is lit.
8
BRIGHT (Brightness Control)
Used to adjust the brightness of the background.
8
CONT (Contrast Control)
Used to adjust the sharpness of the characters.
8
H.POSI (Horizontal Position Control)
Adjust this knob for proper horizontal display position. Turn clockwise to reposition display to the right,
counterclockwise to reposition to the left.
8
V.SIZE (Vertical Display Size Control)
Adjust this knob for the proper vertical size of the display. Turn cl ockwise for l arger display,
counterclockwise for a smaller display.
8
V.POSI (Vertical Position Control)
Adjust this knob for proper vertical positioning of the display.
ONTROL
8
BRIGHT
E CONTROL
8

CONTRAST CONTROL

- 4 -
