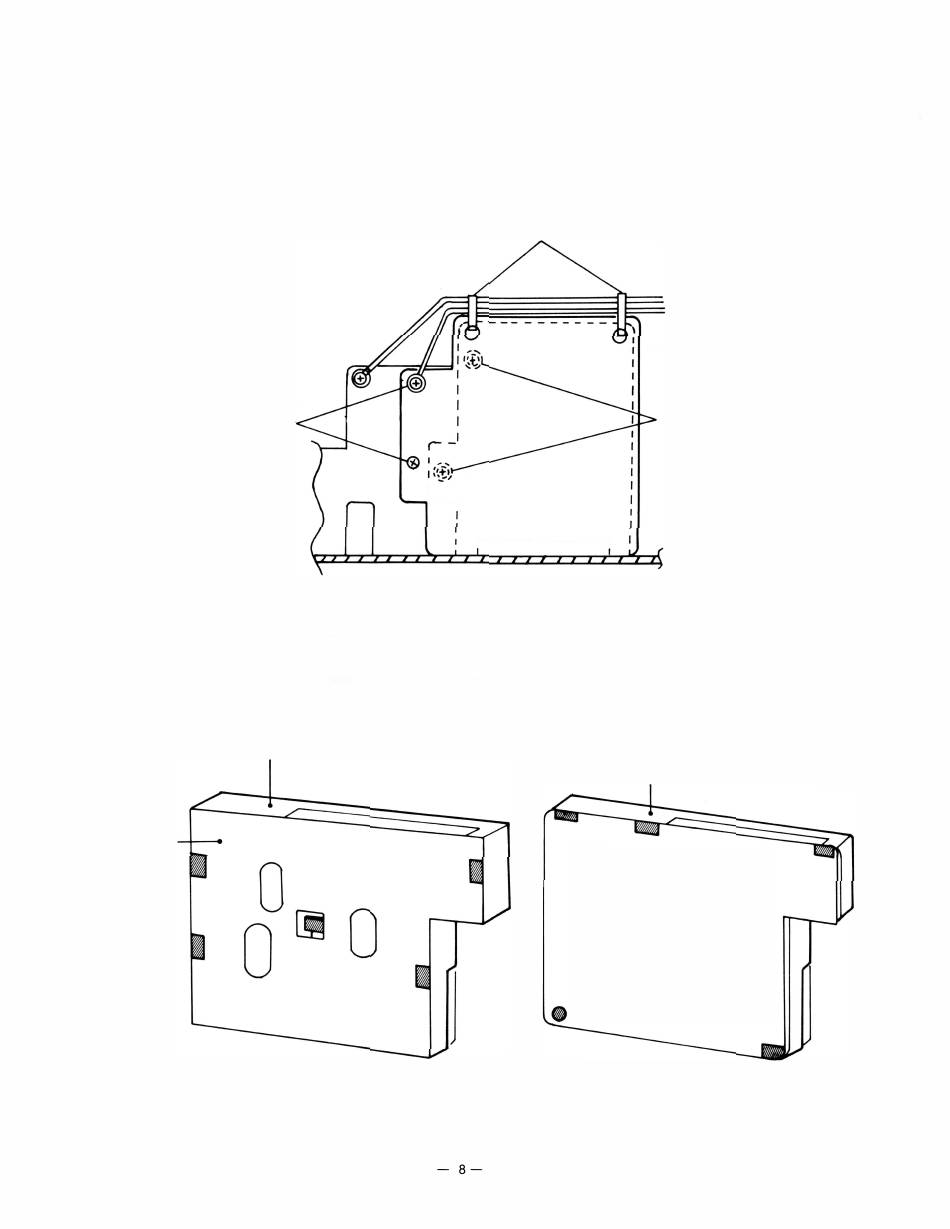

SUB PWB UNIT DIS ASSEMBLY
Remove the connecter "CN-S1"
Remove the two screw "b" and the two band.
Remove the two screw "e" and lift up the SUB PWB ASSY.
Screw "b"
CRT
PWB UNIT DIS ASSEMBLY
Remove the connecter "CN-C1'', "CN-C2", "CN-C3", "CN-C4" and "CE".
Break soldering marked with
(B)". Then, disconnect lead wires "EE", "SG" and " FOCUS".
CASE, SHIELDING (A)
CASE,
SHIELDING (B)
I
'---.
r- - - - - - - - - - - ...,
m ,
and remove both "CASE, SHIELDING (A)" and "CASE, SHIELDING
BAND
Screw " e "
CASE, SHIELDING (A)
CRT PWB ASSY
- Solder Side -
