Summary of Contents for Endress+Hauser AT5000

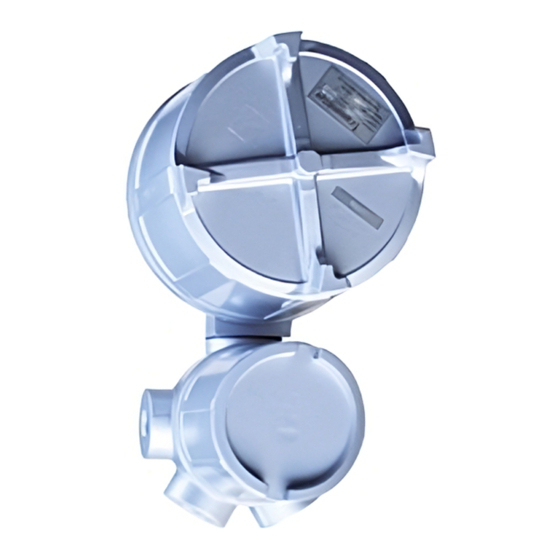

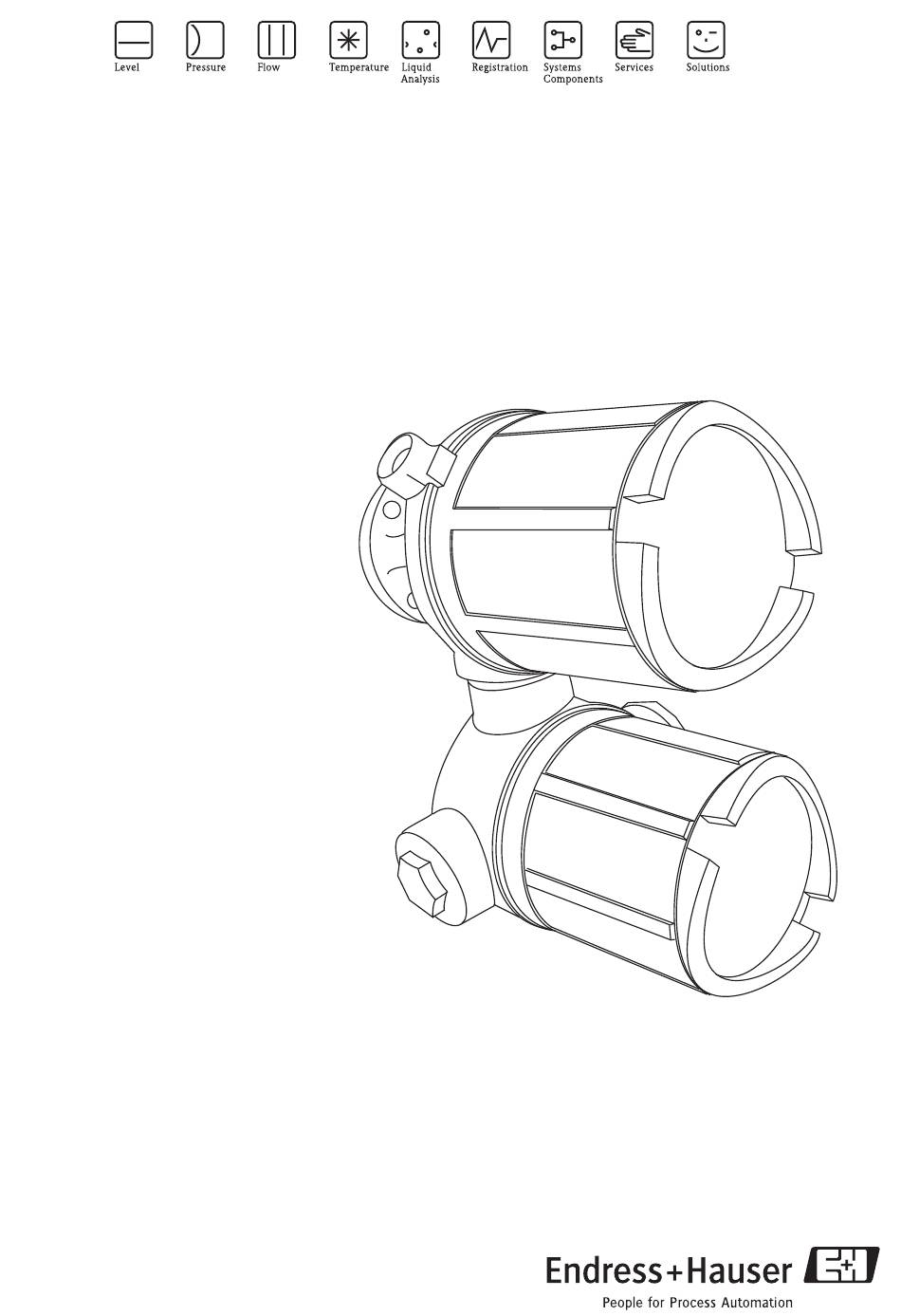

- Page 1 Operating Instructions Analog Transmitter AT5000 AT500 Alarm transmitter for mechanical level gauges BA01012G/08/en/13.10 71124748...
-
Page 2: Table Of Contents
Disposal ........20 Contact addresses of Endress+Hauser ....20 Installation . -
Page 3: Safety Instructions
This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution! Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Endress+Hauser... -
Page 4: Notes On Safety Conventions And Symbols
A terminal which must be connected to earth ground prior to making any other connection to the equipment. Equipotential connection (earth bonding) A connection made to the plant grounding system which may be of type e.g. neutral star or equipotential line according to national or company practice Endress+Hauser... -
Page 5: Identification
The follow technical data are given on the instrument nameplate: Type Measuring range Order cord Serial number Explosion model Protection class Rating (contact output) Rating (contact output) Rating (contact output) This name plate is attached by customer’ requests. TIIS approval type Endress+Hauser... -
Page 6: Ordering Information
G Gland PF(G)1, TF22-13 H Gland PF(G)1, TF22-15 K Gland PF(G)1-1/4, TF28-21 R ThreadNPT3/4 S Thread NPT1 T Thread M25 Y Special version, TSP-no. to be spec. Colour: 0 Sliver 9 Special version, TSP-no. to be spec. AT500- Complete product designation Endress+Hauser... -
Page 7: Scope Of Delive
The device complies with the applicable standards and regulations as listed in the EC declaration of conformity and thus complies with the statutory requirements of the EG directives. Endress+Hauser confirms the successful testing of the device by affixing to it the CE mark. Endress+Hauser... -
Page 8: Installation
3.1.3 Storage Pack the measuring instrument so that is protected against impacts for storage and transport. The original packing material provides the optimum protection for this. The permissible storage temperature is -20°C...+60°C (-4°F...+140°F) Endress+Hauser... -
Page 9: Installation Conditions
Alarm contact : 2, 4 points (A, B contact) 228mm Cover Housing Terminal box Locking Alarm contact : 4 points (C contact) 228mm Cover Housing Terminal box Locking Alarm contact : 6 points 255mm Housing Cover Terminal box Locking Flame proof Dimensions Endress+Hauser... - Page 10 Alarm contact : 2, 4 points (A, B contact) 228mm Cover Housing Terminal box Alarm contact : 4 points (C contact) 228mm Cover Housing Terminal box Cover Alarm contact : 6 points 266mm Housing Cover Terminal box Cover Weatherproof Dimensions Endress+Hauser...
-
Page 11: Installation
If you press the transmitter and the level gauge too firmly against each other, you might break the main shaft and the device will no longer be good for use. Connecting flange of transmitter Float Level gauge Shaft Transmitter Coupling Endress+Hauser... - Page 12 Studded washer Drive shaft Hexagonal nut Drive pin Coupling Sprocket wheel O-ring Installation with Medium and high prresure(LT14/16/34/36) Rear of float level gauge Spring washer Studded washer Hexagonal nut O-ring Hexagonal nut Drive shaft Drive pin Threaded bolt Coupling Endress+Hauser...
- Page 13 Analog Transmitter AT500 3 Installation Tank installation with Float Tank Gauge Terminal box Transmitter Float level gauge Flexible fitting with M-type (both ends) union See cable entry for transmitter Universal fitting Thick steel Endress+Hauser...
-
Page 14: Alarm Settup
Lower limit : 4m Red mark Locking screw Red mark Loosen locking screw on cam and Loosen locking screw on cam and adjust red mark to 2m on scal. adjust red mark to 4m on scal. Lock with screws. Lock with screws. Endress+Hauser... -
Page 15: Wiring
Terminal No. Alarm 11 12 contact L, L 2 contacts H, H 4 contacts H, H L, L 6 contacts H, H L, L H, H, H L, L, L Note! High and Low combination is changed by customer specification Endress+Hauser... -
Page 16: C Contact Point: Transfer
Terminal No. Alarm 11 12 contact L, L 2 contacts H, H 4 contacts H, H L, L 6 contacts H, H L, L, L L, L H, H, H Note! High and Low combination is changed by customer specification Endress+Hauser... -
Page 17: Maintenance
Repaires to Ex-approved devices When carrying out repairs to Ex-approved devices, please note the following: • Repairs to Ex-approved devices may only be carried out by trained personnel or by the Endress+Hauser Service. • Comply with the prevailing standards, national Ex-area regulations and certificates. -
Page 18: Troubleshooting
Troubleshooting Spare parts Spare parts are contained in kits. Spare parts which you can order from Endress+Hauser for the Transmitter are shown with their order numbers in the diagram below. For more information on service and spare parts, contact Endress+Hauser. - Page 19 Alarm assembly, 6 contacts, LT5m, AT500 56004272 56004268 Alarm assembly, 6 contacts, LT10m, AT500 Alarm assembly, 6 contacts, LT20m, AT500 56004270 56004271 Alarm assembly, 6 contacts, LT30m, AT500 71071080 Alarm assembly, 6 contacts, LTC5m, AT500 017871-1233 Coupling, transmitter,LT11,12 017871-1232 Coupling, transmitter,LT14,16 Endress+Hauser...
-
Page 20: Trouble-Shooting
Check Level gauge Return The following procedures must be carried out before a transmitter is sent to Endress+Hauser e.g. for repair or calibration: • Remove all residue which may be present. Pay special attention to the gasket grooves and crevices where fluid may be present. -
Page 21: Technical Data
C contact (transfer) °C Ambient Weather proof : -20...+60 °C Flame proof : -10...+40 temperature °C Storage -20...+60 temperature Protection Weather proof : IP65 Flame proof : d2G4 Colour Silver Weight Weather proof : approx. 7kg Flame proof : approx. 13kg Endress+Hauser... - Page 22 "CAJ?P?RGML MD AMLR?KGL?RGML $EAR CUSTOMER "ECAUSE OF LEGAL DETERMINATIONS AND FOR THE SAFETY OF OUR EMPLOYEES AND OPERATING EQUIPMENT WE NEED THIS $ECLARATION OF CONTAMINATION WITH YOUR SIGNATURE BEFORE YOUR ORDER CAN BE HANDLED 0LEASE INCLUDE THE COMPLETELY FILLED IN DECLARATION WITH THE DEVICE AND THE SHIPPING DOCUMENTS IN ANY CASE !DD ALSO SAFETY SHEETS AND OR SPECIFIC HANDLING INSTRUCTIONS IF NECESSARY 4YPE OF DEVICE SENSOR 3ERIAL NO...
- Page 23 Endress + Hauser Japan Co., Ltd. Product Center Yamanashi 862-1 Mitsukunugi Sakaigawa-cho Fuefuki-shi Yamanashi, 406-0846 Japan Phone: ++81 55 266 4964 Fax: ++81 55 266 4969 BA01012G/08/en/13.10 71124748 FM+SGML 8.0...
