HCD/HCF1010RMS, HCD/HCF1410RMS,
HCD1010NMS, HCD1410NMS
(See model number configurator on page 2 for details.)
After Serial Number L82638

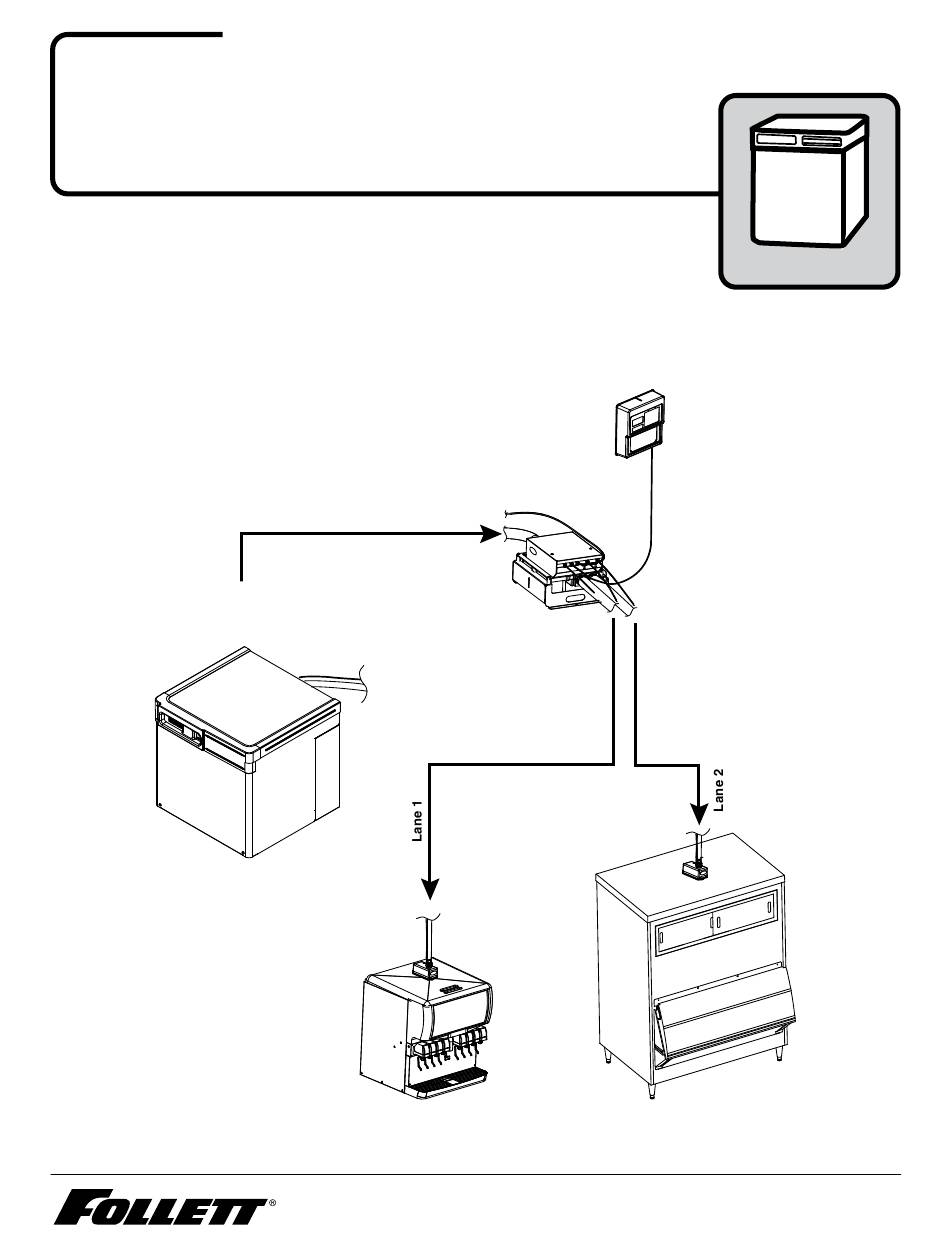

(1) Horizon
Chewblet
®
(purchased separately)
Horizon Elite
Ice Machine Models with RIDE
™
Installation Instructions for Ice Manager
™
Ice Machine
801 Church Lane • Easton, PA 18040, USA
Toll free (877) 612-5086 • +1 (610) 252-7301
www.follettice.com
Ice Manager
Control Panel
Ice Manager
Diverter Valve
(2) ice storage units
(purchased separately)
Any combination of bins or dispensers
Technology
®
Diverter Valve
™
remote condensing
01113372R04
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Follett Horizon Elite Chewblet HCD1010RMS
Summary of Contents for Follett Horizon Elite Chewblet HCD1010RMS
- Page 1 Horizon Elite Ice Machine Models with RIDE Technology ™ ® Installation Instructions for Ice Manager Diverter Valve ™ HCD/HCF1010RMS, HCD/HCF1410RMS, HCD1010NMS, HCD1410NMS (See model number configurator on page 2 for details.) After Serial Number L82638 remote condensing Ice Manager Control Panel Ice Manager Diverter Valve (1) Horizon...
- Page 2 Chewblet Ice Machine Model Number Configurations ® 1810 Application Configuration Icemaker Voltage Series Condenser MC Maestro™ C 208-230/60/1 (icemaking head) 425 up to A Air-cooled, self-contained V Vision™ S RIDE™ Self-contained only. 425 lbs Chewblet ® W Water-cooled, self-contained H Harmony™ (RIDE remote D 115/60/1 (icemaking head) (193 kg)
- Page 3 Horizon ice machine for use with Ice Manager diverter valve system The Ice Manager diverter valve system delivers ice to two ice storage units enabling a single Follett Horizon ice machine to meet demand for ice at two locations. The system’s sensors monitor ice levels in each storage unit and automatically switch ice delivery to the appropriate location.
-
Page 4: Unpack Ice Machine
Unpack Carefully unpack and inspect the contents of your Follett ice machine. Unpack ice machine ➋ ➌ ➊ ➎ ➍ 7/16" DO NOT TILT ICE MACHINE TO ACCESS BOLTS! COMPRESSOR DAMAGE 7/16" WILL RESULT ➐ ➏ ICE MANAGER remote condensing... -
Page 5: Prepare The Installation Site
• 10–70 psi (69–483 kpa) • 45–90 F (7–32 C) • Follett recommends the use of an in-line water filtration system (item# 00130286) • This equipment is to be installed with adequate backflow protection to comply with applicable federal, state, and local codes Drains: ➌... -
Page 6: Before Proceeding
Docking assembly Install the docking assembly. BEFORE PROCEEDING Prior to installing the docking assembly, ensure that the drain fitting is oriented (right or left) correctly for your installation. An optional straight drain fitting is also supplied. You may need to remove the back panel of the docking assembly in order to re-orient or change the drain fitting. - Page 7 Undercounter installation requirements Top View ➌ ➊ 3.25" (83 mm) min. Access panel/ door on counter 22.25" min. (656 mm) 24" min. (609 mm No Lip ➋ DOCKING STATION • Prior to installing the docking assembly, ensure that the drain fitting is oriented (right or left) correctly for your installation.
-
Page 8: Ice Transport Tube
Ice transport tube Install the ice transport tube. Ice transport tube installation. ➍ ➋ Hot Water 160 F (71 C) ➏ ➎ ➐ ➊ 1/4" ➌ Ice transport tube tips ➊ • Insulate entire length of ice transport tube ➋ •... -
Page 9: External Connections
External connections Connect utilities to docking assembly. CAUTION • Plug must be accessible after final installation. Water and flush drain Chassis drain plumbing - required ➊ ➋ ➌ Minimum 8" ➏ radius • Plug must be removed from John Guest 2 ft. -
Page 10: Internal Connections
Internal connections Connect docking assembly to ice machine. Water solenoid, shut-off valve, Ice transport tube installation and potable water line options If water solenoid is already mounted to evaporator: • Insert potable water line into shut-off valve. If this is an undercounter installation: •... - Page 11 TDS switch Power cord HIGH CLEAN • Set the TDS switch on the electrical box: • Position plate into opening and secure with supplied screw HIGH: for extended service life LOW: for low-scale water ICE MANAGER remote condensing...
-
Page 12: Front Cover
Front cover Install front cover to ice machine. Install condensing unit Install ice machine front cover ➋ ➊ • Slide ice machine cover over machine ➊ • Insert and tighten two screws through • Complete installation of condensing unit cover and into docking assembly ➋... - Page 13 Long tube run recommendations max. 2 ft (.6m) ➊ ➋ 1/4" • Pitch ice transport tube to allow melt water to drain towards ice machine ➊ • Secure insulated ice transport tube at least every 2 ft (0,6 m) to prevent dips or traps ➋...
- Page 14 ICE MANAGER remote condensing...
- Page 15 ICE MANAGER remote condensing...
- Page 16 Maestro, Micro Chewblet, Vision, Harmony, Ice Manager, Horizon, Horizon Elite are trademarks of Follett Products LLC. Chewblet, RIDE, Follett are registered trademarks of Follett Products LLC. 801 Church Lane • Easton, PA 18040, USA 01113372R04 Toll free (877) 612-5086 • +1 (610) 252-7301 www.follettice.com...
