Installation procedure
Caution ：Remove the ground terminal from the battery before handling electrical components.
Reference：Set the shift lever to "N" position before disconnecting the negative terminal of
the battery. Move the seat to the front most position before removing the negative
terminal of the battery.

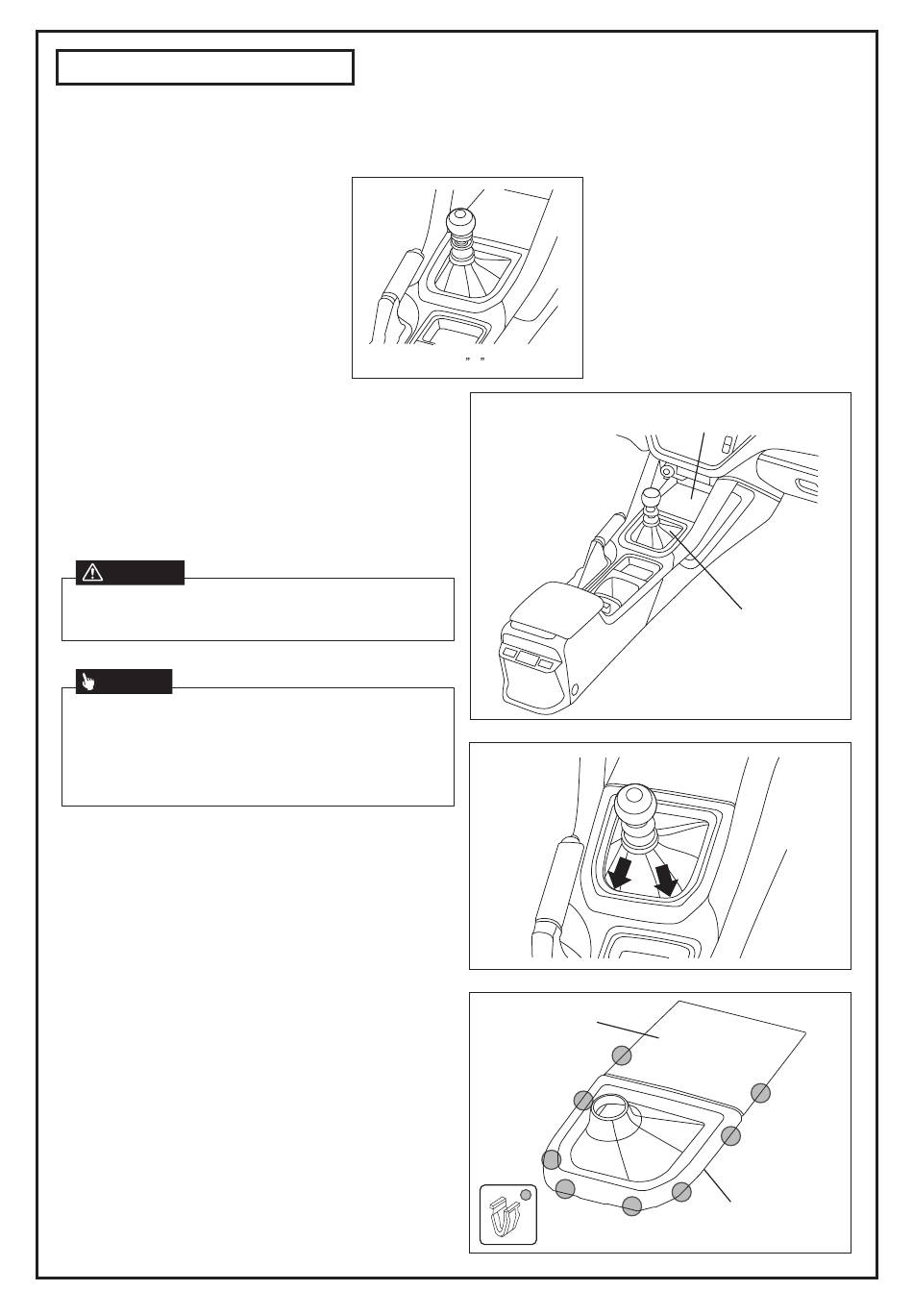

1. Remove Tray ASSY Center Lower.
（1） Remove the Shift Lever（Figure 1）
（2） Remove the Tray ASSY Center Lower
（Figure 2）
（3） Remove the Mat from the Tray ASSY
Center Lower（Figure 3）
Caution
When removing parts, be careful not to damage
the joint portion.
Advice
Tray ASSY Center Lower is fixed at 8 places by
clips. You can easily remove it by inserting your
hand from the top of the boot to the front side
(arrow portion), and hooking your hand on the
part to pull it up.
2. The installation shall be completed
by restoring the packaged Tray ASSY Center
Lower in the reverse order of removal.
Shift lever N position
Mat
２
Tray ASSY Center Lower
Shift Lever
Figure 1
Figure 2
Tray ASSY Center Lower
Figure 3
