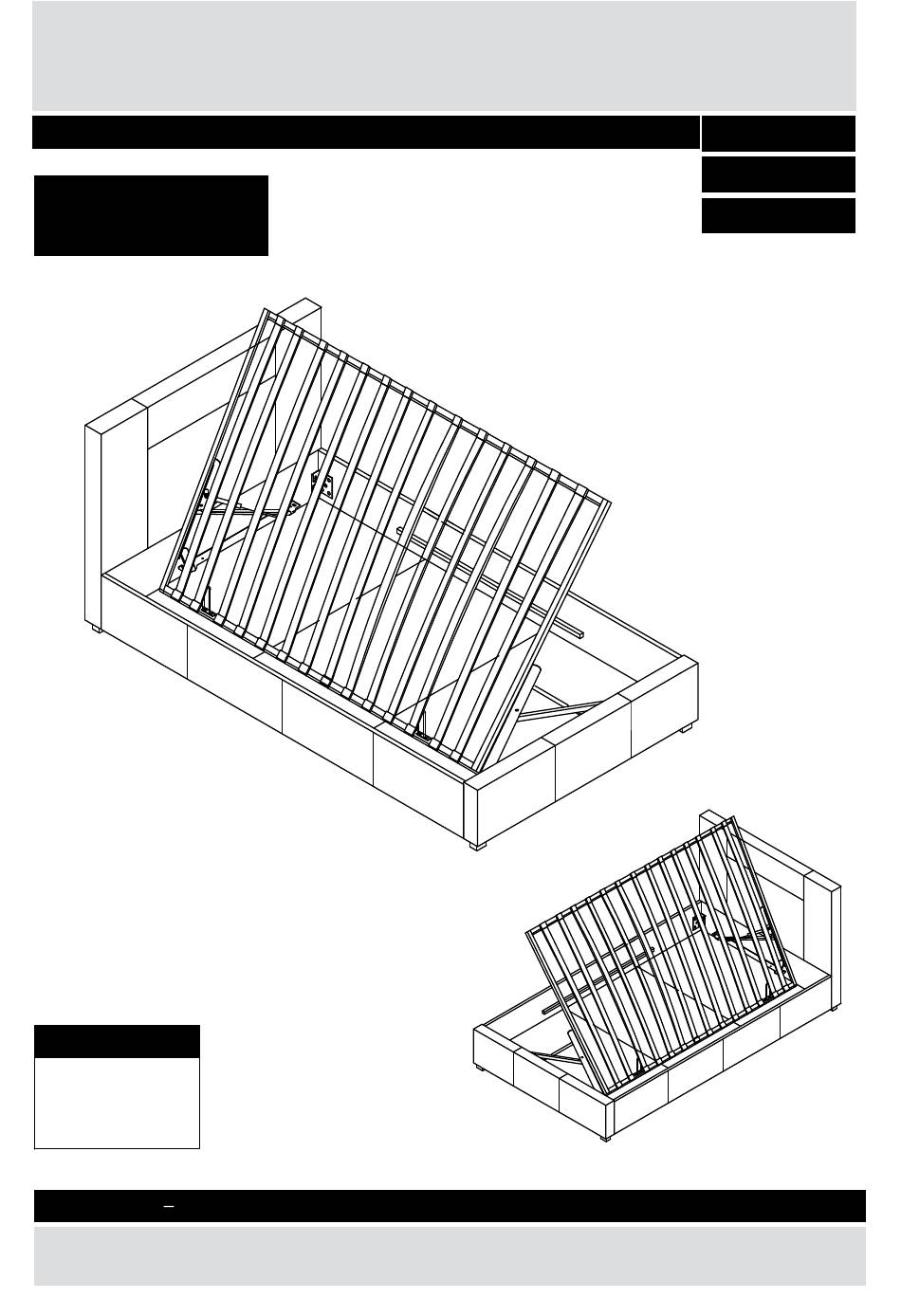

Harcourt 3' Ottoman Bed
Assembly lnstructions - Please keep for future reference
hygena
Dimensions (3')
Length - 203 cm
Width- 100 cm
Height - 85 cm
Important
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 0345 6400 800
412/1806
425/4333
389/5810
Issue 1-11-05-15
Advertisement
Related Manuals for hygena Harcourt 412/1806
Summary of Contents for hygena Harcourt 412/1806
- Page 1 Harcourt 3' Ottoman Bed Assembly lnstructions - Please keep for future reference 412/1806 425/4333 hygena 389/5810 Dimensions (3') Length - 203 cm Width- 100 cm Height - 85 cm Important Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 0345 6400 800...
- Page 2 Safety and Care Advice Check you have all the Assemble the item as close We do not recommend the components and tools listed on to its final position (in the same pages 2, 3 and 4. room) as possible. use of power drill/drivers for Remove all fittings from the Assemble on a soft level...
-
Page 3: Components - Parts
Components - Parts lf you have damaged or missing components. call the Customer Helpline: 0345 6400 800 Side rail x 2 (1930*300mm) FRONT Headboard (1000*800mm) INSIDE Footboard (1000*300mm) Piston x 2 (420mm) Hinges (x 1 pair) (750*115mm) Mattress support bracket x 2 Base panel *90mm) (1930*930mm) - Page 4 Components - Parts lf you have damaged or missing components. call the Customer Helpline: 0345 6400 800 Ottoman side frame (1820*30mm) Bentwood Slats x 14 Base Support x 4 (915*9*55mm) (120*20mm) Metal support rail x 1 Wooden support rail x 2 (937*60mm) (940*20mm) Corner bracket x 4...
- Page 5 Components - Fittings 0345 6400 800 25mm 5/16'' Bolt x 16 15mm 1/4'' Bolt x 24 35mm M4 Wood screw x 28 5/16'' Flat washer x 8 Nut x 4 5mm Allen key x 1 4mm Allen key x 1 Spanner x 1 Tools required Ruler/tape...
- Page 6 Assembly Instructions Attaching feet Attach 2 x feet the underside of the headboard using screws as shown. Repeat on the underside of the footboard Note: The position is outlined.
- Page 7 Assembly Instructions Carefully place headboard footboard flat on the floor with the fixing holes facing up. Attach base supports to the headboard and footboard using screws as shown. Note: The positions should be outlined. Loosely fit bolts into headboard footboard as shown.
- Page 8 Assembly Instructions With help, raise the headboard into the standing position. Hang the metal brackets on the end of the side rails , over the bolts in the headboard Note: Do not fully tighten bolts at this stage. Finger tighten only. Repeat to assemble footboard...
- Page 9 Assembly Instructions Preparing base Assemble corner brackets into each corner using screws Note: Ensure these are at the same height as all other metal support bars. The positions should be outlined. Attach the wooden support rails in beween side rails using screws C: Attach the metal...
- Page 10 Assembly lnstructions Opening from right side At this stage you can choose to have the ottoman frame lifting from either side as shown. Attaching folding hinges Right opening To lift from the right side , assemble hinges 4 in the location shown .
- Page 11 Assembly lnstructions Opening from left side Attaching hinges Left opening To lift from the left side, assemble hinges 4 in the location shown . Attaching folding hinges Secure the hinges headboard footboard using bolts as shown. Note: Ensure the hinges are fitted the correct way around as shown.
- Page 12 Assembly Instructions Assembling pistons Locate pistons onto hinges as shown. Note: Ensure the"smaller" tube is facing down as shown. down Secure the pistons using nuts at both ends. Note: Use spanner tighten nut...
- Page 13 Assembly Instructions Assembling ottoman frame Assemble ottoman frame components together as shown. Note: Ensure the extra holes in side frame are correctly located on the inside of the frame after assembly. Note: Secure the assembly using fixings as shown. Important Do not fully tighten screws at this stage.
- Page 14 Assembly lnstructions Attaching mattress support brackets With help, carefully turn the frame over. Note: The frame is heavy, lift with care. Assemble mattress support brackets side frame using screws Locating ottoman frame Carefully open both hinges to the raised position. Warning: Do not put your hands inside the hinges during this...
- Page 15 Assembly lnstructions Attaching slats Assemble slat caps onto each end of bentwood slats Fit the bentwood slats into the ottoman side frames , by locating slat caps into the holes. If you need help or have damaged or missing parts, call the Customer Helpline: 0345 6400 800 Home Retail Group.
