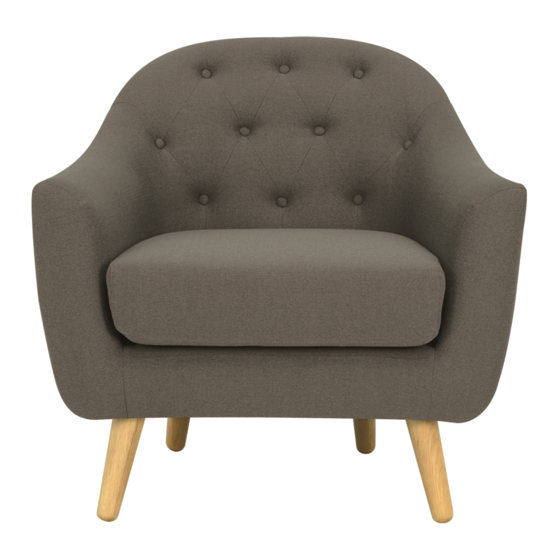

Lexie Chair
Assembly lnstructions - Please keep for future reference
hygena
Dimensions
Depth -82cm
Width - 81cm
Height -86cm
Important - Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 0345 6400 800
427/7396
409/9407
412/3316
402/8947
Issue 1- 22-05-15
Advertisement
Table of Contents
Related Manuals for hygena 427/7396
Summary of Contents for hygena 427/7396
- Page 1 Lexie Chair Assembly lnstructions - Please keep for future reference 427/7396 409/9407 hygena 412/3316 402/8947 Dimensions Depth -82cm Width - 81cm Height -86cm Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 0345 6400 800...
- Page 2 Safety and Care Advice Important - Please read these instructions fully before starting assembly Check you have all the Assemble the item as close We do not components and tools listed on to its final position (in the same recommend the pages 2.
- Page 3 Components - Parts lf you have damaged or missing components. call the Customer Helpline: 0345 6400 800 Seat Front leg x 2 (83 x 82 x 65cm) (50 x 50 x 275cm) Back leg (left) Back leg (right) (50 x 50 x 275cm) (50 x 50 x 275cm) Note: Legs are located inside the zipped lining on...
- Page 4 Components - Fittings 0345 6400 800 Spring washer x 8 M8x50mm screw x 8 Plain washer x 8 Allen key x 1 Tools required Ruler/tape 100 105 110 115 120 125 130 135 140 145 150 measure R uler - Use this ruler to help correctly identify the screws 95 100 105 110 115 120 125 130 135 140 145 150 155 160 165 170...
- Page 5 Assembly Instructions Legs packed Locating legs inside lining With help, carefully turn seat onto it's back on a clean flat surface. Warning: The seat is heavy. Lift with care. Unzip the fabric lining on legs the underside, to locate a inside separate package containing the legs...
- Page 6 Assembly Instructions With help, carefully stand the chair upright. Warning: The chair is heavy. Lift with care. If you need help or have damaged or missing parts, call the Customer Helpline: 0345 6400 800 Home Retail Group. 489-499 Avebury Boulevard. Saxon Gate West. Central Milton Keynes. MK9 2NW...
