Axis JS5001K Instruction Manual

JS5001K

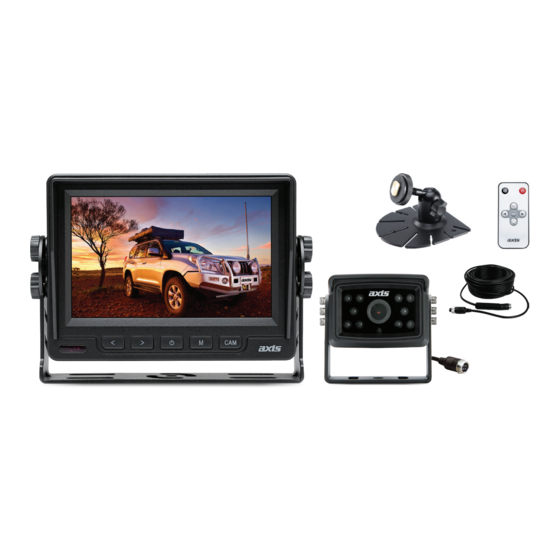

5 INCH LED MONITOR & COMPACT CAMERA KIT
SPECIFICATIONS
JS5001 MONITOR
- TFT Panel: New Grade A LCD, LED Backlight
- LCD Size: 125mm (5-Inch) Diagonal
- Display Format: 16:9
- Resolution: 800 x 480
- Brightness: < 450 CD/M2
- Viewing Angles: 90 Deg. Left/Right/Up/Down
- Video System: Auto PAL/NTSC Select
- Video Connections: 2 x 4-Pin (Female)
- Reverse Trigger: Assignable to Cam 1 or 2 (via Menu)
- Camera View: Input Selectable (CAM Button),
Input Override in Reverse Mode
- Monitor View: Normal/Mirror Image Select
- Guidelines: Selectable
- Audio: On Board Speaker
- Main Menu: Brightness/Contrast/Colour/Volume/Reset/
Slideshow/Language/Reverse Priority & Delay
- Casing Material: 100°C Heat/Flame Proof (UL94V-0) ABS
- Power Input: 10-32V DC (Negative Ground)
- Dimensions: 136W x 102H x 25D mm (excluding brackets)
- Included: Stand Mount, U-Shape Mount,
Remote Control, Power Cable Assembly,
Sunshade
Optional: Glass Mount Bracket (BKT101)
INSTRUCTION MANUAL
All manuals and user guides at all-guides.com
1
CAMERA
- Image Device: 1/3" Nextchip NVP2040 CCD
- Image Sensor: Sony ICX639XK
- Viewing Angle: 105° (Diagonal)
83° (Horizontal)
- Signal System: PAL
- TV Lines: 600
- Image Orientation: Mirror
- Night Vision: 10 LED
- Illumination: 0.1 Lux with IR on
- Ingress Protection: IP67
- Operating Temp: -20 ~70°C
- Power Supply: 8-50V DC
- Power Consumption: 200mA
- Dimensions: 56W x 42H x 63D mm
(excluding bracket)
- Connector: Terminated to 4-Pin Male
- Warranty: 2 Years
- Accessories: Metal Mounting Bracket
- Included: Installation Hardware,
15M Extension Cable
(4-Pin Female to 4-Pin Male)
