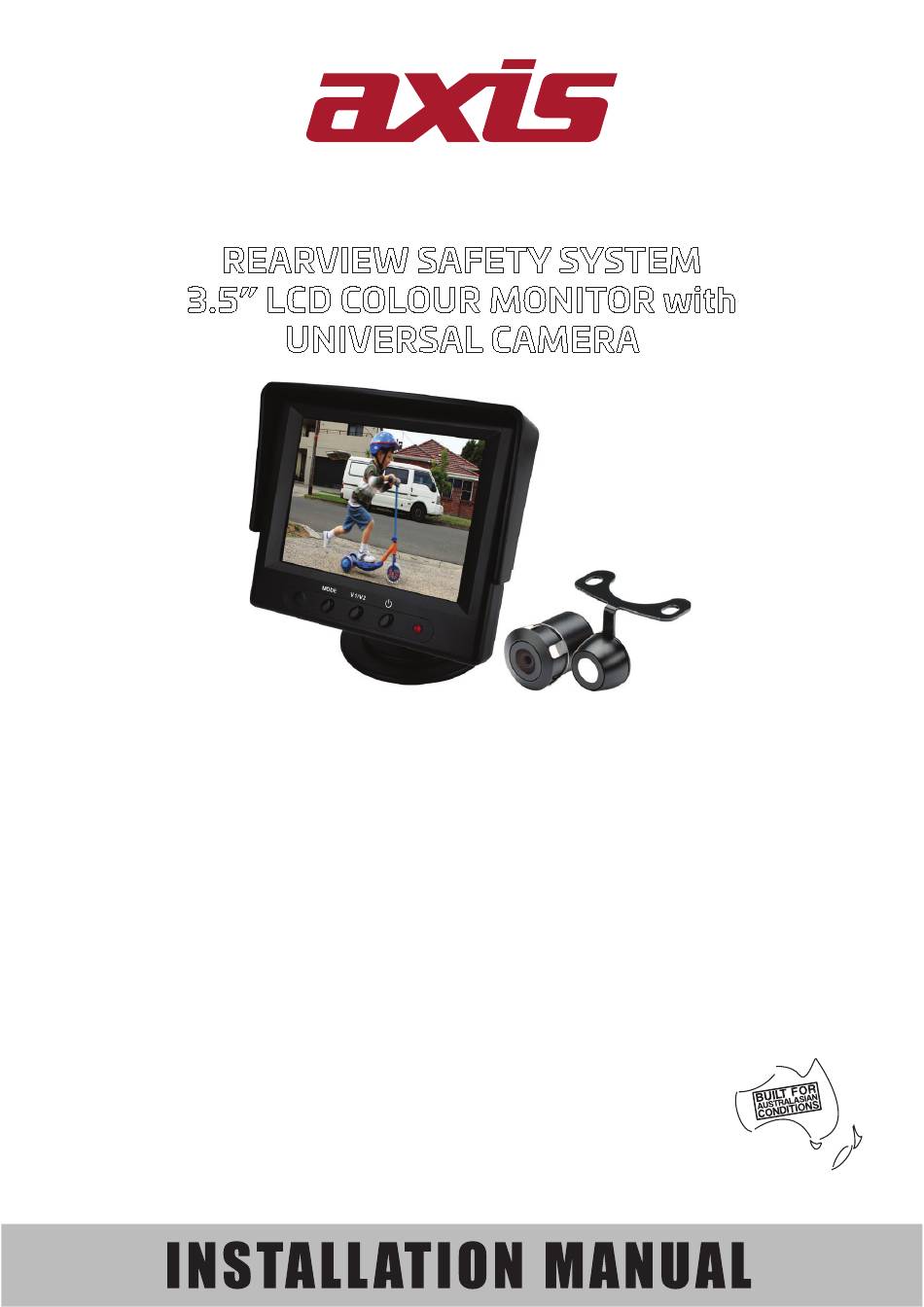

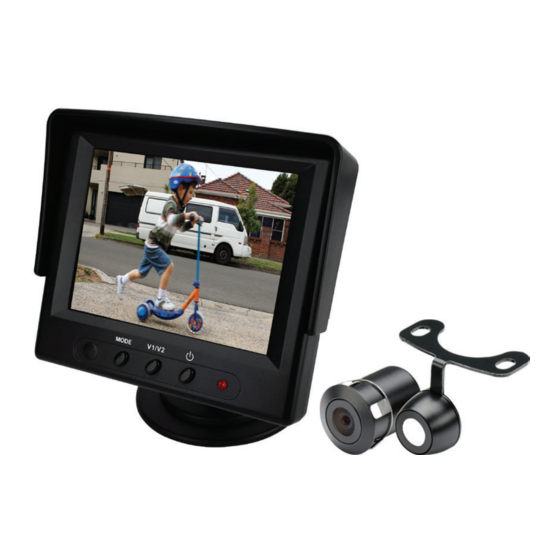

REARVIEW SAFETY SYSTEM
3.5" LCD COLOUR MONITOR with
SPECIFICATIONS
MONITOR (JS035)
- TFT Panel:
New 'A' Grade LCD
- LCD Size:
90mm (3.5-Inch) Diagonal
- Resolution:
320 x 240 RGB
- Video System:
PAL/NTSC Auto Switching
- Video Input:
Video 1
Video 2 Auto Switching (Camera)
- Adjustments:
Display Effect (4 Brightness Settings)
- Mounting:
Adjustable Dash Stand
- Dimensions :
90W x 80H x 25D mm
- Power Input:
12/24V DC (Negative Ground)
- Accessories:
Sunshade / Adhesive Tape
INCLUDED:
- Sunshade Visor
- IR Remote
- Adhesive Tape
- Installation Manual
- Installation Hardware
JS035K
UNIVERSAL CAMERA
CAMERA (C20 - Series 2)
- Imaging Clip:
- Imaging Sensor:
- Lens:
- Viewing Angle:
- Video Format:
- Parking Guidelines:
- One Button Control:
- Image Orientation:
- Minimum Illumination:
- Water/Dust Protection:
- Power Input:
- Mounting:
- Connection:
- Dimensions:
INCLUDED:
- Dual Mounting Heads (Butterfly and Bumper Fit)
- Installation Hardware
- Metal Hole Saw for Bumper Fit Installation
- 6m Camera to Monitor Lead (RCA Male) with Power Wire
for reverse triggering
Series 2
(
1/4" Full Colour CMOS
PC7070
Full Glass
110° Wide Viewing Angle (Horizontal)
170° Wide Viewing Angle (Diagonal)
PAL/NTSC (Switchable)
Yes (Selectable), Type (Adjustable)
Image Orientation Select, Video Mode Select
Guideline Type Adjust, Guideline Height Adjust
Guideline Width Adjust
Mirror, Normal, Upside-Down Mirror,
Upside-Down Normal (Switchable)
0.3 Lux
IP67
12/24V DC
Number Plate or In-Bumper
RCA
16.5mm x 23mm (D)
2
YEAR
WARRANTY
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Axis 2 Series
Summary of Contents for Axis 2 Series
- Page 1 JS035K Series 2 REARVIEW SAFETY SYSTEM 3.5” LCD COLOUR MONITOR with UNIVERSAL CAMERA SPECIFICATIONS MONITOR (JS035) CAMERA (C20 - Series 2) - TFT Panel: New ‘A’ Grade LCD - Imaging Clip: 1/4” Full Colour CMOS - LCD Size: 90mm (3.5-Inch) Diagonal - Imaging Sensor: PC7070 - Resolution:...
- Page 2 MONITOR Power Button Video 1/2 Selection Mode Button (Adjusts brightness in 4 levels) INSTALLATION 1) Connect Monitor to Camera as per Wiring Diagram on page 3. 2) Determine installation location (usually the centre-rear of vehicle).
- Page 3 CAR REARVIEW CAMERA CAMERA ASSEMBLY OPTIONS: Dual Mounting Heads Butterfly Bumper CABLE CONNECTIONS: See wiring diagram below: Reverse Lamp Reverse Trigger Input (Optional) (Optional) One-Button Control +12V +12V Camera Monitor +12V (Red Cable connect to rear lamp positive) Selectable - Guidelines, PAL/NTSC & Normal/Mirror Image Operate to enter any mode you want 3 seconds after the previous mode.
- Page 4 JS035K...
