Summary of Contents for Axis JS5020CK

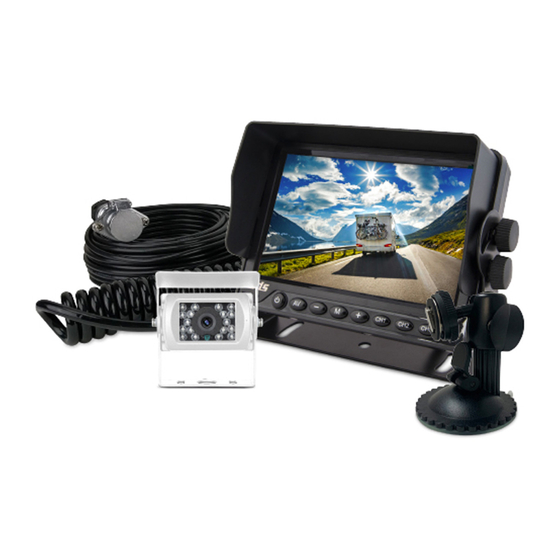

- Page 1 J A P A N Q U A L I T Y JS5020CK 5” Caravan Camera Kit...
-
Page 2: Table Of Contents
CONTENTS Important Notes ....................................2 Keystroke Instructions ..................................3 Menu Operation Instruction ................................. 4 Wiring Diagram ....................................5 Bracket Installation .................................... 6 Specifications ...................................... 7 Warranty ........................................8 IMPORTANT NOTES 1. Do not try to open the covers. 2. Please disconnect the power if anomolies occur. 3. -
Page 3: Keystroke Instructions
KEYSTROKE INSTRUCTION KEYSTROKE INSTRUCTION Keystroke Instruction ; Power Power Power On Video Switch V1/V2; AV; SEL Input Select Guide Lines Power Volume & Menu DOWN Function Image Normal/Mirror Input Select MENU M; MENU Volume & Menu Down Function MENU Analog Decrease Menu: Adjust Brightness, Contrast, Colour, Screen Orientation, Trigger, Analog Increase Volume + Menu UP Function... -
Page 4: Menu Operation Instruction
MENU OPERATION INSTRUCTION Press “MENU”, the screen will show “PICTURE” Press “- +” to select other feature. Press “- +” to adjust parameter. Press “MENU” over and over again, the screen will show pictures below. Brightness 0~100 Contrast 0~100 Colour 0~100 Reset Volume... -
Page 5: Wiring Diagram
WIRING DIAGRAM WIRING DIAGRAM... -
Page 6: Bracket Installation
del: 2;3;4;5;6;7;8;9;10 can choose the bracket: del: 2;3;4;5;6;7;8;9;10 can choose the bracket: Model: 2;3;4;5;6;7;8;9;10 can choose the bracket: Model: 2;3;4;5;6;7;8;9;10 can choose the bracket: adrest Frame; Plastic/Metal bracket adrest Frame; Plastic/Metal bracket Headrest Frame; Plastic/Metal bracket Headrest Frame; Plastic/Metal bracket del: 1;11;12;13 can choose the bracket: del: 1;11;12;13 can choose the bracket: Model: 1;11;12;13 can choose the bracket:... -
Page 7: Specifications
SPECIFICATIONS MONITOR TFT Panel: New Grade A LCD LCD Size: 5-Inch Diagonal Display Format: 16:9 Resolution: 800 x 480 Brightness: < 450 CD/M2 Viewing Angles: 70° Left/Right/Up/Down Video System: Auto PAL/NTSC Select Video Connect: 3 x 4-Pin (Female) Reverse Trigger: Yes, Each Input Monitor View: Normal/Mirror Image Select... -
Page 8: Warranty
You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. Please complete details below in the event of warranty service being required. Purchaser’s Name: Purchaser’s Address: JS5020CK Model Number: Serial Number: Dealer Name: Date of Purchase:...
