JS5001CK

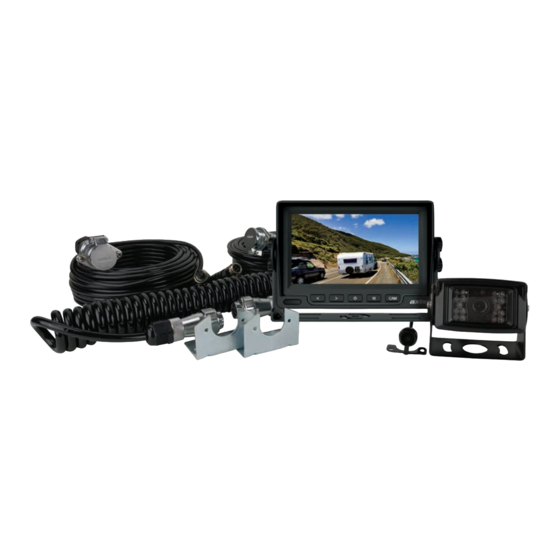

5 INCH REARVIEW CARAVAN CAMERA KIT
LED MONITOR, 2 CAMERAS + QUICK TRAILER CONNECT
SPECIFICATIONS
1) JS5001 MONITOR
- TFT Panel:
- LCD Size:
- Display Format:
- Resolution:
- Brightness:
- Viewing Angles:
- Video System:
- Video Connections:
- Camera Display:
- Reverse Trigger:
- Monitor View:
- Guidelines:
- Audio:
- Main Menu:
- Temp Resistance:
- Power Input:
- Dimensions:
- Included:
INSTRUCTION MANUAL
New Grade A LCD
LED Backlight
125mm (5-Inch) Diagonal
16:9
800 x 480
< 450 CD/M2
90 Deg. Left/Right/Up/Down
Auto PAL/NTSC Select
2 x 4-Pin (Female)
Input Select and Reverse Trigger Override
Programmable Default Input (Cam 1 or 2)
Normal/Mirror Image Select
Selectable
On Board Speaker
Brightness/Contrast/Colour/Volume/Reset/Slideshow/Language/
Reverse Priority & Delay
Fireproof ABS + PC Material Casing (Fireproof Rating UL94-V0)
11-32V DC (Negative Ground)
136W x 102H x 25D mm (excluding brackets)
Stand Mount, U-Shape Mount, Remote Control
Power Cable Assembly, 4Pin/RCA Adaptor & Sunshade,
Optional: Glass Mount Bracket (BKT101)
1
Advertisement
Table of Contents
Related Manuals for Axis JS5001CK
Summary of Contents for Axis JS5001CK
- Page 1 JS5001CK 5 INCH REARVIEW CARAVAN CAMERA KIT LED MONITOR, 2 CAMERAS + QUICK TRAILER CONNECT SPECIFICATIONS 1) JS5001 MONITOR - TFT Panel: New Grade A LCD LED Backlight - LCD Size: 125mm (5-Inch) Diagonal - Display Format: 16:9 - Resolution:...
-
Page 2: Specifications
SPECIFICATIONS 2) C20 CAMERA - Image Device: 1/4” Full Colour CMOS - Imaging Sensor: PC7070 - Effective Pixels: 704 x 576 - Lens: Full Glass - Viewing Angle: 110° Wide Viewing Angle (Horizontal), 170° Wide Viewing Angle (Diagonal) - Video Format: PAL/NTSC (Switchable) - Parking Guidelines: Yes (Selectable), Type (Adjustable), Height &... -
Page 3: Caravan Camera
MONITOR CAMERA (JS5001) (C20) AV1: Monitor 4Pin(F) AV2: Monitor 4Pin(F) TRAILER QUICK CARAVAN CONNECT CAMERA (TQC100) (CC10) 4PIN (M) 4PIN (F) Metal Plug Mounting Brackets 4-Pin Locking Socket (Female) Connection 4-Pin Locking Socket (Female) Connection 4-Pin Locking Plug (Male) Connection 4-Pin Locking Plug (Male) Connection FEMALE MALE... - Page 4 Thank you for choosing this versatile AXIS Caravan Monitor System! Please take time to read through the simple instructions below. CAUTIONS: • Securely install the monitor in a location that will not hinder driver vision or control. • Keep the monitor away from moisture and heat sources •...
- Page 5 CONNECTIONS: Red - 12 - 24V Black - Ground Brown - Dimmer Control Green - Reverse Trigger 4 Pin Female Video V1 9 Pin Male 4 Pin Female Video V2 Note: Cam 2 has reverse trigger control. Recommended wiring for optimal performance: •...
-
Page 6: Warranty
WARRANTY - 12/24 Volt DC - Dimensions: 16.5mm x 23mm (D) CAR CAMERA (C20) CAR REARVIEW CAMERA CAR REARVIEW CAMERA CAR REARVIEW CAMERA INSTALLATION CAMERA ASSEMBLY OPTIONS: CAMERA ASSEMBLY OPTIONS: CAMERA ASSEMBLY OPTIONS: 1) Determine installation location (usually the centre-rear of vehicle). a) Butterfly Type - Mount on surface using double-sided tape or screws CAR REARVIEW CAMERA See diagram below:... - Page 7 Connect to Trailer Quick Connect CARAVAN CAMERA (CC10) CABLE CONNECTIONS CCD Camera [Termination to 4-Pin (M)] to 5 Pin (F) Connect to Trailer Quick Connect A (40cm hook up cable) Camera [Termination to 4-Pin (M)] B (15 metre cable) Camera Extension Cable [(4-Pin (F) to 5 Pin (M)] AUDIO VIDEO GROUND...
