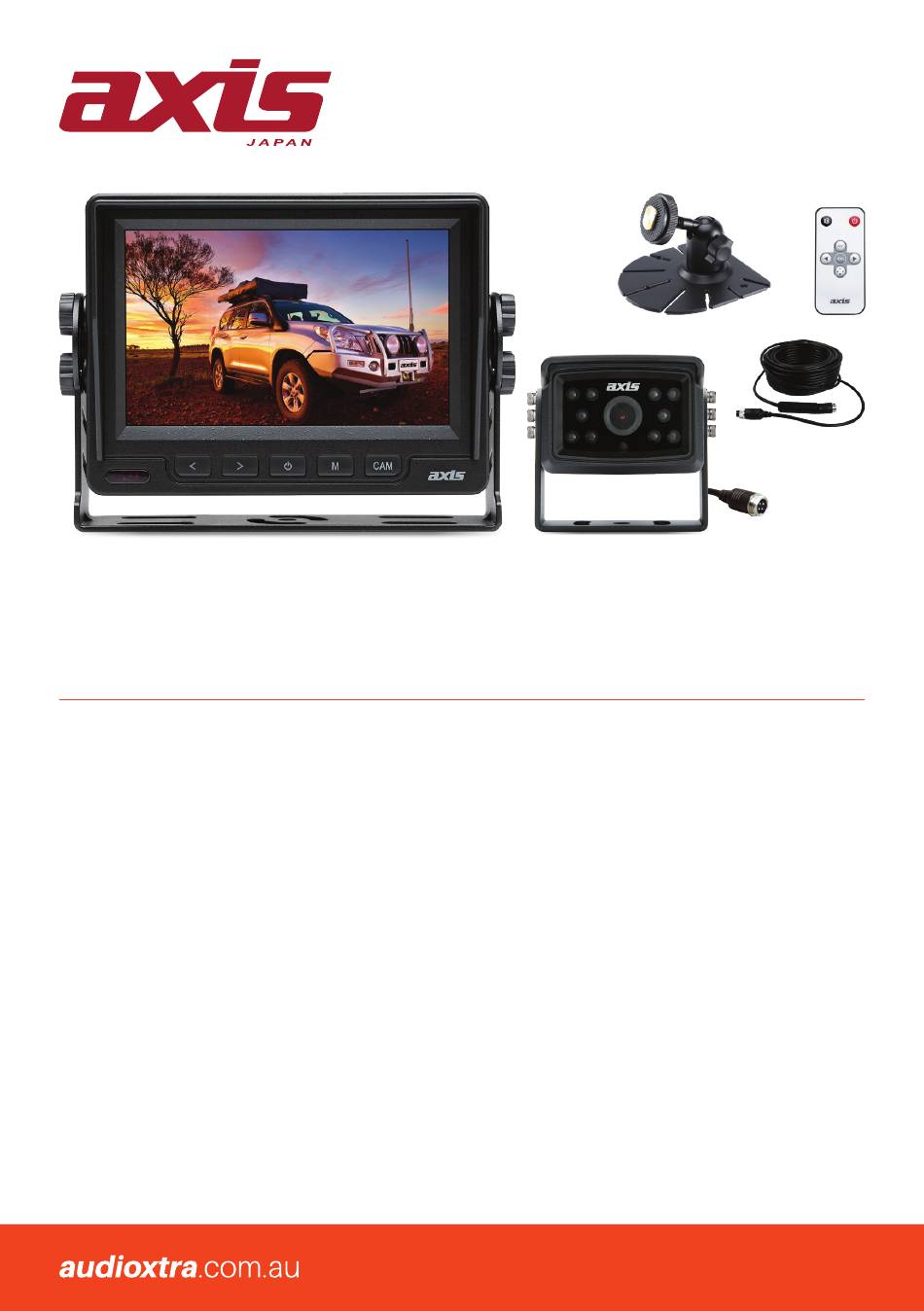

Axis JS5001K Instruction Manual

JS5001K

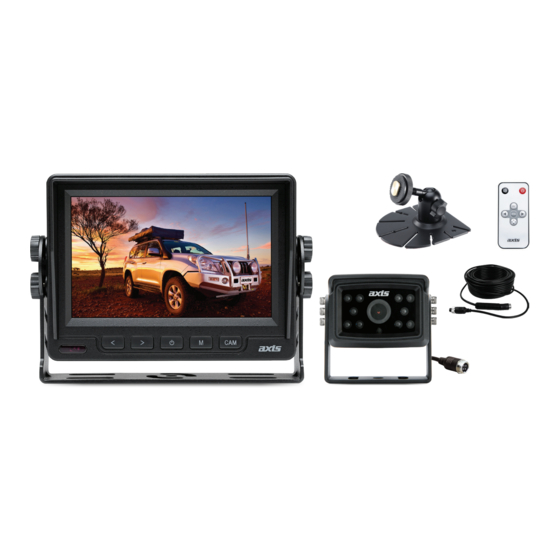

5 INCH LED MONITOR & COMPACT CAMERA KIT
SPECIFICATIONS
JS5001 MONITOR
- TFT Panel: New Grade A LCD, LED Backlight
- LCD Size: 125mm (5-Inch) Diagonal
- Display Format: 16:9
- Resolution: 800 x 480
- Brightness: < 450 CD/M2
- Viewing Angles: 90 Deg. Left/Right/Up/Down
- Video System: Auto PAL/NTSC Select
- Video Connections: 2 x 4-Pin (Female)
- Reverse Trigger: Assignable to Cam 1 or 2 (via Menu)
- Camera View: Input Selectable (CAM Button),
Input Override in Reverse Mode
- Monitor View: Normal/Mirror Image Select
- Guidelines: Selectable
- Audio: On Board Speaker
- Main Menu: Brightness/Contrast/Colour/Volume/Reset/
Slideshow/Language/Reverse Priority & Delay
- Casing Material: 100°C Heat/Flame Proof (UL94V-0) ABS
- Power Input: 10-32V DC (Negative Ground)
- Dimensions: 136W x 102H x 25D mm (excluding brackets)
- Included: Stand Mount, U-Shape Mount, Remote Control,
Power Cable Assembly, Sunshade
- Optional: Glass Mount Bracket (BKT101)
INSTRUCTION MANUAL
CC05 CAMERA
- Image Device:
- Image Sensor:
- Viewing Angle:
- Signal System:
- TV Lines:
- Image Orientation:
- Night Vision:
- Illumination:
- Ingress Protection:
- Operating Temp:
- Power Supply:
- Power Consumption:
- Dimensions:
- Connector:
- Warranty:
- Accessories:
- Included:
2
YEAR WARRANTY
1
1/3" Nextchip NVP2040 CCD
Sony ICX639XK
105° (Diagonal)
83° (Horizontal)
PAL
600
Mirror
10 LED
0.1 Lux with IR on
IP67
-20 ~70°C
8-50V DC
200mA
56W x 42H x 63D mm
(excluding bracket)
Terminated to 4-Pin Male
2 Years
Metal Mounting Bracket
Installation Hardware,
15M Extension Cable
(4-Pin Female to 4-Pin Male)
