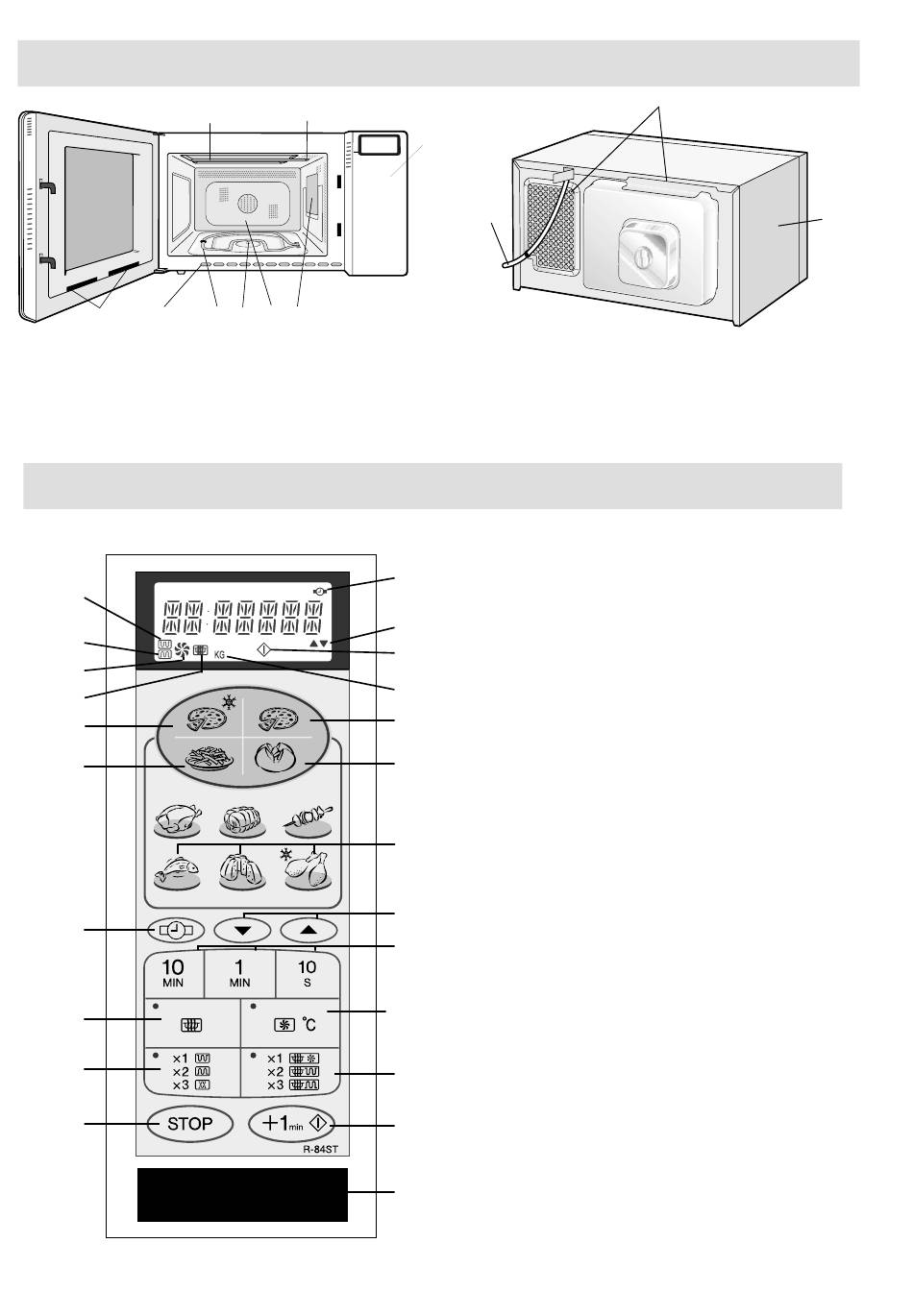

Appearance View - Sharp R-84ST Service Manual

OVEN
9 8
1. Grill heating element (top grill)
2. Oven lamp
3. Control panel
4. Waveguide cover
5. Oven cavity
6. Turntable motor shaft
1
2
3
4
23
22
21
20
19
18

APPEARANCE VIEW

1 2
7
6 5
4
CONTROL PANEL
R-84ST -
3
3
12
7. Grill heating element (bottom grill)
8. Air-vent openings
9. Door seals
10. Air vent openings
11. Outer cabinet
12. Power cord
Digital display and indicators:
1 TOP GRILL indicator
8
2 BOTTOM GRILL indicator
3 CONVECTION indicator
7
4 MICROWAVE indicator
5 WEIGHT indicator
6
6 COOKING IN PROGRESS indicator
7 LESS/MOREindicator
5
8 CLOCK SETindicator
9
Operating buttons:
9 FRESH PIZZA/FRESH QUICHE key
10
10 BOILED/JACKET POTATOES key
11 INSTANT ACTION keys
12 LESS/MORE buttons
13 TIME keys
11
14 CONVECTION key
Press to change the convection setting
15 DUAL MODE key:
1 PRESS
12
2 PRESSES = MICROWAVE & TOP GRILL
3 PRESSES = MICROWAVE & BOTTOM GRILL
13
16 +1 MIN/ START button
17 DOOR OPEN button
18 STOP key
14
19 GRILL MODE key:
1 PRESS
2 PRESSES = BOTTOM GRILL
3 PRESSES = TOP & BOTTOM GRILL
15
20 MICROWAVE POWER LEVEL key
Press to change the microwave power setting
21 CLOCK SETTING key
16
22 FRENCH FRIED POTATO key
23 FROZEN PIZZA/FROZEN QUICHE key
17
8
10
= MICROWAVE & CONVECTION
= TOP GRILL
11
