SCHEMATIC
NOTE: CONDITION OF OVEN
1. DOOR CLOSED.
2. PLUGGED IN OVEN.
3. NOTHING APPEARS ON DISPLAY.
NOISE
FILTER

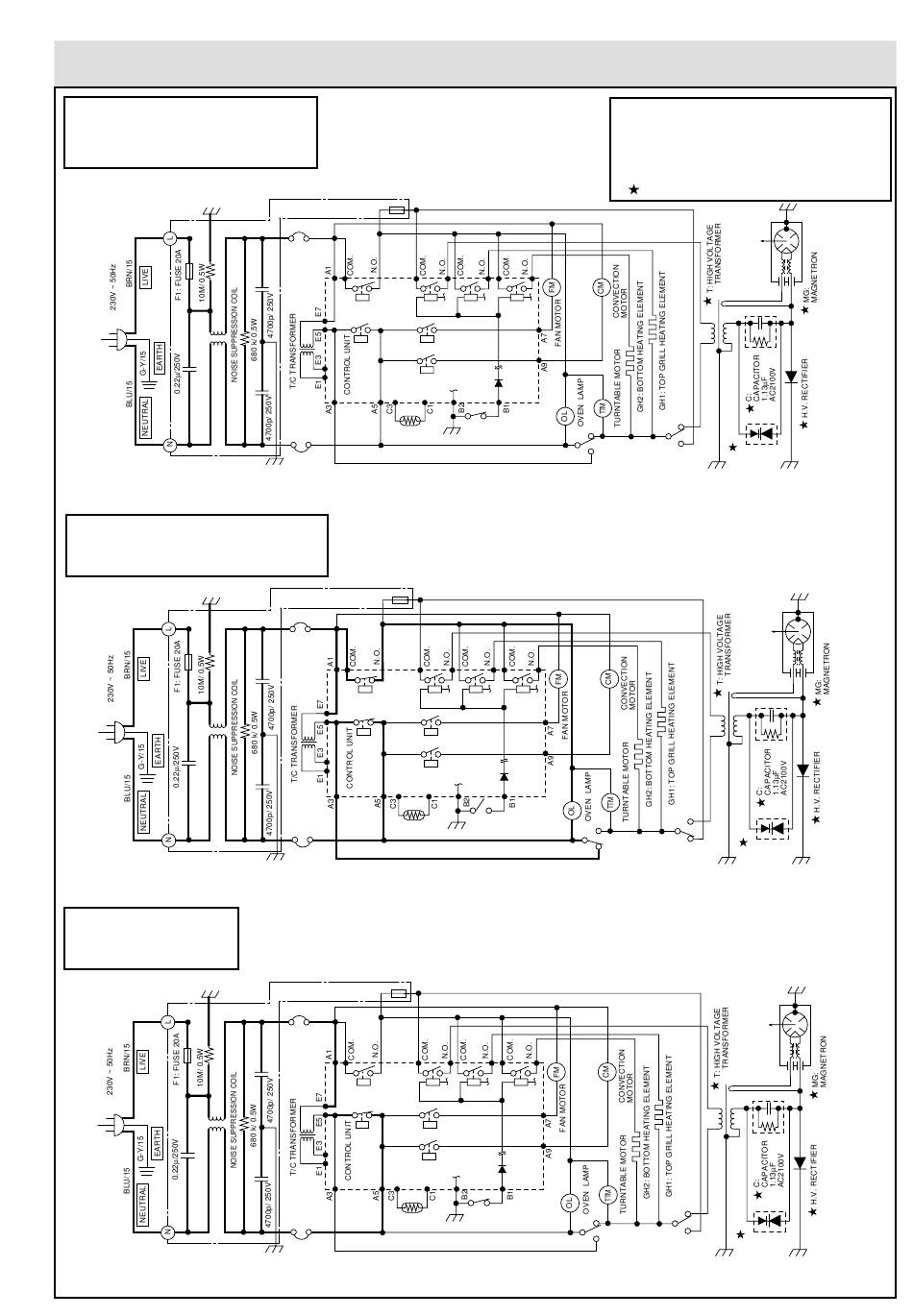

Figure O-1(a) Oven Schematic-OFF Condition right after the oven is plugged in.
SCHEMATIC
NOTE: CONDITION OF OVEN
1. DOOR CLOSED.
2. "ENERGY SAVED MODE" APPEARS ON DISPLAY.
NOISE
FILTER
Figure O-1(b) Oven Schematic-OFF Condition when the oven door is opened.
SCHEMATIC
NOTE: CONDITION OF OVEN
1. DOOR CLOSED.
2. " . O" APPEARS ON DISPLAY.
NOISE
FILTER
Figure O-1(c) Oven Schematic-OFF Condition after the oven door is closed.

SCHEMATIC DIAGRAMS

F2: FUSE F8A
TC1:
MG.
THERMAL
CUT-OUT
RY1 RY2
RY5 RY6
RY7
TC2:
OVEN
THERMAL
THERMISTOR
CUT-OUT
SW1: MONITORED LATCH SWITCH
F2: FUSE F8A
TC1:
MG.
THERMAL
CUT-OUT
RY1 RY2
RY5 RY6
RY7
TC2:
OVEN
THERMAL
THERMISTOR
CUT-OUT
SW1: MONITORED LATCH SWITCH
F2: FUSE F8A
TC1:
MG.
THERMAL
CUT-OUT
RY1 RY2
RY5 RY6
RY7
TC2:
OVEN
THERMAL
THERMISTOR
CUT-OUT
SW1: MONITORED LATCH SWITCH
R-84ST -
Note:
AC CORD CONNECTION
BRN :
BLU :
G-Y :
/15 :
"
RY3 RY4
SW2:
STOP SWITCH
NC.
RY3 RY4
SW2:
STOP SWITCH
NC.
RY3 RY4
SW2:
STOP SWITCH
NC.
35
BROWN
BLUE
GREEN AND YELLOW STRIPE
SECTIONAL AREA OF 1.5mm 2 MIN.
" Indicates components with potential above 250 V.
SW3:
NC.
MONITOR
ASYMMETRIC
SWITCH RECTIFIER
SW3:
NC.
MONITOR ASYMMETRIC
SWITCH
RECTIFIER
SW3:
NC.
MONITOR ASYMMETRIC
SWITCH RECTIFIER
