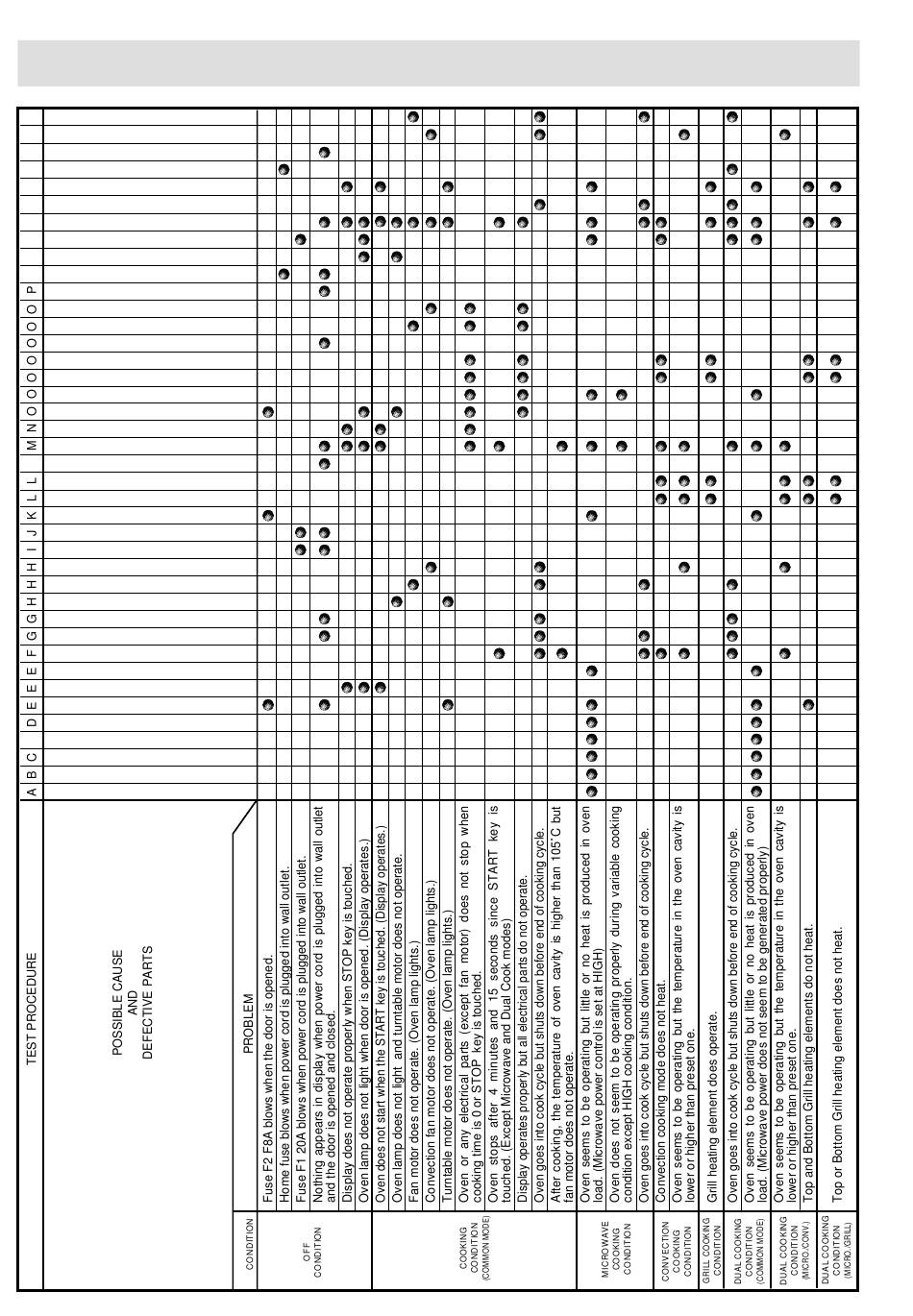

TROUBLESHOOTING GUIDE
BLOCKED COOLING FAN
BLOCKED CONVECTION FAN
NO POWER AT WALL OUTLET
HOME FUSE OR BREAKER
MIS-ADJUSTMENT OF SWITCHES
BLOCKED VENTILATION OPENINGS
OPENED WIRE HARNESS
SHORTED WIRE HARNESS
OVEN LAMP OR SOCKET
POWER SUPPLY CORD
FOIL PATTERN ON P.W.B.
RELAY RY7
RELAY RY6
RELAY RY5
RELAY RY4
RELAY RY3
RELAY RY2
RELAY RY1
KEY UNIT
TOUCH CONTROL PANEL
TC TRANSFORMER
BOTTOM GRILL HEATING ELEMENT
TOP GRILL HEATING ELEMENT
FUSE F8A F2
FUSE 20A F1
NOISE FILTER
CONVECTION FAN MOTOR
FAN MOTOR
TURNTABLE MOTOR
THERMAL CUT-OUT 150˚C TC2
THERMAL CUT-OUT 125˚C TC1
THERMISTOR
MONITOR SWITCH SW3
STOP SWITCH SW2
MONITORED LATCH SWITCH SW1
HIGH VOLTAGE CAPACITOR
H.V. HARNESS
H.V. RECTIFIER ASSEMBLY
HIGH VOLTAGE TRANSFORMER
MAGNETRON
