Summary of Contents for Sharp R-870B

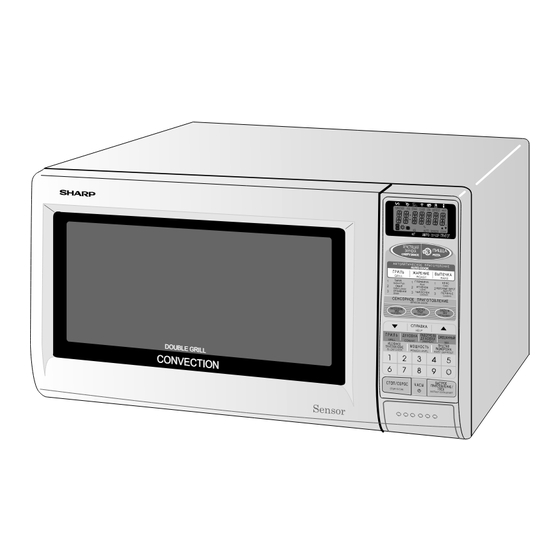

- Page 1 VBRHJDJKZJDFY GTXM C DTHÜZBV, ZBÖZBV UHBKTV B HTÖBVJV LEÜJDRB MICROWAVE OVEN WITH TOP & BOTTOM GRILLS AND CONVECTION R-870B MODEL Herjdjlcndj gj ärcgkefnfwbb b htwtgns OPERATION MANUAL...
-
Page 2: Table Of Contents
CONTENTS CJLTHÖFZBT Warning ................ E-1 Special Notes ............... E-2 Installation Instructions ..........E-3 Oven Diagram .............. E-3 Operation of Touch Control Panel ......E-4 Control Panel Display ..........E-4 Touch Control Panel Layout ........E-5 Before Operating ............E-6 Getting Started ............E-6 Stop/Clear .............. - Page 3 Name of the Manufacturing country: Produced in Thailand Name of the Manufacturing firm: Sharp Corporation Legal address of the manufacture: 22-22, Nagaike-cho, Abeno-ku, Osaka 545-8522, Japan...
-
Page 4: Warning
SERVICE CENTRE APPROVED BY SHARP. And it must be replaced by a qualified service technician trained by SHARP. 13. If the oven lamp fails please consult your dealer or qualified service technician trained by SHARP. 14. Avoid steam burns by directing steam away from the face and hands. Slowly lift the furthest edge of dish’s cover or microwave plastic wrap and carefully open popcorn and oven cooking bags... -
Page 5: Special Notes
SPECIAL NOTES DON’T Eggs, fruits, * Puncture egg yolks and whites and * Cook eggs in shells. This prevents nuts, seeds, oysters before cooking to prevent "explosion", which may damage the vegetables, "explosion". oven or injure yourself. sausages and * Pierce skins of potatoes, apples, * Reheat whole eggs. -
Page 6: Installation Instructions
If there is any damage, please do not operate the oven until it has been checked by a SERVICE CENTRE APPROVED BY SHARP and repaired, if necessary. 2. Accessories provided... -
Page 7: Operation Of Touch Control Panel
OPERATION OF TOUCH CONTROL PANEL The operation of the oven is controlled by pressing the appropriate pads arranged on the surface of the control panel. An entry signal tone should be heard each time you press the control panel to make a correct entry. In addition the oven will beep for approximately 2 seconds at the end of the cooking cycle, or 4 times when a cooking procedure is required. -
Page 8: Touch Control Panel Layout
Touch Control Panel Layout CRISPY SNACK PAD PIZZA PAD Press to select 5 Press to select 3 pizza popular snack menus. menus. AUTO ROAST PAD AUTO BAKE PAD Press to select 3 Press to select 3 popular popular roast menus. ÜHECNYOFY baking menus. -
Page 9: Before Operating
Before Operating * This oven is preset with the OPERATION GUIDE in Russian. To assist you in programming your oven, the operation guide will appear in the display. In this manual, the display of operation guide is abbreviated. * You can get operation guide in Russian, English or Malay. To change the language, see page E-39. -
Page 10: Clock Setting
Clock Setting This is a 12 hour clock. * To enter the present time of day 11:34 (AM or PM). Step Procedure Pad Order Display Press the CLOCK pad once. XFCS The dots (:) will flash on and off. Enter the correct time of day by press- ing the numbers in sequence. -
Page 11: Manual Operations
MANUAL OPERATIONS Microwave Cooking Techniques Arrange food carefully Place thickest areas toward outside of dish. Cook for the shortest amount of time indicated and add more time Watch cooking time as needed. Food severely overcooked can smoke or ignite. Check recipe for suggestions: paper towels, microwave plastic wrap or a lid. -
Page 12: Microwave Time Cooking
Microwave Time Cooking This is a manual cooking feature, first enter the cooking time then the power level. You can programme up to 99 minutes, 99 seconds. There are five different power levels. – – – – – – – – –... -
Page 13: Sequence Cooking
Instant Cook™ For your convenience Sharp’s Instant Cook allows you to easily cook for one minute on HIGH power. Step Procedure Pad Order Display Press the INSTANT COOK/START pad. -
Page 14: Slow Cook
Slow Cook The SLOW COOK setting is designed for foods which cook longer time. For example, stewing, braising, boiling soup or chinese desserts of liquid type. The SLOW COOK setting provides two choices: SLOW COOK HIGH or SLOW COOK LOW. The maximum cooking time is 2 hours for each choice when cook manually. -
Page 15: Convection Cooking
Convection Cooking Your oven has 10 preset convection temperatures (250, 230, 220, 200, 180, 160, 130, 100, 70, 40 C). When you press the CONVEC pad once, 250 C will be selected. To lower the temperature, press the CONVEC pad until the desired temperature appears in the display. Please consult your Convection Microwave Cookbook for more specific cooking instructions and procedures. - Page 16 (2) To Preheat and Cook by Convection * Suppose you want to preheat the oven to 200 C then cook for 20 minutes at 200 C. Step Procedure Pad Order Display Select preheat temperature by HFPJUHTD LEÜJDRB pressing the PREHEAT pad as PREHEAT required (for 200 C press four COOK...
-
Page 17: Preheating
Preheating For best results of Convection and Convection Mix cooking, preheat to the required temperature. Add food after preheating. * To preheat the oven to 200 C Step Procedure Pad Order Display Select preheating tempera- HFPJUHTD ture by pressing the PRE- LEÜJDRB HEAT pad as required (for PREHEAT... -
Page 18: Grill Cooking
Grill Cooking Your oven has three grill cooking modes. Select the desired grill mode by pressing the GRILL pad. For the top heater mode, press the GRILL pad once. For the bottom heater mode, press the GRILL pad twice. For the double grill mode, press the GRILL pad three times. It is not necessary to preheat for grill cooking. -
Page 19: Mix Cooking
Mix Cooking (1) To cook by Mix Cooking Your oven has four preprogrammed settings that make it easy to cook with convection and microwave or the top grill heater and microwave. Select the desired mix setting by pressing the MIX pad. You cannot change the microwave power level. Preset programme The times pressing... - Page 20 (2) To Preheat and Cook with Mix (Convection) * Suppose you want to preheat the oven to 250 C and cook for 20 minutes on Convec Mix High. Step Procedure Pad Order Display Select preheat temperature by HFPJUHTD pressing the PREHEAT pad as LEÜJDRB required (for 250 C press once).
-
Page 21: Automatic Operations
AUTOMATIC OPERATIONS Notes for Automatic Operations will be displayed if: more or less than the quantity or weight of foods suggested in each MENU GUIDE is programmed when the INSTANT COOK/START pad is pressed. To clear, press the STOP/CLEAR pad and reprogramme. 2. -
Page 22: Crispy Snack
Crispy Snack 1. Potato Skin ÜHECNYOFY 2. Garlic Bread CRISPY SNACK will automatically compute the PFRECRF 3. Chicken Wings cooking mode and cooking time. CRISPY SNACK 4. Salty Peanuts 5. Convenient Food * Suppose you want to cook 1 serve of Potato Skins. Step Procedure Pad Order... - Page 23 Crispy Snack Menu Guide Initial Quantity Menu Procedure Menu Temperature (one serve only) • Cut out the potato skins into slices of Potato Skin 20-25˚C 350 g 0.5 cm thick, 5 x 7 cm in size (total Room weight of potato skins should be around temperature Ingredients: 350 g).
-
Page 24: Pizza
Pizza 1. Frozen PIZZA will automatically compute the cooking mode GBWWF 2. Fresh (Thin) and cooking time. PIZZA 3. Fresh (Thick) * Suppose you want to cook 0.5 kg of frozen pizza (1 pizza). Step Procedure Pad Order Display Press the PIZZA pad until the desired HELP menu number is displayed (for Frozen GBWWF... - Page 25 HOMEMADE PIZZA RECIPES [Ingredients](1 portion) Dough: Flour ......... 150 g Water (lukewarm) ....90 ml Yeast ..........7 g Sugar ......... 1 tsp Salt .......... 1/2 tsp Olive Oil ........2 tsp Toppings: Canned Tomatoes ..... 50 g Tomate Paste ......50 g * Topping varieties .....
-
Page 26: Auto Grill
Auto Grill AUTO GRILL will automatically compute the cook- 1. Grilled Fish ing mode and cooking time for the 3 listed menus. UHBKM 2. Grilled Lobster Follow the details provided in Auto Grill Menu GRILL 3. Steak Guide. * Suppose you want to cook 0.6 kg of Steak. Step Procedure Pad Order... - Page 27 Auto Grill Menu Guide Initial Menu Weight (KG) Procedure Menu Temperature Grilled Fish 8 - 12˚C 0.1 - 0.4kg • Wash fish thoroughly and remove scales. • Make a few slits on the skin of fish, pierce eg: Hake the eyes of fish. Bass •...
-
Page 28: Auto Roast
Auto Roast AUTO ROAST will automatically compute the cooking 1. Beef ÖFHTZBT mode and cooking time for the 3 listed menus. 2. Lamb ROAST Follow the details provided in Auto Roast Menu 3. Chicken Guide. * Suppose you want to cook 1.0 kg of Lamb. Step Procedure Pad Order... - Page 29 Auto Roast Menu Guide Initial Menu Weight (KG) Menu Procedure Temperature Beef 8 - 12˚C 1.0 - 1.6kg • Place fat side down on low rack, uncovered. * You can select desired • When oven has stopped, turn beef cooking result. over and shield the well cooked MORE —Well done portions where necessary.
-
Page 30: Auto Bake
Auto Bake AUTO BAKE will automatically compute the cooking 1. Cake DSGTXRF mode and cooking time for the 3 listed menus. 2. Apple Pie BAKE There is one recommended serving for each menu, 3. Cookies follow the details provided in Auto Bake Menu Guide. - Page 31 Auto Bake Menu Guide Initial Menu Menu Quantity Procedure Temperature Cake 20 - 25˚C Make one • Remove turntable before preheating. (Plain cake) Room 22cm • Preheat is automatic for this menu. temperature round cake • Prepare the cake as in the recipe on AB-1 page E-29.
- Page 32 Auto Bake Recipe Plain Cake [ Ingredients ] [ Method ] 180 g self raising flour 1. Mix butter and sugar thoroughly until light and fluffy. 1/2 tsp baking powder 2. Add in beaten eggs and mix well. 80ml milk 3.
-
Page 33: Sensor Rice Cook
Sensor Rice Cook 1. Rice Press to select 3 popular rice menus. GHBUJNJDKTZBT 2. Congee Follow the detailes provided in Sensor Rice Cook HBCF RICE COOK 3. Porridge Menu Guide. * Suppose you want to cook 2 serves of Rice: — Procedure Pad Order Display... - Page 34 Sensor Rice Cook Menu Guide Menu Quantity Procedure Menu Rice 1-2 serves • Wash rice until water runs clear. • Place rice and water into a deep Serving (s) Rice Water casserole (about 2 ) and soak 1 serve (1-2 persons) 150g 250ml for 30 mins.
-
Page 35: Sensor Reheat Dish
Sensor Reheat Dish SENSOR REHEAT DISH will automatically compute the HFPJUHTD power level and cooking time. GBOB REHEAT DISH Follow the details provided in Sensor Reheat Dish Menu Guide. * Suppose you want to reheat dish. Procedure Pad Order Display Step Press the SENSOR REHEAT DISH HFPJUHTD... -
Page 36: Sensor Steam Menu
Sensor Steam Menu Press to select 3 popular steam menus. 1. Fish Follow the details provided in Sensor Steam Menu >K*LF ZF 2. Meat GFHE Guide. STEAM MENU 3. Dumpling * Suppose you want to cook 3 serves of Fish: — Procedure Pad Order Display... - Page 37 Sensor Steam Menu Menu Guide Menu Initial Quantity Procedure Menu Temperature • Wash fish thoroughly and remove scales. Fish 8-12 C 1 - 3 serves • Make a few cuts on the skin of fish, pierce eg: Sea Bream (130-420g) the eyes of fish.
-
Page 38: Easy Defrost
Easy Defrost GHJCNFY HFPVJHJPRF The Easy Defrost feature allows you to defrost meats by entering weight. EASY DEFROST * Suppose you want to defrost 1.0 kg of Chicken Pieces. (Round off to nearest 0.1 kg) Procedure Pad Order Display Step Press the EASY DEFROST pad . - Page 39 Easy Defrost Menu Guide QUANTITY MENU PROCEDURE (MIN. – MAX.) 0.1 - 2.0 kg Steaks • Shield thin end of chops or steaks with foil. Chops • Position the food with thinner parts in the centre in a single layer on the defrost rack. If pieces are stuck together, try to separate as soon as possible.
-
Page 40: Other Convenient Features
OTHER CONVENIENT FEATURES Help Feature CGHFDRF The HELP feature has 5 different programs. HELP (1) Auto Start The Auto Start feature allows you to set your oven to start automatically. Auto Start can be used for manual cooking, Slow Cook or Sensor Rice Cook. * Suppose you want to start cooking a casserole for 20 minutes on MEDIUM at 4:30 in the afternoon. - Page 41 (2) Child Lock If the oven is accidentally started with no food or liquid in the cavity, the life of the oven can be reduced. To prevent accidents like this, your oven has a "Child Lock" feature that you can set when the oven is not in use.
-
Page 42: Alarm
(3) Demonstration Mode This feature is mainly for use by retail outlets, and also allows you to practice key operations. * To demonstrate. After step 1 for Auto Start. Step Procedure Pad Order Display Press the number 3 pad. HELP Press the INSTANT COOK/START pad. -
Page 43: Less/More Setting
Multi Cook Less/More Setting To adjust the cooking time to your individual preference -use the "more" or "less" feature to either add (more) or reduce (less) cooking time. The LESS/MORE pads can be used to adjust the cooking time of the following features: — –... -
Page 44: Care And Cleaning
CARE AND CLEANING IMPORTANT: Do not touch around the oven lamp directly when cleaning. This part will become hot during the oven lamp lights. Use the thick cloth for cleaning the oven to avoid burns. Before cleaning, make sure the oven door, outer cabinet, oven cavity, ventilation openings, turntable, turntable support, racks and bottom heater are not hot. -
Page 45: Service Call Check
If both the wall socket and the fuse are functioning properly, CONTACT YOUR NEAREST SERVICE CENTER APPROVED BY SHARP. NOTE: 1. If time in the display is counting down rapidly, check Demonstration Mode. (Please see E-39 for detail.) 2.
