Summary of Contents for Ventus W225

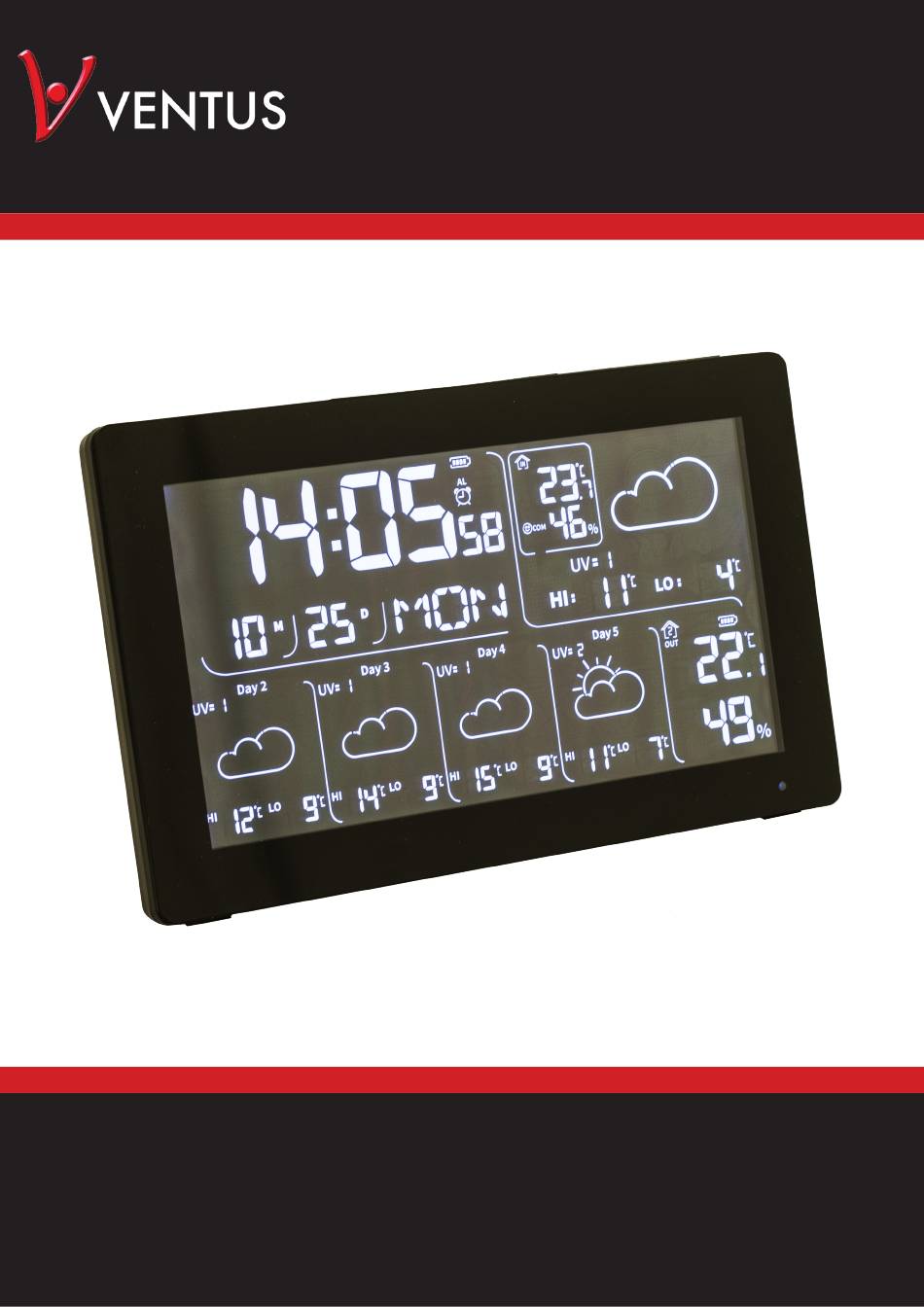

- Page 1 Weather station Vejrstation Väderstation Sääasemat Manual | Brugsanvisning | Instruktionsbok | Ohjeet Size: 196 x 125 x 25 mm Imported by / Importeret af NSH NORDIC A/S Virkefeltet 4 DK-8740 Braedstrup Art. no. W225 Made in PRC EAN 5705858718460...
- Page 2 Weather Station Instruction Manual • Weather station x 1 • Outdoor sensor x 1 • Power adapter for base unit x 1 • Instruction manual x 1 Device overview (main unit) LCD display and function keys (main unit) 1. WIFI signal identification 2.
-
Page 3: Battery Operation
Sensor Function keys (outdoor sensor) Current channel Outdoor temperature Outdoor humidity Red pilot light Loop for hanging Sliding swith 1 2 3: Set sensor number (transmission channel) Battery compartment Setup Follow the instructions in the order described and first put the batteries in the wireless sensor. This is the only way for the weather station to function without any problems. - Page 4 YOU SHOULD INSTALL THE APP, AS FOLLOWS: 1.Download Tuya Smart APP 2.Click to install the app 1 and 2 3.Fill in to register account 4.Click to add a device...
- Page 5 5.To enter this interface, you need to long press the device SNOOZE.LIGHT button, click to automatically discover the device or add a device when appears. 6. After the addition is complete, enter the five-day weather control interface.
-
Page 6: Manual Adjustment
Opration instructions! Manual adjustment 1.Power on or reset, and enter the RF receiving state at the same time ➢ RF symbol, flashes exits the receiving state after 3 minutes, and Out displays the temperature and humidity of the corresponding CH. General operation A total of 6 buttons: Mode, Channel, Alert, +, -, Snooze/Light 1. - Page 7 Alarm & Settings There are 3 groups of alarms by default. The default time 7:00 shows: 1. Setting operation: ➢Press Mode key to switch display A1 A2 A3 ➢Press ”+” or ”-” to on/off the corresponding Alarm ➢Long press the Alarm key for 2 seconds to enter the corresponding Alarm setting ➢Setting sequence: Hour →...
-
Page 8: Temperature Alarm & Setting
Temperature alarm & setting 1. Single press the Alert key, on/off Alert, is lit to indicate Alert on. 2. Press and hold the Alert key for >3 seconds to enter the Alert setting: ➢Setting sequence: select indoor alarm/outdoor alarm, upper limit temperature and lower limit temperature ➢When indoor or outdoor is selected, the corresponding will flash ➢During the setting process, single press ”+”... - Page 9 Time & weather forecast 1. Press the ”Snooze/Light” button to update the weather & time 2. The meaning of weather graphics Sunny Cloud Overcast Thunder thundershower/ Thunderstorm thundershower with hail Rain Moderate rain Heavy rain Rainstorm Rain shower Heavy shower Snow Moderate snow Heavy snow...
-
Page 10: Technical Specifications
Technical specifications Main unit Batteries: 3 x AAA / 1.5 V (Not included) Temperature measuring range: 0°C to +50°C Resolution: 0.1 °C Temperature accuracy: 0°C ~ 40°C: +/-1°C, over 40°C: +/-2°C Humidity measuring range: 20 % to 95 % relative humidity Humidity measuring accuracy: +/- 5 % with a measuring range of 30% to 80%, +/- 8% for other measuring range Resolution: 1 %... - Page 11 Brugsanvisning for VENTUS vejrstation W225 Indhold: • Vejrstation x 1 • Udendørs sensor x 1 • 230 volt adapter x 1 • Brugsanvisning x 1 Vejrstation overblik LCD display symbol forklaring 1. WIFI signal indikator 2. DST symbol (sommertid) 3. Dato 4.
-
Page 12: Isætning Af Batterier
Udendørs sensor Funktion og symbol forklaring 1. Nuværende kanal 2. Udendørs temperatur 3. Udendørs luftfugtighed 4. Signal indikator 5. Ophængshul 6. Skyde knap for valg af kanal (1-2-3) 7. Batter kammer Opstart Følg instruktionerne i den rækkefølge som beskrevet. Start med at isætte batterier i den trådløse udendørs sensor. - Page 13 Installer Tuya app’en på følgende måde: 1.Download Tuya Smart APP 2. Tryk for at installere app’en 1 og 2 3.Udfyld for at oprette konto (gratis) 4.Tryk for at tilføje enhed (add device)
- Page 14 5. For at tilslutte vejrstationen til app’en, holdes SNOOZE.LIGHT knappen nede i 5 sekunder. Tryk på Auto Scan eller tryk når ”go to add” fremkommer. 6. Efter tilslutningen til App’en kan du se din 5 dages vejrudsigt. Indstille alarmer m.m. fra din mobil...
-
Page 15: Manuel Indstilling
Brugsanvisning! Manuel indstilling 1.Sæt strøm til vejrstationen og RF symbolet for udendørs sensoren starter med at søge/blinke. RF Symbolet blinker i 3 minutter, hvorefter den udendørs temperatur, luftfugtighed og tilhørende Kanal vises i displayet. (RF = radio frekvens) Hvis forbindelse ikke opnås, hold knappen CHANNEL nede i 3 sekunder og processen starter igen. - Page 16 Alarm Indstilling Der er mulighed for, at indstille 3 forskellige alarm tidspunkter. 1. Indstilling af alarm tidspunkt: ➢ Tryk på Mode knappen for at vælge / skifte mellem alarm A1 A2 A3 ➢ Tryk derefter på MODE i 3 sekunder for at indstille alarmtidspunkt. Time, minut. Dage kan indstilles i følgende intervaller: Alle dage, Alle hverdage eller weekend, her trykkes på...
- Page 17 Hukommelse 1. Tryk på UP knappen for at skifte temperaturen mellem nuværende, MAX og MIN temperatur . 2. Når MAX eller MIN temperatur vises, tryk på UP knappen i 3 sekunder for at nulstille MAX/MIN. Der vise ”--.-” i displayet i 3 sekunder, hvorefter displayet returnerer til nuværende temperatur. 3.
- Page 18 Time & weather forecast 1. Press the ”Snooze/Light” button to update the weather & time 2. The meaning of weather graphics Sunny Cloud Overcast Thunder thundershower/ Thunderstorm thundershower with hail Rain Moderate rain Heavy rain Rainstorm Rain shower Heavy shower Snow Moderate snow Heavy snow...
-
Page 19: Tekniske Specifikationer
Tekniske specifikationer Vejrstation Batterier: 3 x AAA / 1.5 V (medfølger ikke) Temperatur måle område: 0°C til +50°C Temperatur tolerance: 0°C ~ 40°C: +/-1°C, over 40°C: +/-2°C Luftfugtigheds måle område: 20 % til 95 % relativ luftfugtighed Luftfugtigheds tolerance: +/- 5 % i området 30% to 80%, +/- 8% for andre områder Sensor Batterier: 2 x AAA / 1.5 V (medfølger ikke) Temperatur måle område: - 50°C til 70°C...
