Contact Nexans LAN Systems Table of Contents Tel.: +49 (0) 2166 27 2220 sales.ans@nexans.com TABLE OF CONTENTS Table of Contents ................................2 General Information ................................3 Safety Instructions................................4 Product Labels .................................. 6 Product Features................................7 Interfaces ..................................10 LED Indicators ................................12 Mounting Options ................................ -
Page 3: General Information
Scope of the manual This manual is valid for the Nexans XGigaSwitch series in combination with the current version of the Nexans Device Manager, LANactive Manager Version 7.02. The User Manual may include more than one product. Part of the content, e.g. some use cases or specifications, may only apply to some of them. -
Page 4: Safety Instructions
Contact Nexans LAN Systems Safety Instructions Tel.: +49 (0) 2166 27 2220 sales.ans@nexans.com SAFETY INSTRUCTIONS Safety instructions Only qualified personnel may install and commission the XGigaSwitch. Country-specific regulations must be observed. • It is only allowed to install the device in a dry and dust-free environment. - Page 5 Contact Nexans LAN Systems Safety Instructions Tel.: +49 (0) 2166 27 2220 sales.ans@nexans.com Recovery after storage and transport Moisture can condensate on the unit if the unit has been stored or transported at low temperatures and subsequently taken into a warm room. To avoid any damage please wait till any moisture condensation has vanished from the unit's surface before switching the unit on.
-
Page 6: Product Labels

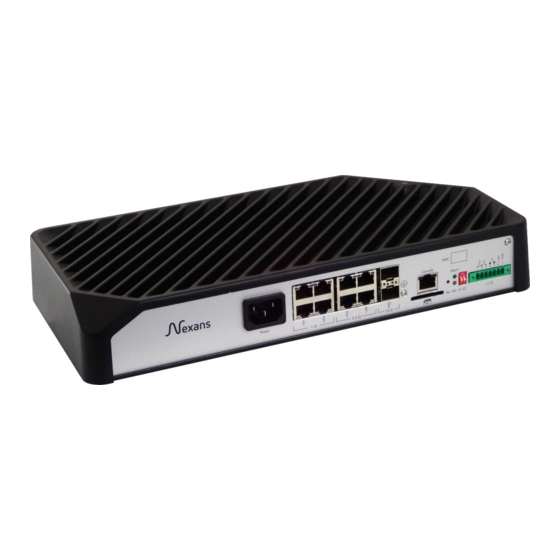

PRODUCT LABELS The Nexans LANactive XGigaSwitch DICE is equipped with product labels for the purposes of quality assurance and documentation. The product labels contain unique device-specific information that can be used for project documentation. This information includes MAC address and serial number. The two numbers are unique and refer to each individual device. -
Page 7: Product Features
Wide Input Voltage Range: 46 ... 57V DC or 90 ... 264V AC Description Nexans LANactive XGigaSwitch is optimized for supporting Wireless LAN infrastructures. Based on MultiGigabit copper and 10 Gigabit SFP+ interfaces the switch is able to support the bandwidth required by the latest Wireless LAN standards. - Page 8 Contact Nexans LAN Systems Product Features Tel.: +49 (0) 2166 27 2220 sales.ans@nexans.com Technical Data The following table contains the basic technical data and the differences in the available versions. A detailed technical overview can be found in the corresponding datasheet of the products.
- Page 9 Contact Nexans LAN Systems Product Features Tel.: +49 (0) 2166 27 2220 sales.ans@nexans.com Dimensions Figure 3: XGigaSwitch dimensions Page 9/30 Generated 2021-11-30...
-
Page 10: Interfaces
Contact Nexans LAN Systems Interfaces Tel.: +49 (0) 2166 27 2220 sales.ans@nexans.com INTERFACES XGigaSwitch DICE 8TP 2SFP+ AC Figure 4: Interfaces of XGigaSwitch DICE 8TP 2SFP+ AC 230V AC Power Connector (Type: C14) 90…264V AC ~50/60Hz, 6.5A(115V), 3.0A (230V) RJ45 Port 1-4: 1000Base-T (1000/100/10 Mbps) RJ45 Port 5-8: 2.5GBase-T (2500/1000/100 Mbps) - Page 11 Contact Nexans LAN Systems Interfaces Tel.: +49 (0) 2166 27 2220 sales.ans@nexans.com XGigaSwitch DICE 8TP 2SFP+ DC Figure 5: Interfaces of XGigaSwitch DICE 8TP 2SFP+ DC 54V DC Power Connector , see chapter: Power Connection on page 17 RJ45 Port 1-4: 1000Base-T (1000/100/10 Mbps) RJ45 Port 5-8: 2.5GBase-T (2500/1000/100 Mbps)
-
Page 12: Led Indicators
Contact Nexans LAN Systems LED Indicators Tel.: +49 (0) 2166 27 2220 sales.ans@nexans.com LED INDICATORS The following table shows the LED status. Management LED (Mgmt) Blue on Switch is booting Blue flashing Loading firmware Green flashing DHCP running Green on... - Page 13 Contact Nexans LAN Systems LED Indicators Tel.: +49 (0) 2166 27 2220 sales.ans@nexans.com TP Links No link detected Green on Link detected Green flashing Data traffic detected PoE Status PoE disabled Yellow on PoE enabled SFP+ Links No link detected...
-
Page 14: Mounting Options
Contact Nexans LAN Systems Mounting Options Tel.: +49 (0) 2166 27 2220 sales.ans@nexans.com MOUNTING OPTIONS The XGigaSwitch DICE can be physically installed in various ways. It can be used as a desktop device or in combination with different types of mounting kits. - Page 15 Contact Nexans LAN Systems Mounting Options Tel.: +49 (0) 2166 27 2220 sales.ans@nexans.com Figure 8: Mounting Plate with additional strain-relief Figure 9:Mounting Plate with strain-relief and DICE The XGigaSwitch DICE is mounted via a so-called hook-on mechanism to the mounting plate. Detailed information regarding the installation are written in a separate document.
- Page 16 19” Installation To install the LANactive XGigaSwitch DICE in a 19” rack the following adaptors are available (part number: 88646402). Figure 10: 19" Mounting Kit The adaptors are mounted with the attached screws on the bottom side of the XGigaSwitch DICE.
-
Page 17: Power Connection
The XGigaSwitch DICE DC version has no integrated power supply and must be connected to a 54V DC power source. It is recommended to use the power supply unit offered by Nexans (see chapter External Power Supply on page 18Fehler! Textmarke nicht definiert.). - Page 18 Contact Nexans LAN Systems Power Connection Tel.: +49 (0) 2166 27 2220 sales.ans@nexans.com External Power Supply Figure 13: Desktop PSU 88646283 Ordering Information Desktop Power Supply 54VDC/240W Article Number 88646283 Output Power 240W Connector Primary Connector Secondary 3-pin plug-in terminal...
-
Page 19: Power Over Ethernet
Wireless LAN Access Points, IP video cameras etc., while using the "normal" Ethernet standard cable, i.e. without any additional cable tangle. Function An power source equipment (PSE) ensures the power supply of a powered device (PD). Nexans LANactive XGigaSwitch DICE series supports all three different PoE standards. •... - Page 20 Contact Nexans LAN Systems Power over Ethernet Tel.: +49 (0) 2166 27 2220 sales.ans@nexans.com Power Source Equipment (PSE+) Thanks to the optional Power over Ethernet functionality, PoE-capable end devices can be supplied with power in accordance with corresponding IEEE 802.3 standard directly from the switch. The Power over Ethernet functions can be parameterized, controlled and monitored via management.
-
Page 21: Grounding
Power over Ethernet (PoE) is used and multiple powered (PD) devices are connected to the switch. Nexans confirms that all LANactive switches are developed and manufactured according to the requirements of the PoE standards as defined by the Institute of Electrical and Electronics Engineers (IEEE) IEEE802.3af, IEEE802.3at and IEEE802.3bt. -
Page 22: Memory Cards And Console Cables
Pre-installed in the switch Console configuration cables The V.24 console port on Nexans switches allows you to configure the switch on site and/or retrieve its status without an Ethernet network connection. Configuration via the V.24 console port provides the same functionality as configuration via Telnet or SSH. -
Page 23: I/O Module
I/O MODULE The Nexans XGigaSwitch supports I/O ports on the front side of the device. The output, digital inputs and 24V DC output are electrically isolated against each other. The status and fault diagnostics of the I/O ports are monitored in the switch management. -
Page 24: Start-Up - Booting
START-UP – BOOTING Nexans LANactive XGigaSwitch DICE can be operate in different modes called ‘Operation Mode’. The following chapter explain the differences and how to switch between the different modes. If nothing is changed the switch boots with the default configuration stored in flash and DHCP for dynamic IP address assignment. - Page 25 Nexans default configuration comes with DHCP for addressing the switch. The switch sends a DHCP request as soon as the Status-LED lights up permanently on the management module. If it receives a valid response from a DHCP server, the IP parameters are accepted, and the management module can be immediately accessed via the assigned IP address.
-
Page 26: Ans Support Portal
Management Hardware HW3, HW2 and HW1. The current version of LANactive Manager also includes the configuration options for all new firmware features. If you are not yet a registered user of the Nexans Support Portal, please register at the Nexans support portal http://www.nexans-ans.de/support/ and download the latest version of the firmware and the management tool. -
Page 27: Ec Declaration Of Conformity
Technical documentation for the assessment of electrical and electronic products with respect to the restriction of hazardous substances The quality and environmental management system of Nexans Advanced Networking Solutions GmbH according to DIN EN ISO 9001:2000 and DIN EN ISO 14001:2005 ensures compliance with the European Directives and the fulfilment of the relevant standards of the European standards bodies CEN, CENELEC and ETSI. -
Page 28: Accessories
LANactive Manager Single User Licence 88301909 LANactive Manager Company Licence 88301920 LANactive Manager Controller Licence Nexans device manager can be downloaded free of charge for evaluation purposes (max. five switches in device list and delayed starting screen) at www.nexans-ans.de/support/ Page 28/30 Generated 2021-11-30... - Page 29 Small Form Factor Pluggable Transceiver Nexans Part No. Description Nexans SFP+, 10G Base-SR, 850nm MM; 10 Gigabit Ethernet; Multimode; Tx/Rx: 850/850nm; 88646390 400m@OM4; LC-duplex; DDM Support; temp.r: -40°C/+85°C; dual fibre Nexans SFP+, 10G Base-LR, 1310nm SM; 10 Gigabit Ethernet; Singlemode; Tx/Rx: 88646391 1310/1310nm;...
- Page 30 Bonnenbroicher Str. 2-14 41238 Monchengladbach Germany Tel: +49 2166 27-2220 Fax: +49 2166 27-2499 Alsembergsesteenweg 2, b3 B-1501 Buizingen Belgium Tel: +32 (0)2 363 38 00 Fax: +32 (0)2 365 09 99...
