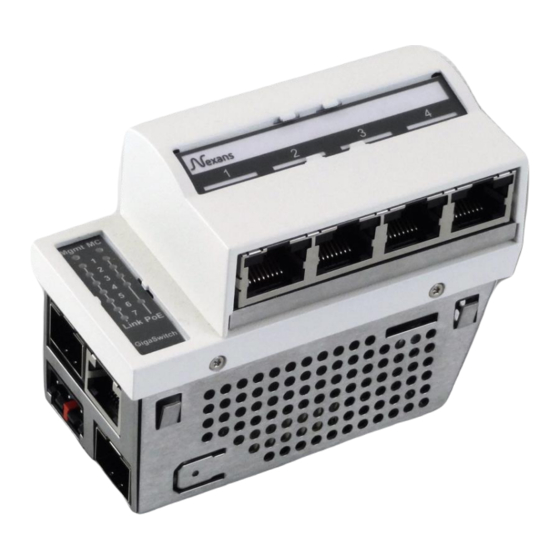

- Page 1 88303960 GigaSwitch V5 TP(PSE+) SFP-2VI 54VDC IND 88303965 GigaSwitch V5 TP SFP-2VI 54VDC IND 88303963 GigaSwitch V5 TP SFP-VI 230VAC IND...
-
Page 2: Foreword
Nexans “Made in Germany” IT-networking solutions have proven their reliability in countless projects with over 1 million user ports installed. As a market pioneer for Fibre To The Office Systems, Nexans has a strong R&D heritage based on the principal of close customer centric product development and supports customers through all stages of even the most complex projects with a dedicated support department. -
Page 3: Table Of Contents
Contact Nexans LAN Systems Table of Contents Tel.: +49 (0) 2166 27 2220 sales.ans@nexans.com TABLE OF CONTENTS Foreword ................................... 1 Table of Contents ................................3 EC Declaration of Conformity ............................4 Features and Benefits ............................... 5 Specifications ..................................6 Dimensions ..................................9 Interface Description ............................... -
Page 4: Ec Declaration Of Conformity
EN 50581:2012: Technical documentation for the assessment of electrical and electronic products with respect to the restriction of hazardous substances The quality and environmental management system of Nexans Deutschland GmbH according to DIN EN ISO 9001:2000 and DIN EN ISO 14001:2005 ensures compliance with the European Directives and the fulfilment of the relevant standards of the European standards bodies CEN, CENELEC and ETSI. -
Page 5: Features And Benefits
Switch Management and Zero-Touch Configuration Nexans LANactive Manager allows a simple and secure configuration of all device parameter of the GigaSwich series. With the LANactive Manager a larger number of GigaSwitches can be managed and monitored at the same time. In combination with Nexans Zero-Touch Configuration, the LANactive Manager allows automatic distribution of configurations and firmware updates. -
Page 6: Specifications
Contact Nexans LAN Systems Specifications Tel.: +49 (0) 2166 27 2220 sales.ans@nexans.com SPECIFICATIONS General Specifications GigaSwitch V5 TP SFP-2VI GigaSwitch V5 TP(PSE+) SFP-2VI Ordering Information 54VDC IND 54VDC IND Article Number 88303965 88303960 Interfaces User Ports (RJ45) 4x 1000Base-T Uplink Ports (SFP) - Page 7 Contact Nexans LAN Systems Specifications Tel.: +49 (0) 2166 27 2220 sales.ans@nexans.com Low Voltage Directive RoHS 2 2011/65/EU Engineering Standards EN 62368-1, EN 55032, EN 61000-6-2, EN 50581 Page 7/33 Generated 2021-11-17...
- Page 8 Contact Nexans LAN Systems Specifications Tel.: +49 (0) 2166 27 2220 sales.ans@nexans.com Ordering Information GigaSwitch V5 TP(PSE+) SFP-2VI 54VDC IND Article Number 88303963 Interfaces User Ports (RJ45) 4x 1000Base-T Uplink Ports (SFP) 2x 100/1000Mbps Uplink Ports (RJ45) 1x 1000Base-T RJ45 Ports...
-
Page 9: Dimensions
Contact Nexans LAN Systems Dimensions Tel.: +49 (0) 2166 27 2220 sales.ans@nexans.com DIMENSIONS Figure 1: LANactive GigaSwitch dimensions Page 9/33 Generated 2021-11-17... -
Page 10: Interface Description
Contact Nexans LAN Systems Interface Description Tel.: +49 (0) 2166 27 2220 sales.ans@nexans.com INTERFACE DESCRIPTION 88303960 Number Description Port 1 - 4: RJ45 User Ports (PoE-PSE) Memory card slot (microSD) Grounding terminal Port 7: SFP Uplink 3-pin power connection Port 6: RJ45 Uplink (PoE-PSE) - Page 11 Contact Nexans LAN Systems Interface Description Tel.: +49 (0) 2166 27 2220 sales.ans@nexans.com 88303963 Number Description Port 1 - 4: RJ45 User Ports Memory card slot (microSD) Grounding terminal Function input 3-pin AC power connection Port 6: RJ45 Uplink Port 5: SFP Uplink...
-
Page 12: Product Labels
PRODUCT LABELS Nexans LANactive GigaSwitch devices are equipped with product labels for the purposes of quality assurance and documentation. The product labels contain unique device-specific information that can be used for project documentation. This information includes MAC address and serial number. The two numbers are unique and refer to each individual device. -
Page 13: Safety Instructions
WASTE MANAGEMENT After use, the Nexans LANactive GigaSwitch and all electronic parts contained in the scope of delivery must be disposed of properly according to legal law at a responsible collection point. -
Page 14: Din-Rail Installation
Figure 4: DIN-Rail Mounting Kit for GigaSwitch The DIN-Rail Mounting Kit allows an easy and fast installation of Nexans GigaSwitch on the 35mm DIN-Rail in electrical cabinets. The switch can be mounted in horizontal and vertical position. See page 15 how to turn the ports. -
Page 15: Horizontal And Vertical Installation
Contact Nexans LAN Systems Horizontal and Vertical Installation Tel.: +49 (0) 2166 27 2220 sales.ans@nexans.com HORIZONTAL AND VERTICAL INSTALLATION Horizontal and vertical installation with a 45 mm Snap-in design The GigaSwitch is designed primarily for installation in parapet and cable ducts with horizontal guidance. The low overall height and the vertical guidance of the connection lines extend the range of use also to underfloor systems, e.g. - Page 16 Contact Nexans LAN Systems Horizontal and Vertical Installation Tel.: +49 (0) 2166 27 2220 sales.ans@nexans.com Page 16/33 Generated 2021-11-17...
-
Page 17: Power Connection
Contact Nexans LAN Systems Power Connection Tel.: +49 (0) 2166 27 2220 sales.ans@nexans.com POWER CONNECTION Pin assignment of the 3-pin DC connector Figure 6: DC Pin assignment Figure 7: DC Power connection In any case please check the correct pin assignment and the correct polarity of the wiring at the supply unit. - Page 18 Contact Nexans LAN Systems Power Connection Tel.: +49 (0) 2166 27 2220 sales.ans@nexans.com Pin assignment of the 3-pin AC connector Figure 9: AC Pin assignment Figure 10: AC Power connection In any case please check the correct pin assignment and the correct polarity of the wiring at the supply unit.
-
Page 19: Grounding
This becomes much more important if Power over Ethernet (PoE) is used and multiple powered devices (PD) are connected to the GigaSwitch. Nexans confirms that all LANactive switches are developed and manufactured according to the requirements of the PoE standards as defined by the Institute of Electrical and Electronics Engineers (IEEE) IEEE802.3af, IEEE802.3at and IEEE802.3bt. -
Page 20: Hardware Installation
Contact Nexans LAN Systems Hardware Installation Tel.: +49 (0) 2166 27 2220 sales.ans@nexans.com HARDWARE INSTALLATION Check the installation location, cables should be Note the assignment of the connector. The loose and movable. Pre-install the DIN-Rail Mounting connection plug is included in the scope of delivery. - Page 21 Contact Nexans LAN Systems Hardware Installation Tel.: +49 (0) 2166 27 2220 sales.ans@nexans.com Connect the 3-pin connector to the switch. The green AC connector of the GigaSwitch is a screw-on type. Use a screwdriver to fix the connector to the switch.
-
Page 22: Power Over Ethernet
Wireless LAN Access Points, IP video cameras etc., while using the "normal" Ethernet standard cable, i.e. without any additional cable tangle. Function An power sourcing equipment (PSE) ensures the power supply of a powered device (PD). Nexans LANactive GigaSwitch V5 series supports all two different PoE standards. •... - Page 23 Contact Nexans LAN Systems Power over Ethernet Tel.: +49 (0) 2166 27 2220 sales.ans@nexans.com Power Source Equipment (PSE+) Thanks to the optional Power over Ethernet (PoE+) functionality, PoE-capable end devices can be supplied with power in accordance with IEEE 802.3at directly from the switch. The Power over Ethernet functions can be parameterized, controlled and monitored via management.
-
Page 24: Memory Cards And Console Cable
Card with MAC integrated Console configuration cables The V.24 console port on Nexans switches allows you to configure the switch on site and/or retrieve its status without an Ethernet network connection. Configuration via the V.24 console port provides the same functionality as configuration via Telnet or SSH. -
Page 25: Led Behavior
Nexans LAN Systems LED Behavior Tel.: +49 (0) 2166 27 2220 sales.ans@nexans.com LED BEHAVIOR The Nexans LANactive GigaSwitch V5 has 15 different LEDs. In the following table the meaning of the differed LEDs and colours is listed. LED colour Description Blue on... -
Page 26: Start-Up - Booting
Nexans default configuration comes with DHCP for addressing the switch. The switch sends a DHCP request as soon as the Management LED is permanently on. If it receives a valid response from a DHCP server, the IP parameters are accepted, and the management module can be immediately accessed via the assigned IP address. -
Page 27: Configuration- And Reset Button
Contact Nexans LAN Systems Configuration- and Reset Button Tel.: +49 (0) 2166 27 2220 sales.ans@nexans.com CONFIGURATION- AND RESET BUTTON The pushbuttons are accessible after removing the LED cover plate. They can be operated using a thin pin, such as a bent-open paper clip. - Page 28 Contact Nexans LAN Systems Configuration- and Reset Button Tel.: +49 (0) 2166 27 2220 sales.ans@nexans.com Configuration pushbutton 1. Hold configuration pushbutton >3 sec. By pressing and holding the configuration pushbutton (min. 3 seconds) the switch will change into the configuration mode, which is indicated by the Management LED switching off.
-
Page 29: Lanactive Manager
Tel.: +49 (0) 2166 27 2220 sales.ans@nexans.com LANACTIVE MANAGER Nexans LANactive Manager is a centralized software solution that provides an easy and comfortable way of configuration, management and supervision of all Nexans Ethernet switches. Note: LANactive Manager is optionally, all Nexans LANactive switches can also be managed locally. -
Page 30: Gigaswitch Product List
GIGASWITCH PRODUCT LIST Industrial FTTO switches GigaSwitch V5 TP(PSE+) SFP-2VI 54VDC IND Nexans article number: 88303960 GigaSwitch V5 TP(PSE+) SFP-2VI; 44 - 57V DC; WxHxD [mm]: 90 x 45 x 69 (35); Temp.range: -25°C -+65°C; Toolless/Click-in; User Ports: 4x 10/100/1000; Uplink: 1x 10/100/1000 TP (PSE+), 2x 100/1000 SFP;... -
Page 31: Accessories
Nexans Part No Description 88646010 Nexans SFP 100 Transceiver GI(LC)E; Fast Ethernet; multi mode; TX/RX: 1310/1310; 2 km; LC-duplex; DDM Support; temp.r: -40°C/+85°C; dual fibre; Budget: 12 dB 88646011 Nexans SFP 100 Transceiver SM(LC)E L10; Fast Ethernet; single mode; TX/RX: 1310/1310;... - Page 32 Tel.: +49 (0) 2166 27 2220 sales.ans@nexans.com single fibre; Budget: 30 dB 88645915 Nexans SFP 100 Transceiver SF3(SC)E L40; Fast Ethernet / Single fiber BiDi Modules; Singlemode; TX/RX: 1310/1550; 40 km; SC-simplex; DDM Support; temp.r: -40°C/+85°C; single fibre; Budget: 30 dB 88645916 Nexans SFP 100 Transceiver SF5(SC)E L40;...
- Page 33 Bonnenbroicher Str. 2-14 41238 Monchengladbach Germany Tel: +49 2166 27-2220 Fax: +49 2166 27-2499 Alsembergsesteenweg 2, b3 B-1501 Buizingen Belgium Tel: +32 (0)2 363 38 00 Fax: +32 (0)2 365 09 99...
