  • Page 1 Technical Documentation GigaSwitch 641 Desk SFP-I 48V ES3...
  • Page 2 Page 2 Telephone helpdesk: +49 (0) 2166 27 2220...
  • Page 3 Rear view GigaSwitch 641 desk ........
  • Page 4 General Application The new Nexans "GigaSwitch 641 Desk" is our next generation pure Gigabit Desktop switch system for FTTO applications. Easy Installation The very compact design of this switch allows easy integration on the desktop. Nexans is also providing the comfortable kits for wall mounting of switch and external power supply.
  • Page 5: Front View / Rear View

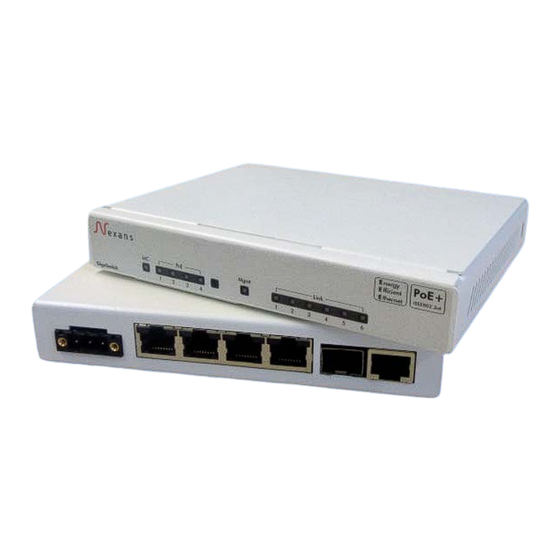

    General Front view / Rear view Kensington Lock Status LED Memory Card Status LEDs Power over Ethernet Status LEDs Management Status LEDs Link Activity Memory Card Interface 3 pin Terminal Block User Interfaces SFP Interface Slot TP Uplink Interface (bottom side) •...
  • Page 6: Safety Instructions

    General Safety instructions When this unit left the factory it was in perfect working order. To operate it without risk, and to ensure it remains in good wor- king condition, the following safety instructions must be observed. Proper use The unit may only be used under conditions and for purposes for which it has been designed. Please find further details in the sections Introduction and Technical Data.
  • Page 7: Preparation For Operation

    General Opening of the unit Please disconnect the unit from the mains supply and from all other power sources prior to opening the unit. Any subsequent servicing and repair on the open and live unit may only be performed by a qualified person. Spare parts Only original spare parts may be used.
  • Page 8 Start-Up Indicators LED Indicators Mgmt lights blue multicolor when switch is booting lights green when switch is up and has a valid IP address blinks green when switch is up, but has not yet received a valid IP address lights red when switch is up with fixed IP address lights blue multicolor...
  • Page 9 Start-Up Booting with Fixed IP Address This function will enable the following temporary IP settings: • IP-address 172.23.44.111 • Network mask 255.255.255.0 The switch can then be accessed via this temporary IP address in order to configure the required switch parameters (e.
  • Page 10: Setting The Transmission Parameters

    Basics Setting the transmission parameters Many problems occurring in data networks can be avoided. Based on many years of practical experience we can recomm- mend the following settings for the switch systems: Standard settings (equivalent to the default setting): All TP ports: All 100 Mbps FO ports: 100 FDX All 1000 Mbps FO ports:...
  • Page 11 Power over Ethernet - PoE (PSE) The Nexans GigaSwitch Series is offering PoE (PSE) functionalities. The systems are therefore in a position to supply devices according to IEEE802.3at - Endpoint PSE mode "Mode A". For external power supply (PSE) of devices an operation volta- ge of more than 46 VDC for IEEE802.3af and 50 VDC for IEEE802.3at is needed.
  • Page 12: Technical Data

    Technical Data Technical Data General and mechanical specifications Model Pre-assembled module for installation in twin boxes Mounting dimensions [W x H x D] 148 mm x 24 mm x 118 mm Ambient temperature Operation: 0 ... 40 °C, Storage: -20 ... 85 °C Relative humidity 20 - 90 % (non-condensing) Weight (without Options)
  • Page 13 Technical Data Dimensions Telephone helpdesk: +49 (0) 2166 27 2220 Page 13...
  • Page 14 • Avoid corruption of configuration changes with dual configuration management • Firmware and Configuration Management via Nexans Switch Manager V3 NexManV3 authentication via RADIUS server • Download / upload of the configuration and archiving in a database on the PC •...
  • Page 15: Frequently Asked Questions (Faqs)

    How can the initial configuration be performed? In order to ensure simple configuration and management of these devices, Nexans has designed an easy to use tool spe- cifically tailored to the requirements of the user. The Nexans Switch Manager NexMan V3 ensures the automated distribu- tion of master configurations and software updates to any number of industrial switches.
  • Page 16 RADIUS, security in enterprise networks is considerably improved. Maximum security is achieved by access control directly at the user port of the Nexans switch system. Thus the identity of the client is verified directly at the connection point and not only at the bundled port of the central switch.
  • Page 17: Order Numbers

    Order Numbers: GigaSwitch 641 Desk SFP-I ES3 ......88303752 Memory Card für Office Switches mit MAC Adresse ... . . 88300691 Mounting Kit GigaSwitch Desk RAL9010 .
  • Page 18 Glossary ampere Auto-Negotiation Address Resolution Protocol Communauté Européenne Cisco Discovery Protocol DHCP Dynamic Host Configuration Protocol DDMI Digital Diagnostic Monitoring Interface European Norm Full Duplex gram Graded Index Half Duplex IGMP Internet Group Management Protocol International Electrotechnical Commission IEEE Institute of Electrical and Electronics Engineers International Protection (also Ingress Protection) Information Technology LLDP...
  • Page 19 Glossary second Secure Copy Protocol Small Form-factor Pluggable Singemode SNMP Simple Network Management Protocol SNTP Simple Network Time Protocol Secure Shell Transmission Control Protocol Twisted Pair volt volt direct current VLAN Virtual Local Area Network watt Telephone helpdesk: +49 (0) 2166 27 2220 Page 19...
  • Page 20 Nexans provide the reliability and the security you expect from your network. Nexans Deutschland GmbH • Advanced Networking Solutions Bonnenbroicher Str. 2-14 • 41238 Moenchengladbach • Germany Tel +49 (0) 2166 27-2220 • Fax +49 (0) 2166 27-2499 • E-Mail: sales.ans@nexans.com • www.nexans.de/ans...
