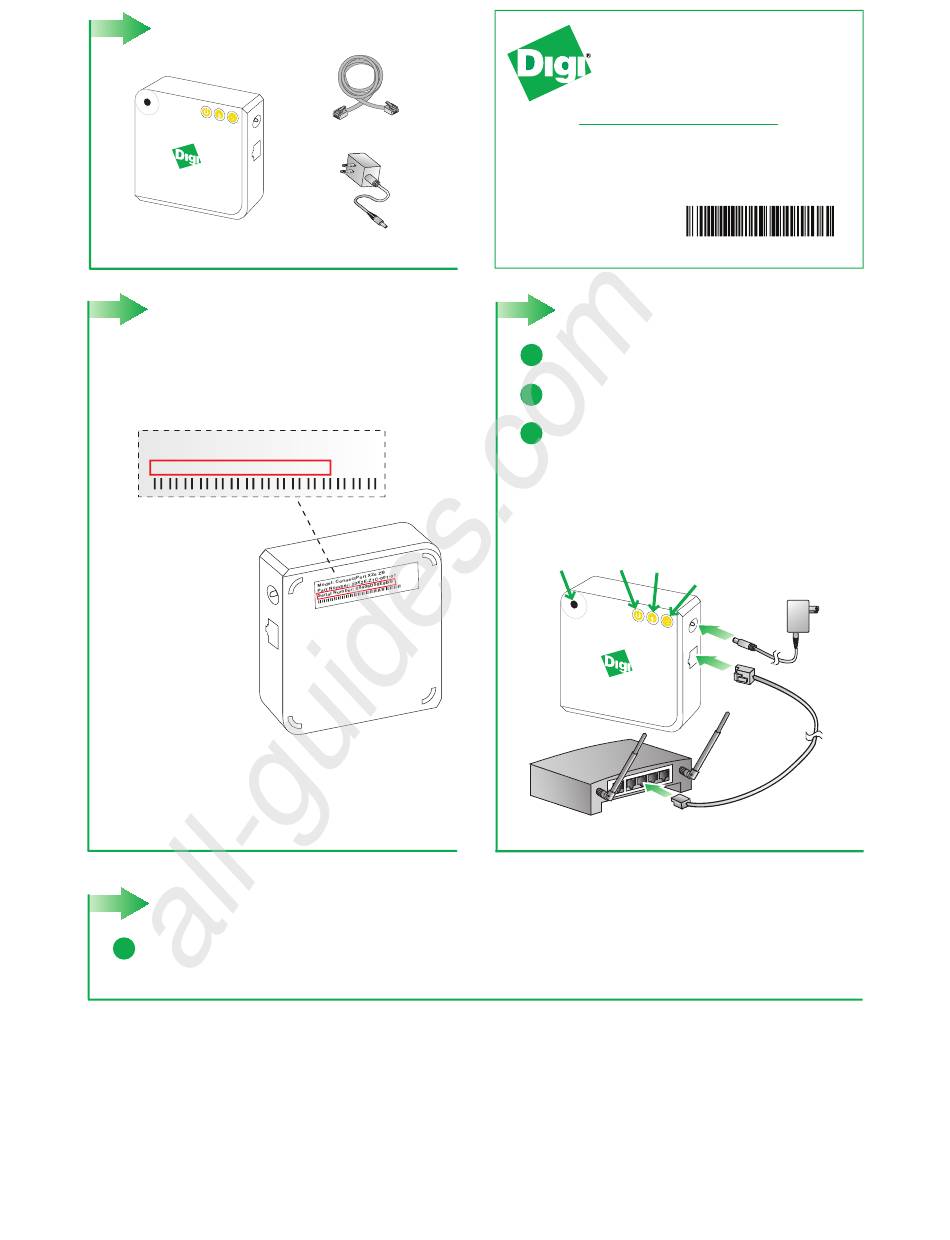

Digi ConnectPort X2e ZB Quick Start Manual

1 Verify Contents
ConnectPort X2e ZB
2 Write Down the Serial Number
Write down the following located on the back of the
ConnectPort X2e ZB :
________________________________
Serial Number:
Model: ConnectPort X2e ZB
Part Number: 50X2E-Z1C-001-01
Serial Number: 00409D 50E9BB
NOTE: The Serial Number is
also the Ethernet MAC
address.
4 Online Installation
a
Browse to www.digi.com/X2EZB and follow the instructions to download the Digi
and the ConnectPort X2e ZB User's Guide.
All manuals and user guides at all-guides.com
Ethernet Cable
Power Supply
Quick Start Guide
ConnectPort X2e ZB
Ethernet
(1P): 90001297-88 B
3 Connect Hardware
a
Connect the Ethernet cable.
b
Connect the power supply.
Startup Sequence - After plugging in the device, the
c
Power LED will turn solid green, and the Network LED
will gradually turn solid green if it can connect to iDigi.
NOTE: This product requires a DHCP server to
assign its IP address. If you do not have a DHCP
server, see the ConnectPort X2e ZB User's Guide.
c
Button Power
XBee
Network
Internet router
ESP™ for Python development environment
®
b
a
