Orion AllSky 52187 Instruction Manual

Orion
®

Required Tools

• AllSky Tamper Proof Allen Key
• Small Allen Key
• Medium size Philips Head Screwdriver
• Small size Philips Head Screwdriver
• Electrical Tape
Warning: Disconnect all external cables (Video, Power
and Serial cable) from AllSky unit before proceeding
Step 1 – Removal of Dome Bubble
To remove Dome Bubble use the AllSky Tamper Proof Allen
key to unscrew the four vandal-proof screws on the top of the
StarShoot AllSky Camera (SASC). Be careful not to hit the
acrylic dome with the allen key, screws or other hard objects.
Also be careful not to lose the non standard Tamper-proof
allen key.
Carefully lift the dome cover directly upwards from the base
and place in a safe location. Be careful not to touch the lens
to avoid having to clean it. (Cleaning supplies sold separately
by Orion.)

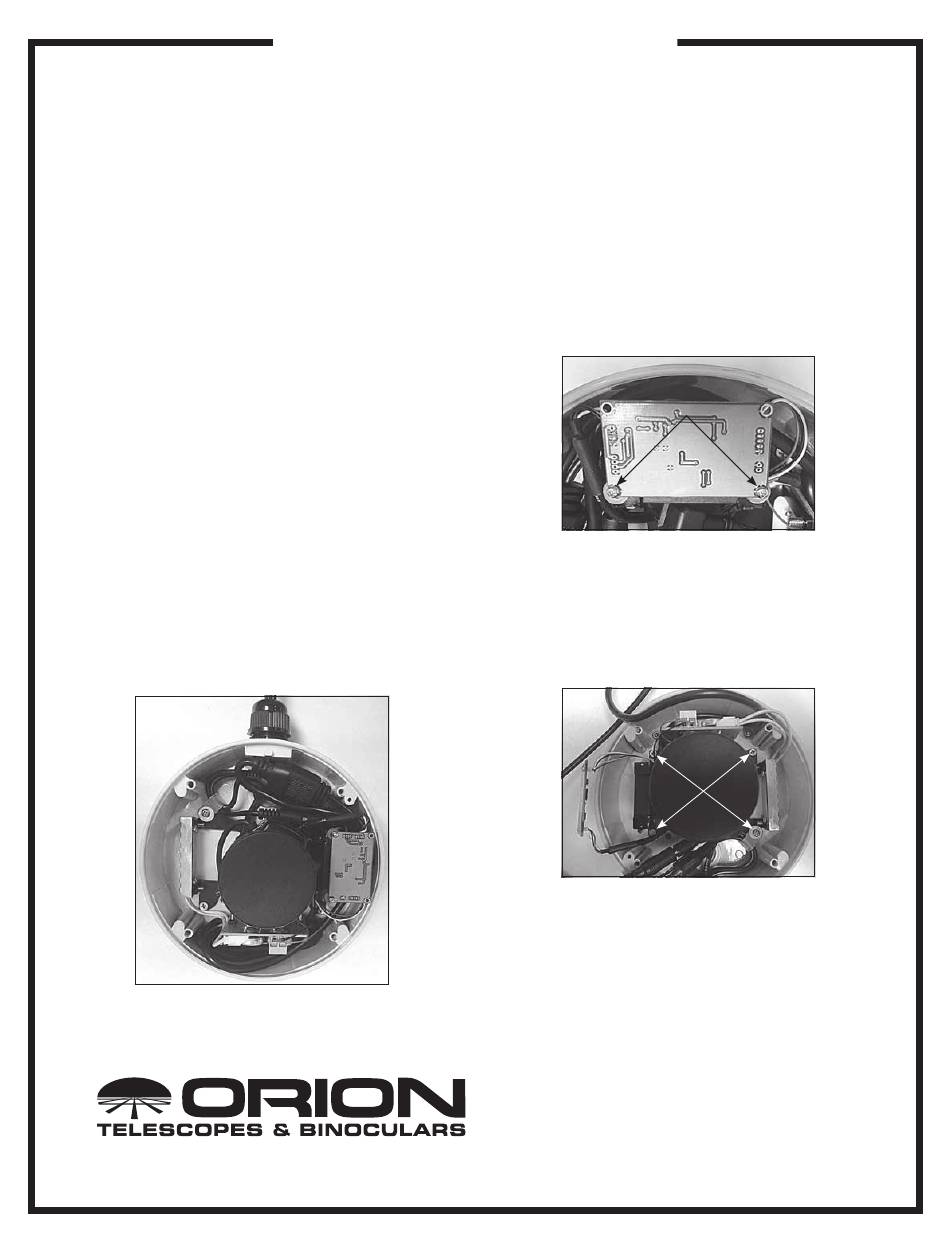

Figure 1. AllSky unit with dome bubble removed.
Providing Exceptional Consumer Optical Products Since 1975
inSTRuCTiOn MAnuAL
AllSky
™
#52187 AllSky, #52191 AllSky II
Lens Centering
Step 2 – Removal of the RS-232 Circuit Board
If model is AllSky Version I (no computer control) proceed to
step 3. If model is AllSky Version II (with computer control)
remove the two screws and washers holding the small circuit
board in place (Figure 2).
Figure 2. RS-232 Circuit Board.
Step 3 – Removal of the Camera Bracket
from Base
Using a Philips head screwdriver unscrew the four screws that
attach the camera bracket to the base unit in order to gain
access to the camera (Figure 3).
Figure 3. Camera bracket screws.
OrionTelescopes.com
Customer Support (800) 676-1343
E-mail: support@telescope.com
Corporate Offices (831) 763-7000
89 Hangar Way, Watsonville, CA 95076
IN 483 Rev. A 01/13
