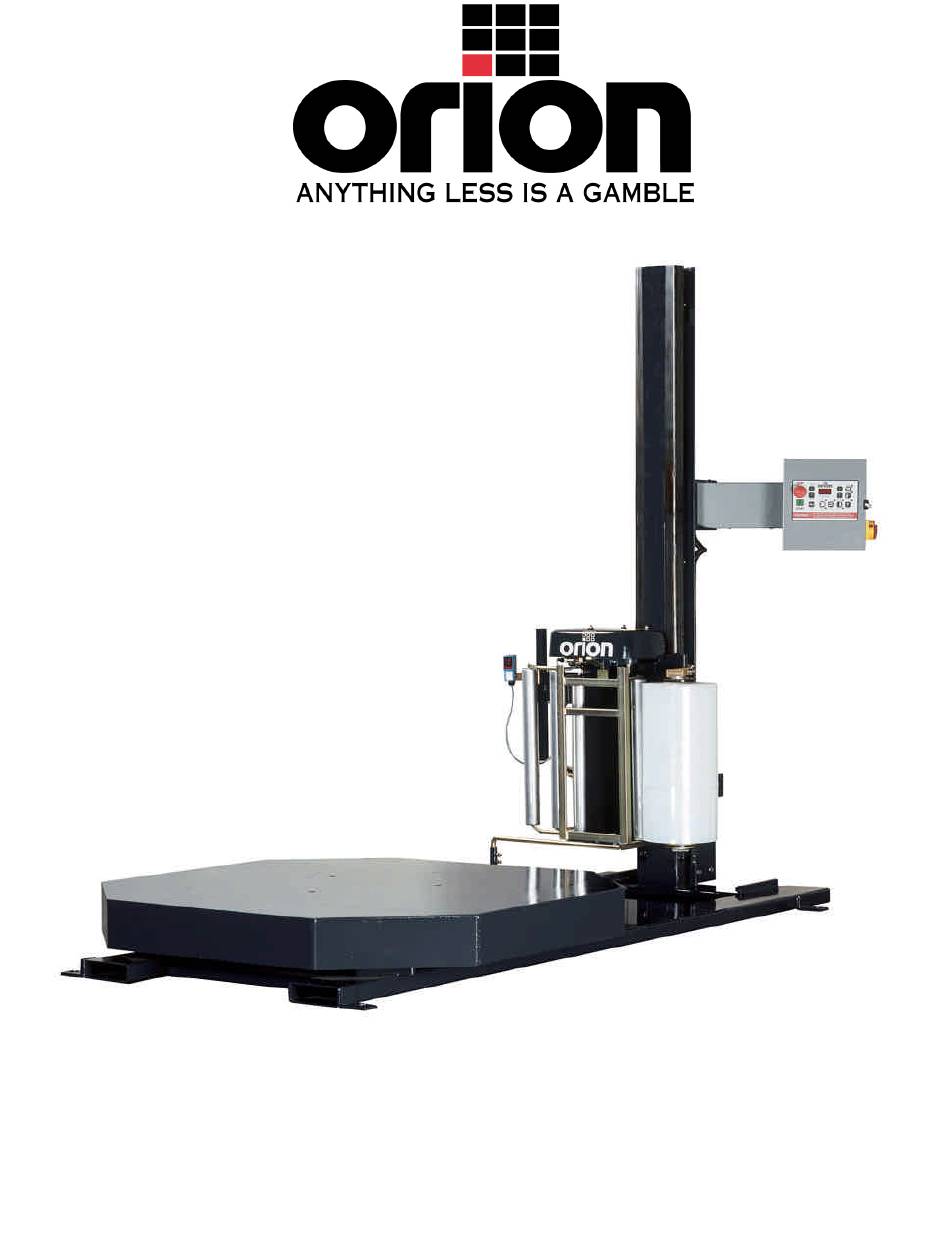

- Page 1 MODEL H77-VP SERIAL # 2006-8899999 2270 Industrial boul. , Montreal (Laval), Canada, H7S 1P9 Tel.: (450) 667-9769, Fax: (450) 667-6320...
- Page 2 INSTRUCTION MANUAL FOR ALL INQUIRIES PLEASE CONTACT OUR LOCAL DISTRIBUTOR FOR NORTH AMERICA ONLY 1-800-333-6556...
- Page 3 3)Subassembly ( see PART LIST ) SAFETY: ORION'S stretch wrappers should be operated with caution and common sense as any other industrial equipment. To prevent injury and/or electrical shocks, careful operation of the machine and awareness of its many automatic functions is required.

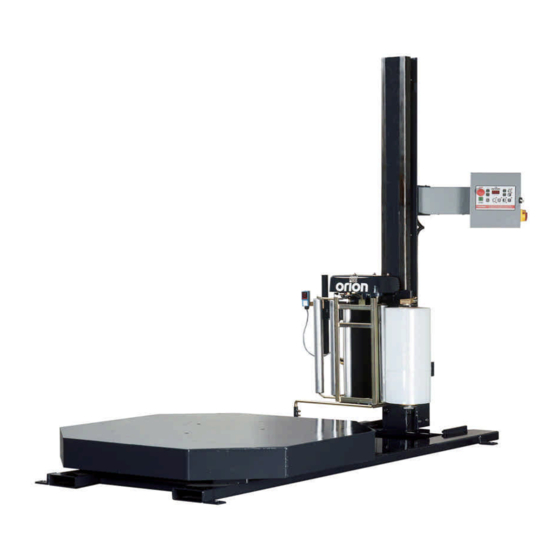

- Page 4 ORION PACKAGING SYSTEMS INC. SEMI-AUTOMATIC SPECIFICATIONS ORION EPIC® SERIES MODEL H-77-VP Spiral Semi-Automatic Medium Duty Low Profile Maximum Load Size 55”W x 55”L x 82”H Weight Capacity 4,000 Ibs. Dynamic, 20,000 Ibs. Static Utilities 115 / 1 / 60 15 Amp Service Turntable 48”x48”...
- Page 5 2. Perform a visual inspection of the electrical and mechanical parts for loosened joints and / or broken connections. Any suspected shipping damage must be reported immediately to the freight carrier. Any transport damage cannot be claimed to Orion Packaging Inc. Items that are vulnerable to damage and must be inspected are as follows:...
-
Page 6: Machine Operation
MACHINE OPERATION Before Starting Machine Operation Verify that the machine is properly connected to the electrical source. The electrical requirements depend on the machine type and features. For this information, please see the machine electrical diagram provided with the machine operation manual. The control panel layout for the machine is shown on the drawing. -
Page 9: Control Panel
CONTROL PANEL WRAP PATTERN SELECTOR SWITCH “SPIRAL” UP / UP/DOWN The Pattern Selector Switch “ SPIRAL” positions: UP - When the UP position has been selected machine will first wrap bottom of load applying selected number of bottom wraps. The film carriage will then move to the top of load and stop. - Page 10 CARRIAGE SAFETY SWITCH In case of carriage safety switch limits or some obstacle preventing carriage to move down when descending - carriage safety device will be engage causing safety limit switch to change position and in effect, cause safety pause. TO RESET - select carriage raise.
- Page 11 TOP & BOTTOM WRAP COUNTS CHANGE The Top & Bottom Wrap Selector Switches have three (3) ranges of wrap counts and operate independently of each other. Range #l Wrap values of 1 - 2 - 3 Range #2 Wrap values of 4 - 5 - 6 Range #3 Wrap values of 7 - 8 –...
-
Page 13: Machine Maintenance
MACHINE MAINTENANCE All general information about machine maintenance is based on normal machine working conditions: indoor, moderate dust and low moisture environment, and maximum rotation of 32 RPM of turntable/rotary arm. They should be regarded as guidelines, reviewed and corrected according to requirements of actual use and conditions. MOTOR MAINTENANCE An occasional inspection of the brushes should be made in order to establish a wear rate. -
Page 14: Chain Maintenance
Externally: by lubricating and wiping the chain drive with oily cloth. The frequency of lubrication depends on entirely upon the usage of the machine and environment in which the machine is placed (dust, moisture etc.). Machines working under extremely dirty conditions should be lubricated every 400 operating hours but at minimum, every 2 months. - Page 15 SEMI-AUTOMATIC STANDARD ASSEMBLY PART LIST Note : * Quantity listed in order of part number ** The names given to the parts are generic...
- Page 22 APPENDIX...
-
Page 23: Installation
The 850M and 850 DM Motor Control Boards are DC/SCR drives that are used in 66 & 55 series Orion stretch wrapping equipment. The following calibration instructions apply to all 66 & 55 series turntable and rotary tower type machinery, but it will be important to note specific reference to your particular Orion model for best calibration results. -
Page 24: Troubleshooting And Repair
In most cases, repair will require parts replacement. If user intends to, and is equipped to perform repairs, spare parts are available from Orion Parts & Service. Damage is usually visually evident on the 850M board. Replacing the obviously damaged board frequently restores if the operation.
