Summary of Contents for Orion SPECTRA MAX

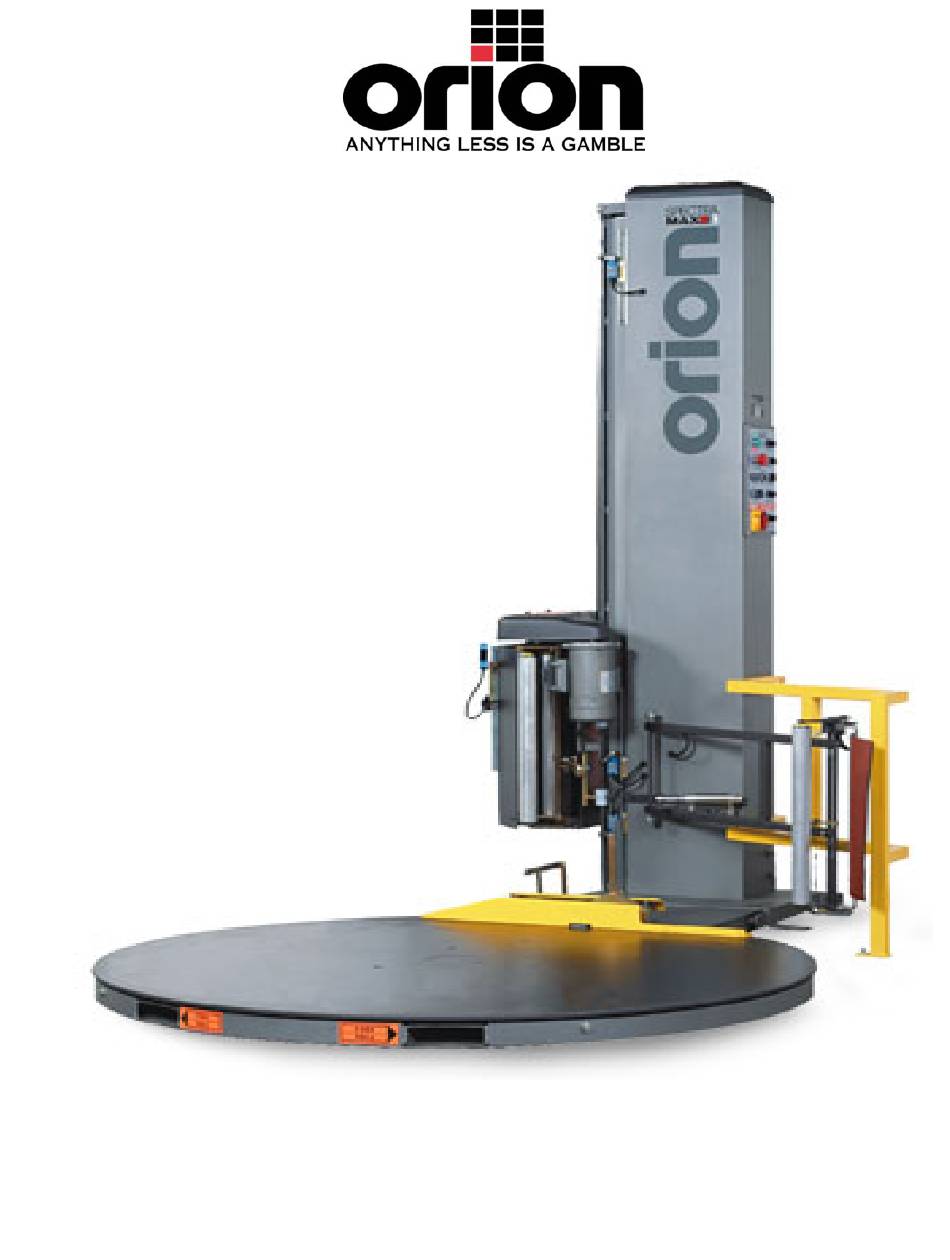

- Page 1 MODEL SPECTRA MAX v.20 SERIAL # 2006-8899999 2270 Industrial boul. , Montreal (Laval), Canada, H7S 1P9 Tel.: (450) 667-9769, Fax: (450) 667-6320...
- Page 2 INSTRUCTION MANUAL FOR ALL INQUIRIES PLEASE CONTACT OUR LOCAL DISTRIBUTOR FOR NORTH AMERICA ONLY 1-800-333-6556...
- Page 3 Thank you for choosing ORION stretch-wrapping equipment. It is a wise choice, which will benefit your company now and in the future. ORION uses a unique combination of functional, rugged steel structure and sophisticated control systems to offer equipment high in durability and low in maintenance requirements.
- Page 4 Protective cover over powered prestretch rollers All-enclosed chains & electronics Protective barrier for film tail treatment device No operator involvement required for film attachment to the load and cut off • ORION PACKAGING RESERVES RIGHTS TO CHANGE THIS SPECIFICATION AT ANY TIME WITHOUT NOTICE...
- Page 5 Any transport damage cannot be claimed to Orion Packaging Inc. Items * The tower deviation from vertical must not exceed 1/4” that are vulnerable to damage and must be inspected are on the distance of 10 feet (angle: 0 degrees 6’).
- Page 7 Note: For VFD adjustment, please contact Orion Packaging service department.
-
Page 9: Machine Operation
MACHINE OPERATION POWER SWITCH Located on the panel door or side of the panel box, the lockable power switch has two settings: ON - connects a power source to the machine OFF - disconnects the power source. START AND EMERGENCY STOP SWITCHES The START switch is used to start the cycle once the load is on the turntable. - Page 10 4- WRAPPING MODE “SPIRAL” UP OR UP- 6- TURNTABLE JOG DOWN The turntable jog can operate only when machine is not in Press button #4 on the keypad to switch from UP to UP & cycle. The turntable jog will rotate at a low speed when the DOWN, or vice-versa.
-
Page 11: Loading The Film
LOADING THE FILM ADDITIONNAL SPACER WASHER The film roll can be loaded on the carriage mandrel from (IF NEEDED ONLY) either end of the roll. When using tacky film, please verify that the inward tacky surface of the film is inward on the The roll of film may be slightly different from time to time, load. - Page 12 PROXIMITY SENSOR ADJUSTMENT Occasionally the Feed Back Proximity Sensor may need some adjustment. The position of the feed back proximity sensor against the cam is shown on drawing # 419139 and on Figure 6. Adjustment instructions: Power down machine. Remove the carriage cover. Unbolt the two nuts holding the proximity switch - item # 1.
-
Page 13: Machine Maintenance
MACHINE MAINTENANCE All general information about machine maintenance is based on Externally: by lubricating and wiping the chain drive with oily cloth. normal machine working conditions: indoor, moderate dust and low The frequency of lubrication depends on entirely upon the usage of moisture environment, and maximum rotation of 32 RPM of the machine and environment in which the machine is placed (dust, turntable/rotary arm. - Page 14 SEMI-AUTOMATIC STANDARD ASSEMBLY PART LIST Note : * Quantity listed in order of part number ** The names given to the parts are generic...
- Page 35 APPENDIX...
- Page 36 Air Compressor Unit (OPTINAL)
