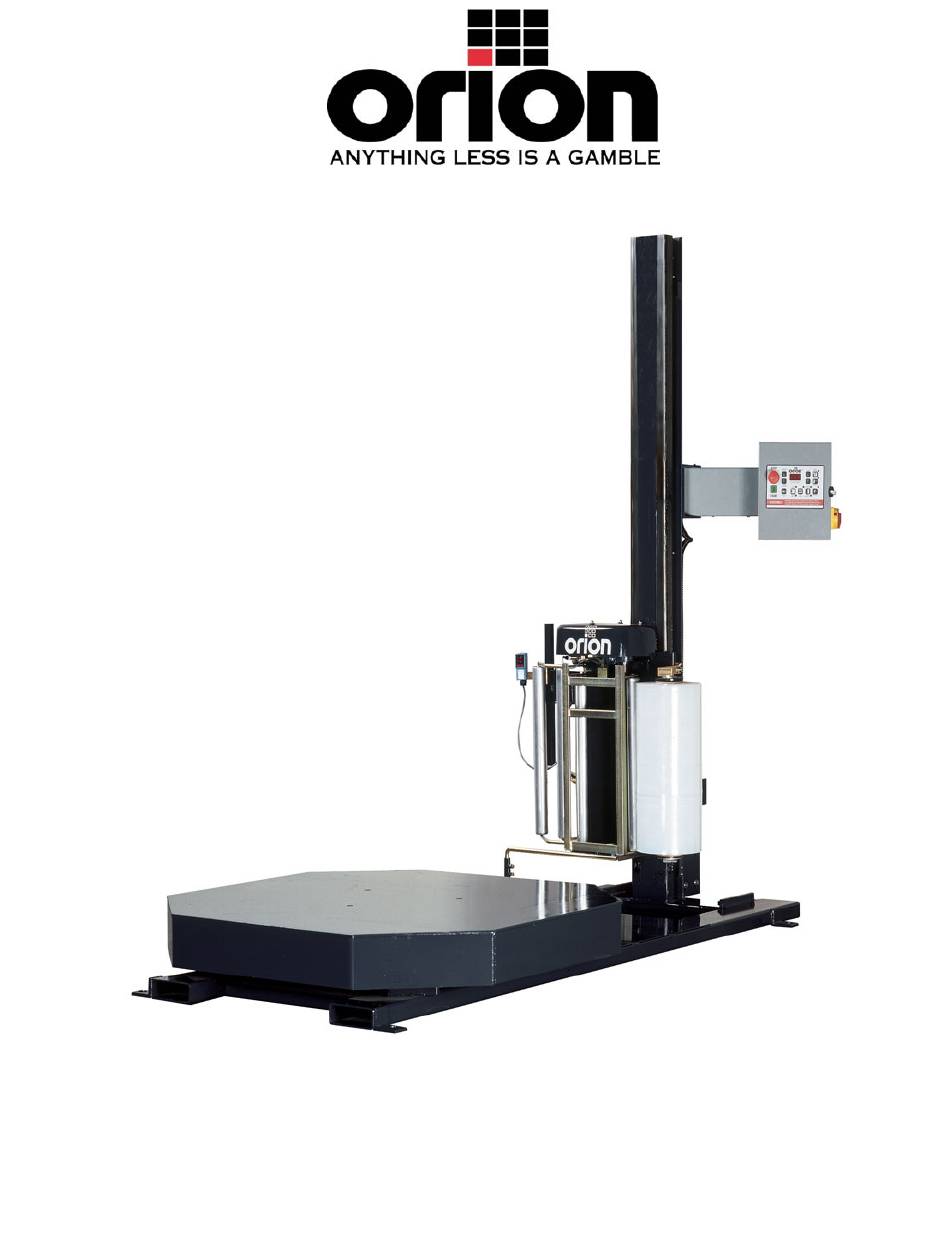

- Page 1 MODEL H77E-20 SERIAL # 2007-8899999 2270 Industrial boul. , Montreal (Laval), Canada, H7S 1P9 Tel.: (450) 667-9769, Fax: (450) 667-6320...
- Page 2 INSTRUCTION MANUAL FOR ALL INQUIRIES PLEASE CONTACT OUR LOCAL DISTRIBUTOR FOR NORTH AMERICA ONLY 1-800-333-6556...
- Page 3 Thank you for choosing ORION stretch-wrapping equipment. It is a wise choice, which will benefit your company now and in the future. ORION uses a unique combination of functional, rugged steel structure and sophisticated control systems to offer equipment high in durability and low in maintenance requirements.

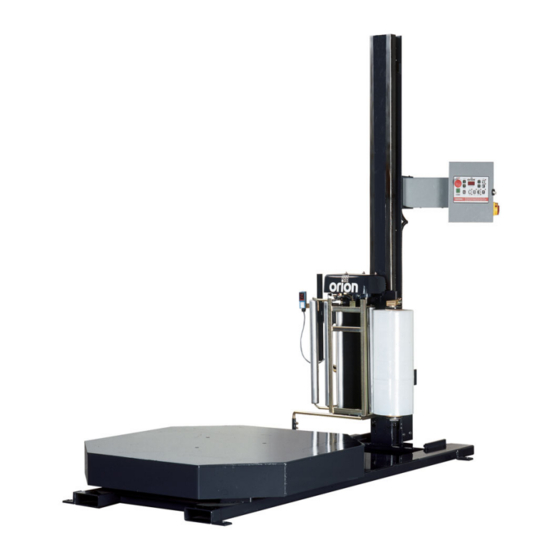

- Page 4 ORION PACKAGING SYSTEMS INC. SEMI-AUTOMATIC SPECIFICATIONS ORION EPIC® SERIES MODEL H-77E Spiral Semi-Automatic Medium Duty Low Profile Maximum Load Size 55”W x 55”L x 82”H Weight Capacity 4,000 Ibs. Dynamic, 20,000 Ibs. Static Utilities 115 / 1 / 60 ; 15 Amp Service Turntable 48”x48”...
- Page 5 Any suspected shipping damage must be reported immediately to the freight carrier. Any transport damage cannot be claimed to Orion Packaging Inc. In the case of the free standing panel (console) place it adjacent to the system and anchor firmly to the floor.
- Page 7 Note: For VFD adjustment, please contact Orion Packaging service department.
-
Page 9: Machine Operation
MACHINE OPERATION POWER SWITCH Located on the panel door or side of the panel box, the lockable power switch has two settings: ON - connects a power source to the machine OFF - disconnects the power source. START AND EMERGENCY STOP SWITCHES The START switch is used to start the cycle once the load is on the turntable. - Page 10 5- FILM TENSION CARRIAGE SPEED (Film Overlap) Film tension may be adjusted using the film tension control The carriage speed knob can be used to control the knob (see Figure 4). The range of tension is from 0 to 10 (0 amount of film overlap apply during the wrap.
-
Page 11: Loading The Film
LOADING THE FILM ADDITIONNAL SPACER WASHER The film roll can be loaded on the carriage mandrel from (IF NEEDED ONLY) either end of the roll. When using tacky film, please verify The roll of film may be slightly different from time to time, that the tacky surface of the film is inward on the load. - Page 12 PROXIMITY SENSOR ADJUSTMENT Occasionally the Feed Back Proximity Sensor may need some adjustment. The position of the feed back proximity sensor against the cam is shown on drawing # 419139 and on Figure 6. Adjustment instructions: Power down machine. Remove the carriage cover. Unbolt the two nuts holding the proximity switch - item # 1.
-
Page 13: Machine Maintenance
MACHINE MAINTENANCE All general information about machine maintenance is based Externally: by lubricating and wiping the chain drive with oily on normal machine working conditions: indoor, moderate dust cloth. The frequency of lubrication depends on entirely upon and low moisture environment, and maximum rotation of 32 the usage of the machine and environment in which the RPM of turntable/rotary arm. - Page 14 SEMI-AUTOMATIC STANDARD ASSEMBLY PART LIST Note : * Quantity listed in order of part number ** The names given to the parts are generic...
