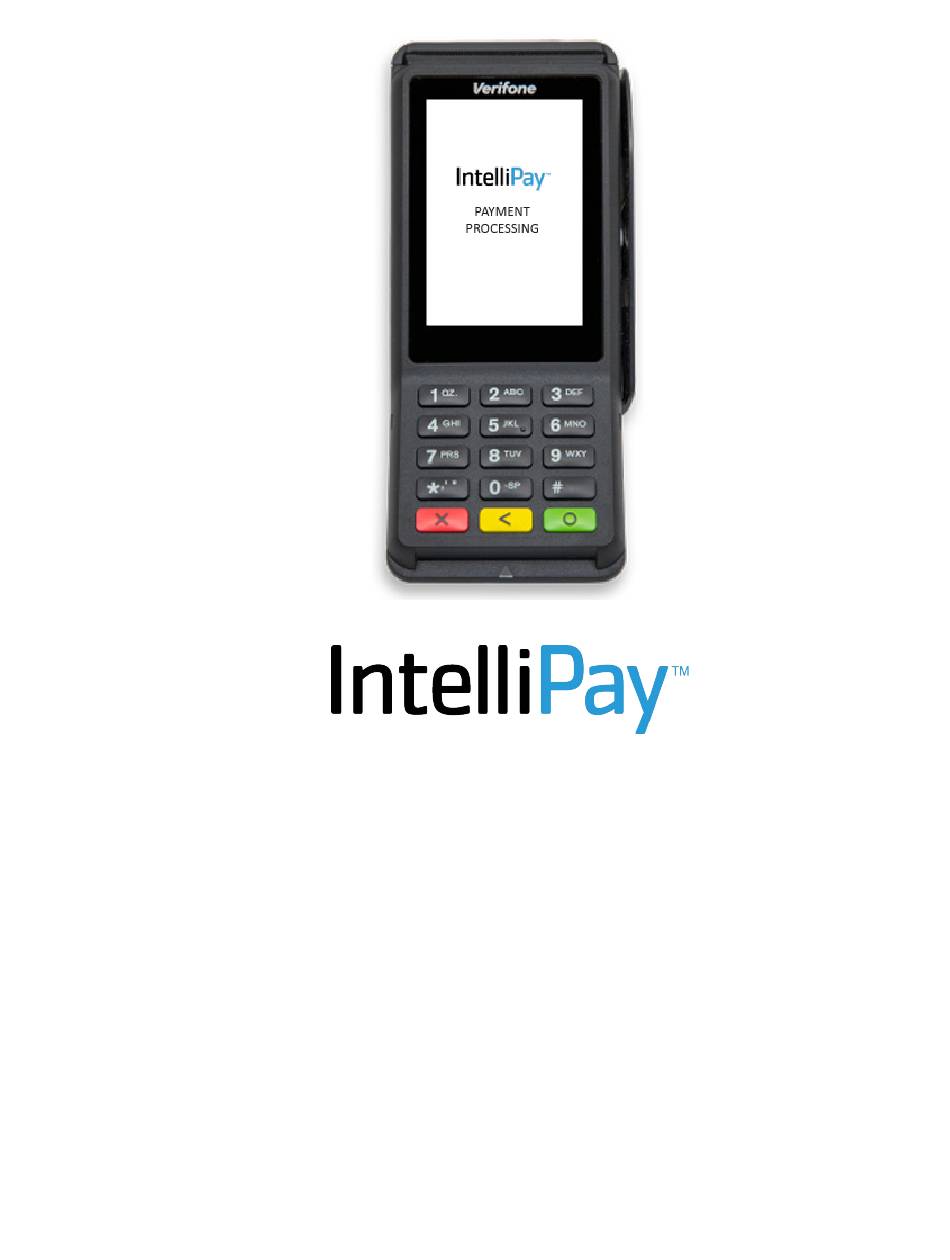

Page 1 V400C Setup...
Page 2 IntelliPay V400 C Set Up Hardware List 1X USB to RJ50 Cable 1X Power adapter 1X V400 Terminal Connecting the V400C to the Computer 1. Locate the USB to RJ50 cable and plug it into the V400 as shown in figure 1 below. Figure 1 - USB to RJ50 cabLe connected to the V400c.
Page 3 IntelliPay V400 C Set Up 2. Plug in the Ethernet cable as shown in Figure 2 below.. *Note that the V400 requires an Ethernet Connection in order to communicate the transactions to the gateway. The USB cable is to send the commands in POS mode to the terminal and receive non-PCI data back to the POS.
Page 4 IntelliPay V400 C Set Up 3. Connect the power cable to the terminal and first plug the terminal into the PC before powering on the device itself. Figure 3 - Power cable connection...
Page 5 IntelliPay V400 C Set Up 4. If your Terminal does not look like this when powering It up, you need to contact IntelliPay support Figure 4 - acceptance screen...
Page 6 IntelliPay V400 C Set Up Installing the V400 SAAS Service 1. Download the Installer file from the CPTeller site. 2. Hit Next...
Page 7 IntelliPay V400 C Set Up 3. Hit Next...
Page 8 IntelliPay V400 C Set Up 4. Hit Next and the installer will install the service...
Page 9 IntelliPay V400 C Set Up 5. You might be prompted to allow the application to install by windows and also by your antivirus. When you get to the last screen select Close.
Page 10 IntelliPay V400 C Set Up 6. Another box will be opened up like the one below, You will need to put your Merchant Key and API key in before continuing.
Page 11 IntelliPay V400 C Set Up 7. Hit Next and it should connect to the SAAS service and open up this screen.
Page 12 IntelliPay V400 C Set Up 8. You need to select the COM port that the V400 is connected to.
Page 13 IntelliPay V400 C Set Up 9. You can elect to name the device and save it if you would like The terminal is now ready to receive a transaction from the POS.
Page 14 IntelliPay V400 C Set Up Support Notes Logging o Log To File Will be located in c:\IP\Log.txt ▪ o Regular Logging Sends directly to the Event Viewer ▪ support@intellipay.com 855-872-6632...
