Summary of Contents for Toshiba B-FP3D-GH52-QM-R

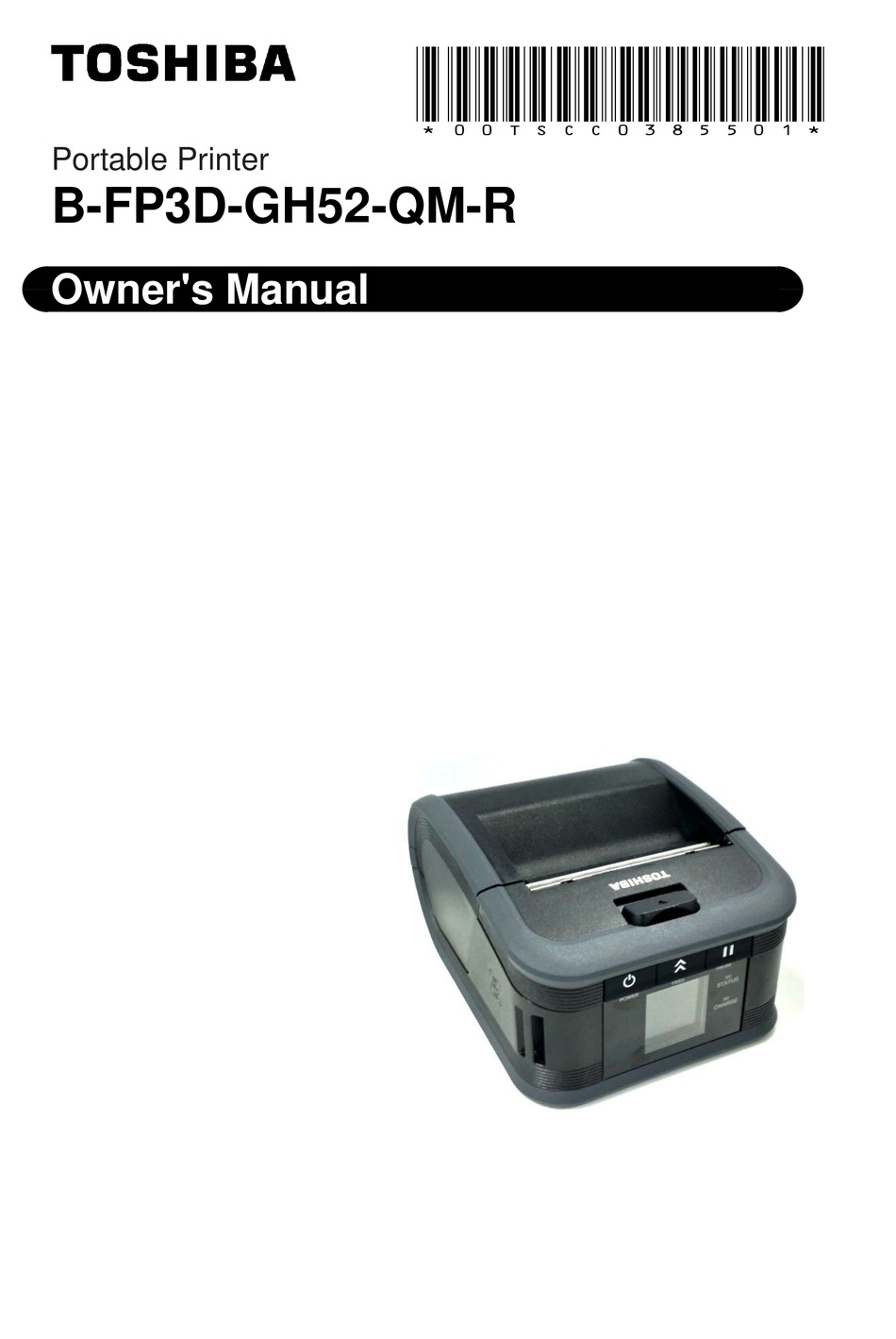

- Page 1 ! 0 0 T S C C 0 3 8 5 5 0 1 ! Portable Printer B-FP3D-GH52-QM-R Owner's Manual...
- Page 2 CE Compliance (for EU only) Hereby, Toshiba TEC Germany Imaging Systems GmbH declares that the radio equipment type B-FP3D is in compliance with the Radio Equipment Directive 2014/53/EU and the RoHS Directives 2011/65/EU & (EU) 2015/863. The full text of the EU declaration of conformity is available at the following internet address: https://www.toshibatec.eu/support/environment/...
- Page 3 CAUTION! 1. Only use TOSHIBA TEC battery packs designed and manufactured for use with the specific printer model. The battery used in this device may present a risk of fire or chemical burn if mistreated. Do no disassemble, heat above +50degC, or incinerate.
- Page 4 For Europe For Bluetooth and Wireless LAN: Hereby, TOSHIBA TEC CORPORATION declares that the BT800 and RS9113 are in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. This equipment uses a radio frequency band that has not been harmonized throughout all EU and EFTA countries, and can be used EU and EFTA countries.
- Page 5 (8) Be sure to use a shielded interface cable. CAUTION! 1. This manual may not be copied in whole or in part without the prior written permission of TOSHIBA TEC. 2. The contents of this manual may be changed without notification.
- Page 6 Use the specified battery only. Failure to do this may cause fire or electric shock. • Danger of explosion if the battery is incorrectly replaced. Replace the battery only with a TOSHIBA TEC Corporation, Battery Pack Model B-FP803-BTH-QM-R 7.2V 2500mAh Li-ion. Discard used batteries according to the manufacturer's instruction.
-
Page 7: Part Names
Part Names Print Head Media Sensor Platen Top Cover Peel-off Unit Tear bar Top Cover Open Button Battery Cover DCIN Connector Operation Panel Battery Lever Strap Slot USB Port Belt Clip Print Head Cleaner M-3x8 Screws BD Address Label... -
Page 8: Operation Panel Functions
Operation Panel Functions (11) (12) (10) POWER FEED PAUSE STATUS CHARGE NOTE: Do not touch the Operation panel with a sharp object, as the surface of the Operation panel is easily damaged. Name/Icon Function/Usage Icons indicating the printer statuses, such as the radio intensity, Liquid Crystal Display battery level, etc. - Page 9 Displayed when an error occurs on the printer. Error Battery level Indicates the battery level in 5 levels. Lights or blinks in green, red, or orange to indicate the printer status. Lights up in green: Normal state Lights up in orange: Low-battery warning state (Operable) ...
- Page 10 Loading a battery pack WARNING! 1. If the battery pack leaks liquid or gives out smoke or bad smell, immediately stop using it and keep it away from fire. Failure to do this may cause an explosion or a fire. 2.
-
Page 11: Removing A Battery Pack
Removing a battery pack Push the Battery Lever down in the direction of the arrow, and remove the Battery Pack from the printer by pulling on the tab. Battery Lever Open Battery Pack Charging the Battery Pack with an Optional Adapter When charging the battery pack in the printer using an optional AC Adapter, cigarette lighter adapter, or DC adapter, insert the plug of the adapter into DCIN... -
Page 12: Loading The Media
Paper Lever Guide NOTE: Please use TOSHIBA TEC approved media only. Toshiba TEC is not responsible for any print result caused by use of other media When you order media, please contact the nearest TOSHIBA TEC representative. NOTE: Use caution when working with the Tear bar. - Page 13 Before using a peel-off unit How to put away the Peel-off Roller When issuing labels in the peel-off mode, pull out the peel-off roller before loading a label roll. 1. Gently press the Peel-off Roller Unit down, and 1. Open the Top cover, and push the lock lever in push it into the printer in the direction indicated by the direction of the arrow.
- Page 14 How to attach the accessories CAUTION! 1. Care should be taken not to drop the printer when securing it to your waist or slinging it over your shoulder. 2. For fixing the printer to your belt, the belt width should be 40 mm or less. Use of the other belts may cause the printer to fall off ...
-
Page 15: Data Transmission
The radio connectivity is affected by the operating Access Point environment. Especially, metal obstacles, metal powder, or locations enclosed by metal walls may prevent proper communication. For the installation location of access points, please Handy Terminal consult the nearest TOSHIBA TEC representative. [Wireless LAN]... -
Page 16: Daily Maintenance
Daily maintenance To help retain the high quality and performance of your printer, it should be cleaned regularly cleaned. CAUTION! DO NOT USE a sharp object to clean the print head or various rollers, as this may cause a print failure or breakdown of the printer. - Page 17 Media Sensor Window and Media Path Media Sensor Window Remove dust or dirt from the Media Sensor Window with a commercially available soft, dry brush. Wipe clean the Media Path with a soft dry cloth. When linerless labels are used, wipe off dirt of residual glues from the Media Guides after the use of one or two media rolls.
-
Page 18: Troubleshooting
If you cannot solve a problem with the following solutions, do not attempt to repair it by yourself. Turn off the printer, remove the battery pack, then contact a TOSHIBA TEC service representative for assistance. If an error message is displayed. - Page 19 HIGH VOLT. ERROR The battery voltage is abnormal. If the problem recurs, please turn off the power and contact TOSHIBA TEC service representative. It could be the end of battery life. An error was detected while charging...
- Page 20 The media used has deteriorated past data but does not print. Load a new media roll. its use date. The media is not a TOSHIBA TEC Use TOSHIBA TEC approved media. approved one The STATUS lamp is lit or blinking.
-
Page 21: Printer Specification
Printer Specification Model B-FP3D-GH52-QM-R Media types Label / Tag / Receipt Print method Direct Thermal Resolution 203dpi ( 8dots/mm ) Max 6 inch/s (152 mm/s) Print speed (It depends on the operating environment, print conditions, battery condition, etc.) Effective print width 72mm (2.9") -
Page 22: Media Specification
Media Specification <Labels> Print surface Feed direction Roll method: Labels facing outside <Tag> Black Mark (Reverse Side） Print surface Roll method: Receipts facing outside Feed direction... - Page 23 Media type Label Receipt With black Without Mode Batch Strip Item marks black marks – Min. 10.0 13.0 10.0 A Label pitch – Max. 999.9 67.0 999.9 – Min. 10.0 B Label length – Max. 997.0 60.0 997.0 – Min. 26.0 C Backing paper width –...
-
Page 24: Care/Handling Of The Media
CARE/HANDLING OF THE MEDIA CAUTION! Be sure to read carefully and understand the Supply Manual. Use only media that meets specified requirements. Use of non-specified media may shorten the head life and result in problems with bar code readability or print quality. All media should be handled with care to avoid any damage to the media or printer.
