R&S
®

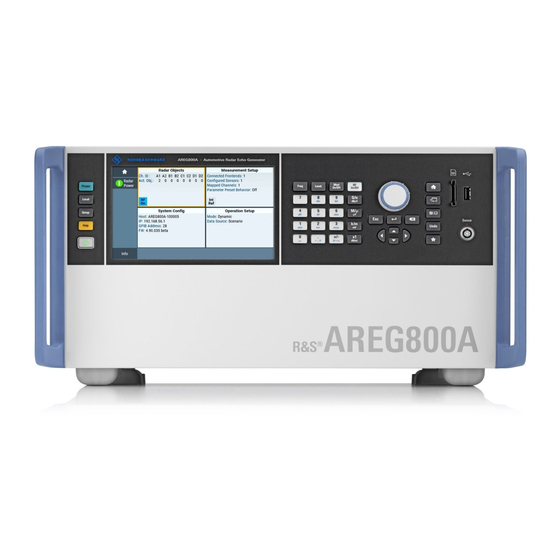

AREG800A
Release Notes 5.00.057.63
Firmware Version 5.00.057.63
© 2022 Rohde & Schwarz GmbH & Co. KG
Muehldorfstr. 15, 81671 Munich, Germany
Phone: +49 89 41 29 - 0
E-mail:
info@rohde-schwarz.com
Internet:
http://www.rohde-schwarz.com
Subject to change – Data without tolerance limits is not binding.
®
R&S
is a registered trademark of Rohde & Schwarz GmbH & Co. KG.
Trade names are trademarks of the owners.
®
1437.4445.00 | Version 02 | R&S
AREG800A |
The software makes use of several valuable open source software packages. For information, see the "Open Source Acknowledgment"
provided with the product.
The following abbreviations are used throughout this document: R&S
®
AREG800A is abbreviated as R&SAREG800A
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for R&S AREG800A
Summary of Contents for R&S AREG800A
- Page 1 1437.4445.00 | Version 02 | R&S AREG800A | The software makes use of several valuable open source software packages. For information, see the "Open Source Acknowledgment" provided with the product. ® The following abbreviations are used throughout this document: R&S AREG800A is abbreviated as R&SAREG800A...
-
Page 2: Table Of Contents
® R&S AREG800A Information on the current version and history Contents Information on the current version and history ....... 3 Version 5.00.057.63 ....................3 Modifications to the documentation ..........5 Firmware update ................. 6 Validity information ....................6 Downgrade ......................6 Updating Information .................... -
Page 3: Information On The Current Version And History
Information on the current version and history 1 Information on the current version and history To ensure the R&S AREG800A remains highly secure when being updated, only signed updates will be released. This will make it possible to detect all future unsigned or manipulated updates. - Page 4 ® R&S AREG800A Information on the current version and history Modified Functionality / Changed Behavior None Improvements None Known Issues Changing the Bandwidth Configuration in the System Operation Setup reactivates 937303 the disabled channels in Measurement Setup / Channel Config...
-
Page 5: Modifications To The Documentation
® R&S AREG800A Modifications to the documentation 2 Modifications to the documentation The current documentation is up-to-date. Release Notes 1437.4445.00 - 02... -
Page 6: Firmware Update
Firmware update 3 Firmware update 3.1 Validity information Device Order Number R&S® AREG800A Radar Echo Generator 1437.4400K02 3.2 Downgrade Kommentiert [BT11]: Generally it is not recommended to use an earlier version than the latest version available. In some cases the older versions do not support the hardware used in your instrument. -
Page 7: Updating The Firmware
Connect USB stick to PC and copy the update file to the root directory Wait until copy procedure has finished and remove USB stick ● Install new firmware on R&S®AREG800A: Connect USB stick to instrument ● Switch on instrument, if instrument is powered off ●... -
Page 8: Alternative Update Procedures
® R&S AREG800A Firmware update Risk of DUT damage During internal adjustments, the instrument temporarily applies high power at the RF output, High power at the RF output may destroy a connected DUT (device under test). Adjustments requiring external measurement equipment are not affected by the firmware update and need not to be performed. - Page 9 When finished, close Nero and disconnect external USB CD/DVD drive Install new firmware on R&S®AREG800A ● Instrument must be switched off Connect the external USB CD/DVD drive to the R&S®AREG800A ● ● Switch on Instrument The instrument boots from external drive ●...
- Page 10 ® R&S AREG800A Firmware update If the CD refuses to boot please ensure that you have burned the ISO-image as an “image” and not as a single file. Check the CD regarding presence of several files. Release Notes 1437.4445.00 - 02...
-
Page 11: Customer Support
® R&S AREG800A Customer support 4 Customer support Technical support – where and when you need it For quick, expert help with any Rohde & Schwarz product, contact our customer support center. A team of highly qualified engineers provides support and works with you to find a solution to your query on any aspect of the operation, programming or applications of Rohde &...
