Technical Assistance - Valcom PagePac V-5335100 Quick Start Manual

TECHNICAL ASSISTANCE

When calling, have a VOM and a telephone test
set available and call from the job site. Call (540)
427-3900 and ask for PagePac Technical Sup-
port, or call (540) 427-6000 for Valcom 24-hour
Automated Support or visit our websites at
http://www.pagepac.com and www.valcom.com.
Capacities
Dimensions and
Weights
Electrical Relay
Contacts
Temperature Range: 0 to +40 deg. C (32 to 104 deg. F) operational
Humidity Range:
Altitude:
Environmental
Interconnect Cable
Technical Manuals Online! - http://www.tech-man.com Technical Manuals Online! - http://www.tech-man.com
Table 2. Z.E.U. Specifications
Each Z.E.U. connects up to 16 zones of audio output (including talkback), contact
closure outputs or inputs.
Height: 1.75" (4.4 cm)
Width: 16" (40.64 cm); 19" (48.3 cm) with brackets attached
Depth: 6.9" (17.53 cm)
Weight: 3.0 lbs (1.35 kg)
Control Contact Closure: Contacts are rated at 120VAC/50VDC at 1 Amp
Audio Zone: Contacts are rated at 2 Amps
-40 to +66 deg. C (-40 to +150 deg. F) storage and shipment
5 to 95% (non-condensing) storage/shipment and operation
Sea level to 10,000 ft. operational (1048 to 648 millibars) 40,000 ft. max. shipment
Locate in an area free of excess moisture, corrosive gases, dust, and chemicals
8-position, 5 Amp contact rating, locking, keyed, 22 AWG wire, housing material
94V-2, providing 70.0 Vrms (4), common ground, +17VDC, Serial Data and Clock Data

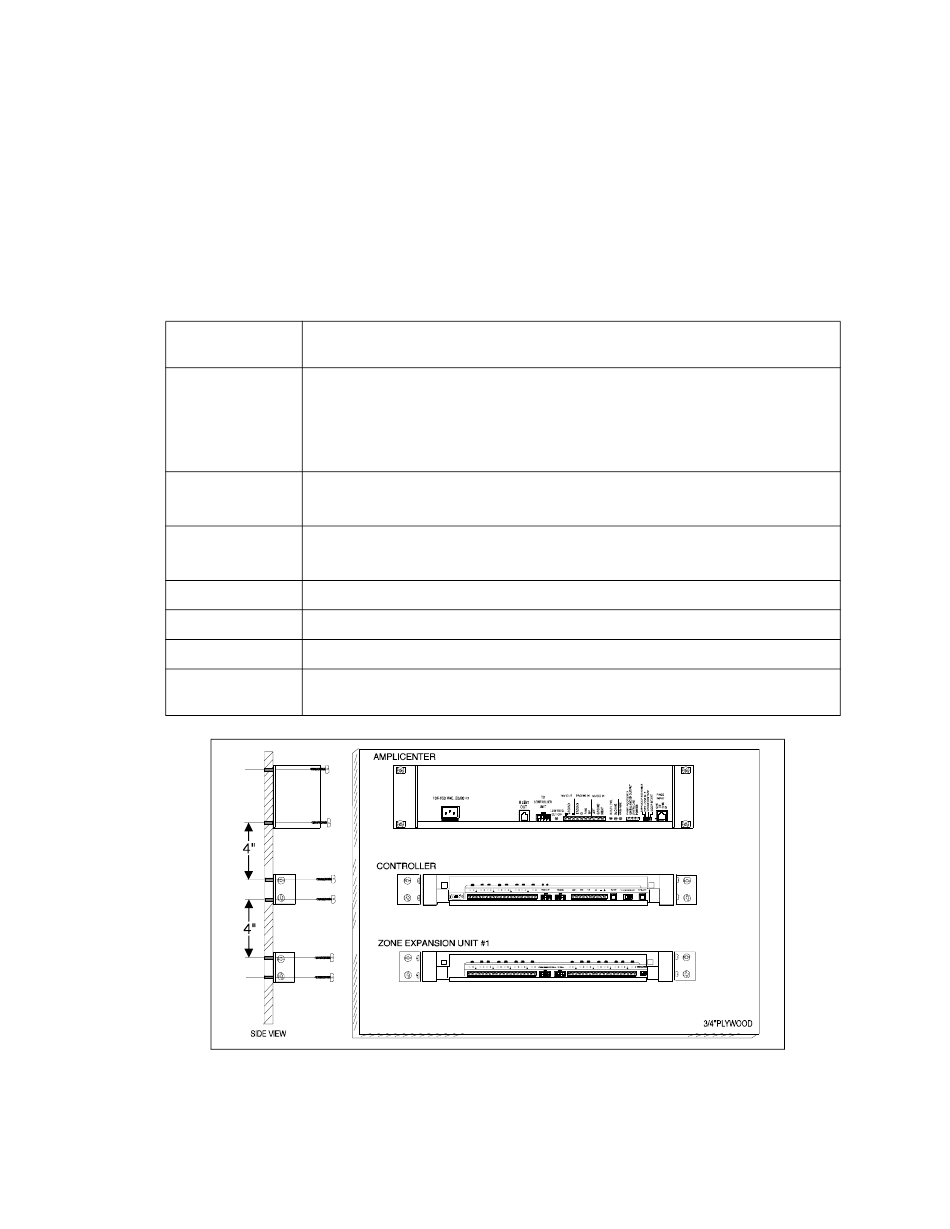

Figure 1. Wall Mounted Hardware
firealarmresources.com
Should repairs be necessary, attach a tag to the
unit clearly stating company name, address,
phone number, contact person, and the nature of
the problem. Send the unit to:
PagePac
Valcom, Inc.
5614 Hollins Road
Roanoke, VA 24019-5056
3
®
Repair Dept.
947187
