4. Do not replace the plastic cover until final
power adjustments have been made.
FINAL POWER ADJUSTMENTS
Ensure that the speaker is set to its lowest setting
(this will prevent an excessively loud page when
first used). While a page is in process, adjust the
volume control with a screwdriver. Turn clockwise
to increase the volume (see Table 1).
TECHNICAL ASSISTANCE
When calling, have a VOM and a telephone test
set available and call from the job site. Call (540)
427-3900 and ask for PagePac Technical Sup-
port, or call (540) 427-6000 for Valcom 24-hour
Automated Support or visit our websites at
http://www.pagepac.com and www.valcom.com.
Should repairs be necessary, attach a tag to the
unit clearly stating company name, address,
phone number, contact person, and the nature of
the problem. Send the unit to:
Roanoke, VA 24019-5056
Technical Manuals Online! - http://www.tech-man.com
Technical Manuals Online! - http://www.tech-man.com
®
PagePac
Repair Dept.
Valcom, Inc.
5614 Hollins Road
Table 1: SWITCH SETTINGS
SWITCH
SETTINGS
1
2
3
4
firealarmresources.com
ANDING
OT
ED)
TERMINALS
3.4 Vrms Input
IMPEDANCE
POWER
OHMS
WATTS
720
0.016
180
0.063
45
0.25
11.5
1.0
2
MOUNTING ON FLAT SURFACE
TAPERED
LOCKING
PIN
WING NUT

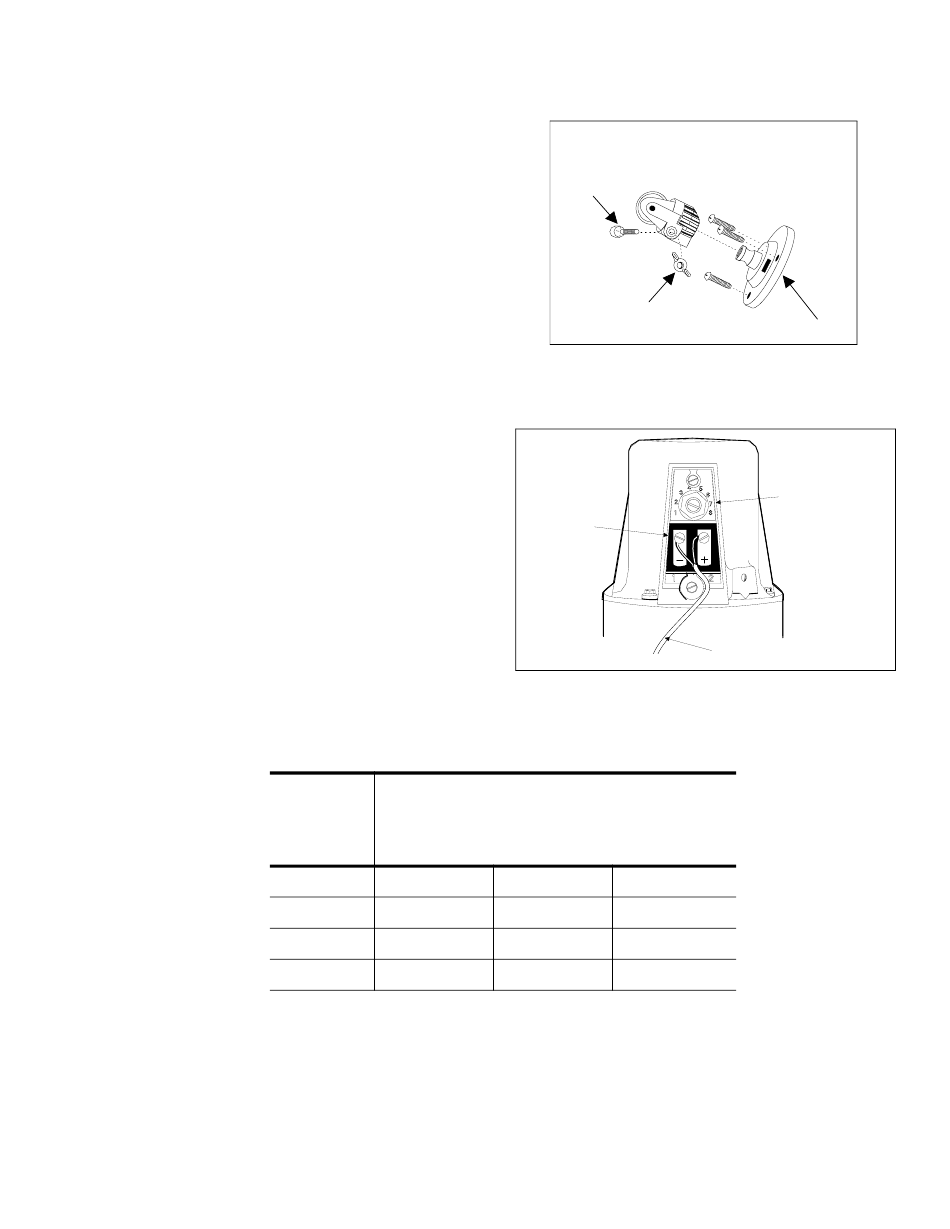

FIGURE 1
SPEAKER CABLE
FIGURE 2
SPL
DECIBELS
89
95
101
107
MOUNTING BRACKET
VOLUME LEVEL
C O NT RO L
(USE ONLY SETTINGS
1 TO 4)
947175
