1. Fasten spacers onto metal pems configuration (A) of backplane depending on the access controller
(Fig. 5, pg. 5).
2. Position access controller module over corresponding spacers and fasten screws into spacers (Fig. 5a, pg. 5).
3. Fasten THW1R backplane to Trove1R rack enclosure utilizing hardware (provided).
Access Controller Position Chart for the Following Models:
Honeywell Board
PRO32E1PS, PRO32IC, PRO32R2, PRO32IN, PRO32OUT, PW6K2E2PS, PW6K1IC,
PW6K1IN, PW6K1OUT, PW6K1R2.

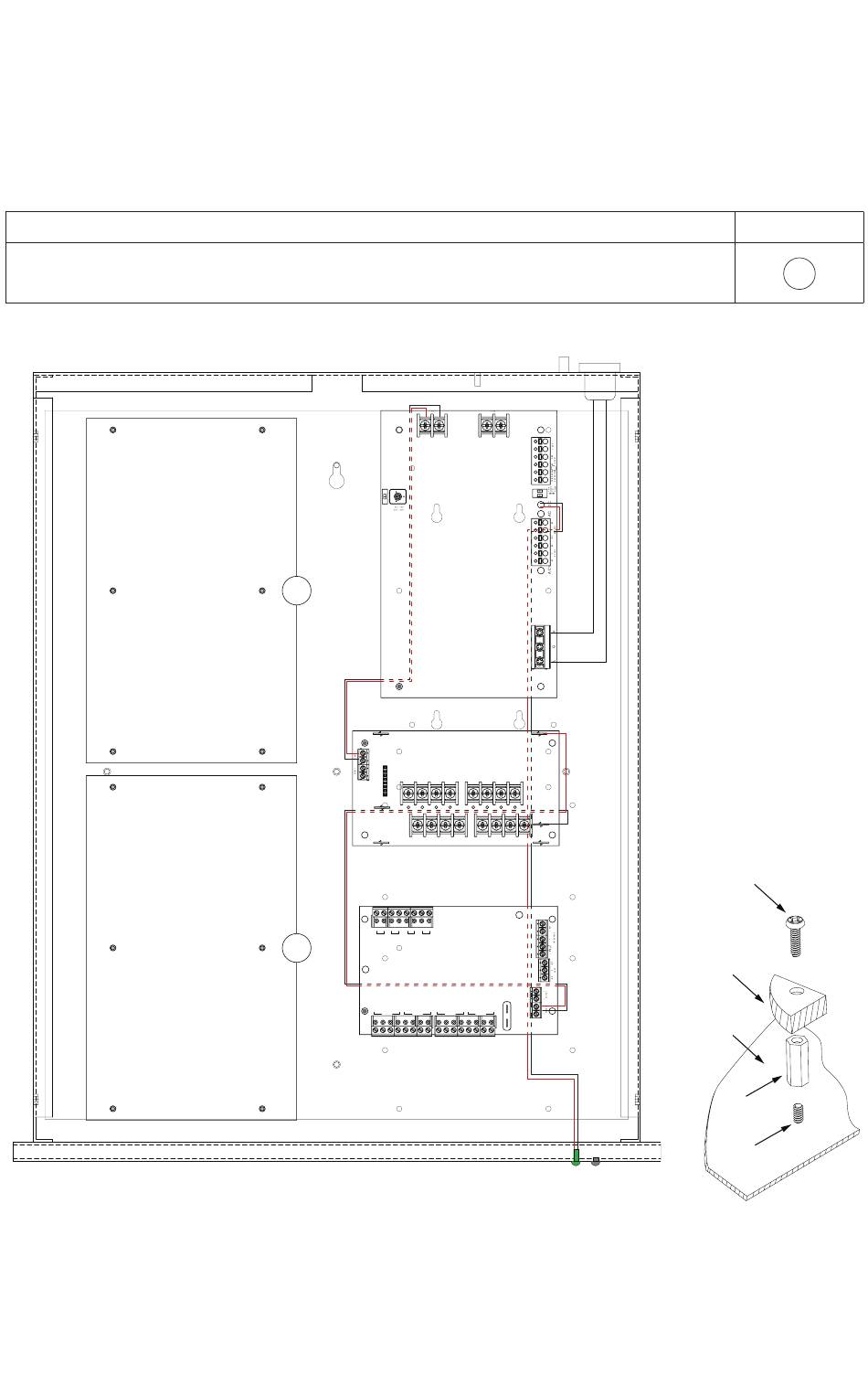

Fig. 5
T1RHW3F4 Installation Guide
T1RHW3F4:
Configuration of Honeywell Boards
ON
A
PWR1+
Altronix PDS8/VR6
P
OUT1
OUT2
COM(-)
N
PWR1+
1
2
VR6 is mounted
under PDS8
IN GND
IN GND
IN GND
IN GND
1
2
3
4
A
Altronix ACM4
NC
C
NO
COM
NC
C
NO
COM
OUTPUT 1
OUTPUT 2
To IEC connector
Altronix
eFlow6NB
PWR1+
P
OUT3
OUT4
OUT5
OUT6
OUT7
OUT8
N
COM(-)
3
4
5
6
7
8
PWR2+
Common Power Outputs (NEG)
RoHS
TRIGGER
INPUT
TRG
MAIN
NC
C
NO
COM
NC
C
NO
COM
OUTPUT 3
OUTPUT 4
ACM4
ACCESS POWER
CONTROLLER
To LED
lense
Pem Mounting
A
Fig. 5a
Pan Head Screw
Honeywell
Board
Backplane
Spacer
Pem
- 5 -
